RY31L-JD (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )5R

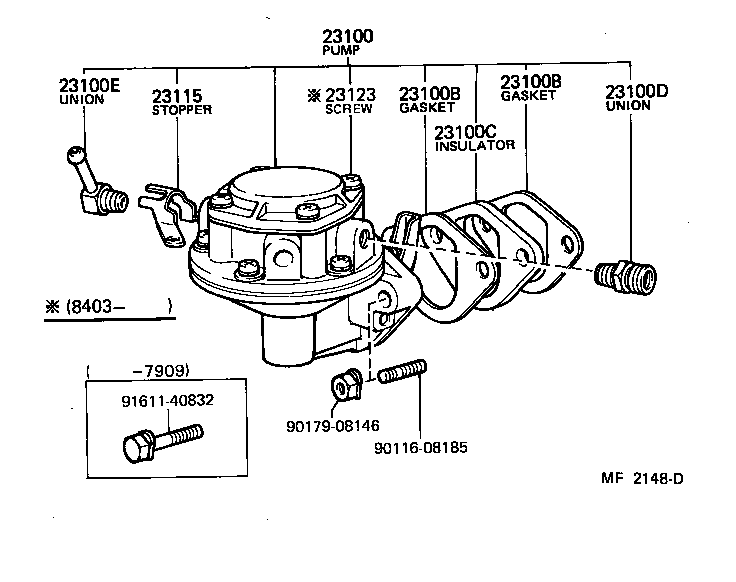

Click highlighted areas on diagram

diagram 23100 23100B 23100B 23100C 23100D 23100E 23115 23123 9011608185 9017908146 9161140832
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-49205

5R..RY31

 1
23100B - GASKET, FUEL PUMP
90923-05005

12R,5R..RY20,3#

 2
23100B - GASKET, FUEL PUMP
90923-05005

12R,5R..RY20,3#

 2
23100C - INSULATOR, FUEL PUMP
90923-06001

12R,5R..RY20,3#

 1
23100D - UNION, NIPPLE(FOR FUEL OUTLET)
90404-13105

5R..RY31

 1
23100E - UNION, NIPPLE(FOR FUEL INLET)
23116-31040

5R..RY31

 1
23115 - STOPPER, UNION NIPPLE
23115-44060

5R..RY31

 1
Common parts
90116-08185
90179-08146
91611-40832
