RY31L-JD (1979)
Toyota Toyoace
(7903-8308)L

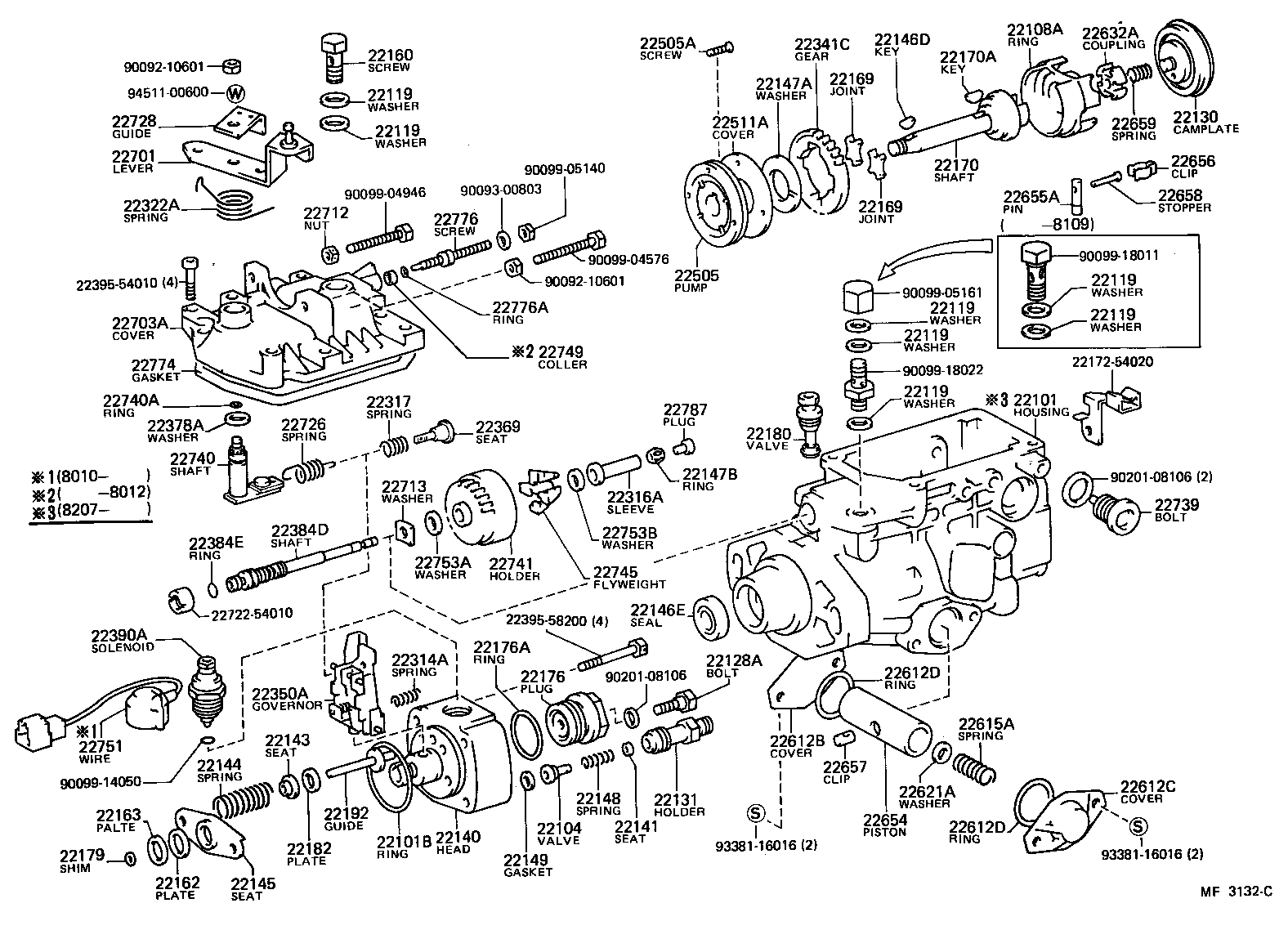

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101B - RING, O(FOR INJECTION PUMP HOUSING) | ||||
| 90099-14053 |
L,2L..LY20,3# |
1 | ||
| 22108A - RING SUB-ASSY, ROLLER | ||||
| 22108-54010 |
L,2L..LY20,3# |
1 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-77020 |
L,2L..LY20,3# |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-77020 |
L,2L..LY20,3# |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-77020 |
L,2L..LY20,3# |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-77020 |
L,2L..LY20,3# |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-77020 |
L,2L..LY20,3# |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-77020 |
L,2L..LY20,3# |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-77020 |
L,2L..LY20,3# |
5 | ||
| 22128A - BOLT, DISTRIBUTIVE HEAD | ||||
| 22128-54010 |
L,2L..LY20,3# |
1 | ||
| 22141 - SEAT, DELIVERY VALVE SPRING | ||||
| 22141-54010 |
L,2L..LY20,3# |
4 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-54010 |
L,2L..LY20,3# |
2 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-54010 |
L,2L..LY20,3# |
1 | ||
| 22146D - KEY(FOR DRIVE GEAR) | ||||
| 90099-13018 |
L,2L..LY20,3# |
1 | ||
| 22146E - SEAL(FOR DRIVE SHAFT) | ||||
| 90099-15028 |
L,2L..LY20,3# |
1 | ||
| 22147A - WASHER, DRIVE SHAFT | ||||
| 22161-54010 |
L,2L..LY20,3# |
1 | ||
| 22147B - RING, GOVERNOR SLEEVE | ||||
| 22147-54010 |
L,2L..LY20,3# |
1 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-54010 |
L,2L..LY20,3# |
4 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-54010 |
L,2L..LY20,3# |
4 | ||
| 22162 - PLATE, PLUNGER UPPER | ||||
| 22162-54010 |
L,2L..LY20,3# |
1 | ||
| 22170A - KEY(FOR DRIVE SHAFT) | ||||
| 90099-13017 |
L,2L..LY20,3# |
1 | ||
| 22176 - PLUG, DISTRIBUTIVE HEAD | ||||
| 22176-54020 |
L,2L..LY20,3# |
1 | ||
| 22176A - RING, O(FOR DISTRIBUTIVE HEAD PLUG) | ||||
| 90099-14052 |
L,2L..LY20,3# |
1 | ||
| 22179 - SHIM, PLUNGER ADJUSTING | ||||
| 22179-54013 |
L,2L..LY20,3# T=2.2,T=2.2 |
1 | ||
| 22179-54014 |
L,2L..LY20,3# T=2.3,T=2.3 |
1 | ||
| 22179-54010 |
L,2L..LY20,3# T=1.9,T=1.9 |
1 | ||
| 22179-54019 |
L,2L..LY20,3# T=2.8,T=2.8 |
1 | ||
| 22179-54016 |
L,2L..LY20,3# T=2.5,T=2.5 |
1 | ||
| 22179-54015 |
L,2L..LY20,3# T=2.4,T=2.4 |
1 | ||
| 22179-54018 |
L,2L..LY20,3# T=2.7,T=2.7 |
1 | ||
| 22179-54020 |
L,2L..LY20,3# T=2.9,T=2.9 |
1 | ||
| 22179-54011 |
L,2L..LY20,3# T=2.0,T=2.0 |
1 | ||
| 22179-54017 |
L,2L..LY20,3# T=2.6,T=2.6 |
1 | ||
| 22179-54012 |
L,2L..LY20,3# T=2.1,T=2.1 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-54010 |
L,2L..LY20,3# |
1 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22187-54010 |
L,2L..LY20,3# T=1.8,T=1.8 |
2 | ||
| 22183-54010 |
L,2L..LY20,3# T=0.8,T=0.8 |
2 | ||
| 22184-54010 |
L,2L..LY20,3# T=1.0,T=1.0 |
2 | ||
| 22186-54010 |
L,2L..LY20,3# T=1.5,T=1.5 |
2 | ||
| 22182-54010 |
L,2L..LY20,3# T=0.5,T=0.5 |
2 | ||
| 22188-54010 |
L,2L..LY20,3# T=2.0,T=2.0 |
2 | ||
| 22185-54010 |
L,2L..LY20,3# T=1.2,T=1.2 |
2 | ||
| 22192 - GUIDE SUB-ASSY, PLUNGER SPRING | ||||
| 22192-54010 |
L,2L..LY20,3# |
2 | ||
| 22314A - SPRING, LEVER SUPPORT | ||||
| 22314-54010 |
L,2L..LY20,3# |
2 | ||
| 22317 - SPRING, GOVERNOR DOMPER | ||||
| 22317-54010 |
L,2L..LY20,3# K=0.2,L=6.5 |
1 | ||
| 22341C - GEAR, GOVERNOR DRIVE | ||||
| 22341-54010 |
L,2L..LY20,3# |
1 | ||
| 22369 - SEAT, GOVERNOR SPRING | ||||
| 22369-54010 |
L,2L..LY20,3# |
1 | ||
| 22378A - WASHER, GOVERNOR THRUST | ||||
| 22378-54010 |
L,2L..LY20,3# |
1 | ||
| 22384E - RING, O(FOR GOVERNOR MAIN SHAFT) | ||||
| 90099-14049 |
L,2L..LY20,3# |
1 | ||
| 22505 - PUMP SUB-ASSY, FUEL FEED | ||||
| 22505-54010 |
L,2L..LY20,3# |
1 | ||
| 22511A - COVER, FEED PUMP | ||||
| 22511-54020 |
L,2L..LY20,3# |
1 | ||
| 22612B - COVER, TIMER | ||||
| 22612-54010 |
L,2L..LY20,3# |
1 | ||
| 22612C - COVER, TIMER | ||||
| 22612-54020 |
L,2L..LY20,3# |
1 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 90099-14051 |
L,2L..LY20,3# |
2 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 90099-14051 |
L,2L..LY20,3# |
2 | ||
| 22621A - WASHER, TIMER ADJUSTING | ||||
| 22624-54010 |
L,2L..LY20,3# T=0.2,T=0.2 |
2 | ||
| 22622-54010 |
L,2L..LY20,3# T=1.0,T=1.0 |
2 | ||
| 22621-54010 |
L,2L..LY20,3# T=0.5,T=0.5 |
2 | ||
| 22632A - COUPLING, INJECTION PUMP | ||||
| 22632-54010 |
L,2L..LY20,3# |
1 | ||
| 22654 - PISTON, TIMER | ||||
| 22654-54010 |
L,2L..LY20,3# |
1 | ||
| 22655A - PIN, TIMER SLIDE | ||||
| 22655-54010 |
L,2L..LY20,3# |
1 | ||
| 22656 - CLIP, TIMER | ||||
| 22656-54010 |
L,2L..LY20,3# |
1 | ||
| 22657 - CLIP, TIMER | ||||
| 22657-54010 |
L,2L..LY20,3# |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-54010 |
L,2L..LY20,3# NO.1 |
1 | ||
| 22703A - COVER SUB-ASSY, GOVERNOR | ||||
| 22703-54020 |
L,2L..LY20,3# |
1 | ||
| 22712 - NUT, ROCK | ||||
| 22775-77121 |
L,2L..LY20,3# |
1 | ||
| 22713 - WASHER, GOVERNOR GEAR ADJUSTING | ||||
| 22715-54010 |
L,2L..LY20,3# T=1.45,T=1.45 |
1 | ||
| 22713-54010 |
L,2L..LY20,3# T=1.05,T=1.05 |
1 | ||
| 22716-54010 |
L,2L..LY20,3# T=1.65,T=1.65 |
1 | ||
| 22714-54010 |
L,2L..LY20,3# T=1.25,T=1.25 |
1 | ||
| 22717-54010 |
L,2L..LY20,3# T=1.85,T=1.85 |
1 | ||
| 22728 - GUIDE, RETURN SPRING | ||||
| 22728-54010 |
L,2L..LY20,3# |
1 | ||
| 22739 - BOLT, GOVERNOR LINK SUPPORT | ||||
| 22739-54020 |
L,2L..LY20,3# |
2 | ||
| 22740A - RING, O(FOR GOVERNOR ADJUSTING SHAFT) | ||||
| 90099-14048 |
L,2L..LY20,3# |
1 | ||
| 22745 - FLYWEIGHT, DISTRIBUTIVE PUMP | ||||
| 22745-54010 |
L,2L..LY20,3# |
4 | ||
| 22753A - WASHER, FLYWEIGHT, NO.1 | ||||
| 22753-54010 |
L,2L..LY20,3# |
1 | ||
| 22753B - WASHER, FLYWEIGHT, NO.2 | ||||
| 22753-54290 |
L,2L..LY20,3# |
1 | ||
| 22774 - GASKET, GOVERNOR COVER | ||||
| 22774-54010 |
L,2L..LY20,3# |
1 | ||
| 22776A - RING, O(FOR SMOKE SET SCREW) | ||||
| 90099-14047 |
L,2L..LY20,3# |
1 | ||
| Common parts | ||||
| 22172-54020 | ||||
| 22395-54010 | ||||
| 22395-58200 | ||||
| 22722-54010 | ||||
| 90092-10601 | ||||
| 90093-00803 | ||||
| 90099-04576 | ||||
| 90099-04946 | ||||
| 90099-05140 | ||||
| 90099-05161 | ||||
| 90099-14050 | ||||
| 90099-18011 | ||||
| 90099-18022 | ||||
| 90201-08106 | ||||
| 93381-16016 | ||||
| 94511-00600 | ||||
