RY31L-JD (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )5R

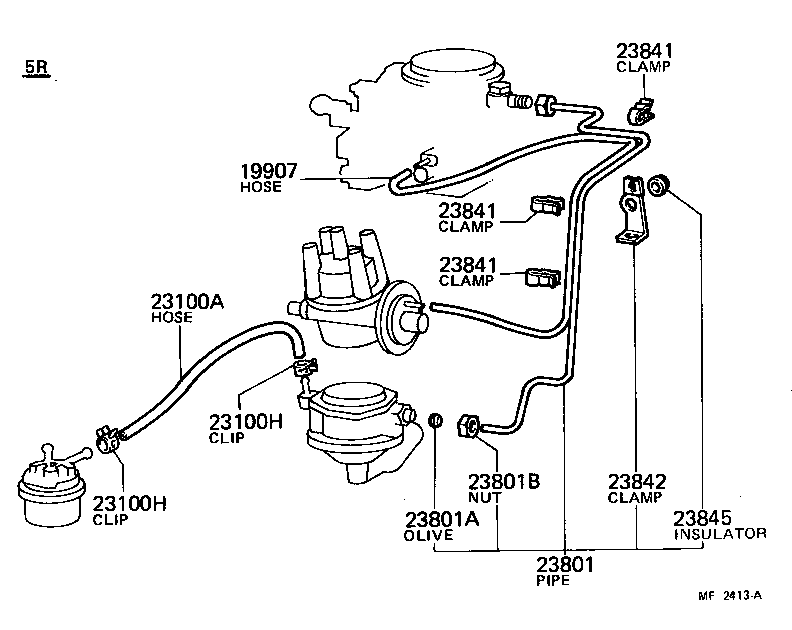

Click highlighted areas on diagram

diagram 19907 23100A 23100H 23100H 23801 23801A 23801B 23841 23841 23841 23842 23845
Part # Description Qty Price
19907 - HOSE, VACUUM, NO.1
95411-19995

5R..RY31

*H,L=750

 1
23100A - HOSE, FUEL
95332-06030

5R..RY31

*H,L=280

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

12R,5R..RY20,3#

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

12R,5R..RY20,3#

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23801-44051

5R..RY31

 1
23801A - OLIVE(FOR FUEL PIPE)
96395-71400

5R..RY31

 2
23801B - NUT, UNION(FOR FUEL PIPE)
90402-13041

5R..RY31

 2
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
90468-05025

5R..RY31

 4
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
90468-05025

5R..RY31

 4
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
90468-05025

5R..RY31

 4
23842 - CLAMP, FUEL PIPE(HOSE), NO.2
23841-44010

5R..RY31

 1
23845 - INSULATOR, FUEL PIPE
90480-11124

5R..RY31

 1
