RY31L-JD (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

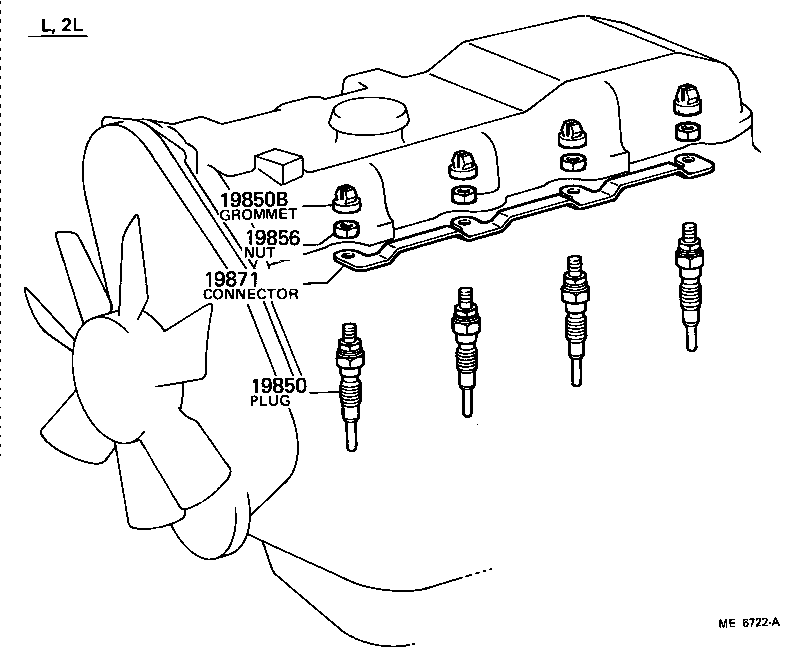

(7903- )L,2L

Click highlighted areas on diagram

diagram 19850 19850B 19856 19871
Part # Description Qty Price
19871 - CONNECTOR, GLOW PLUG NO.1
19871-54010

L,2L..LY20,3#

 1

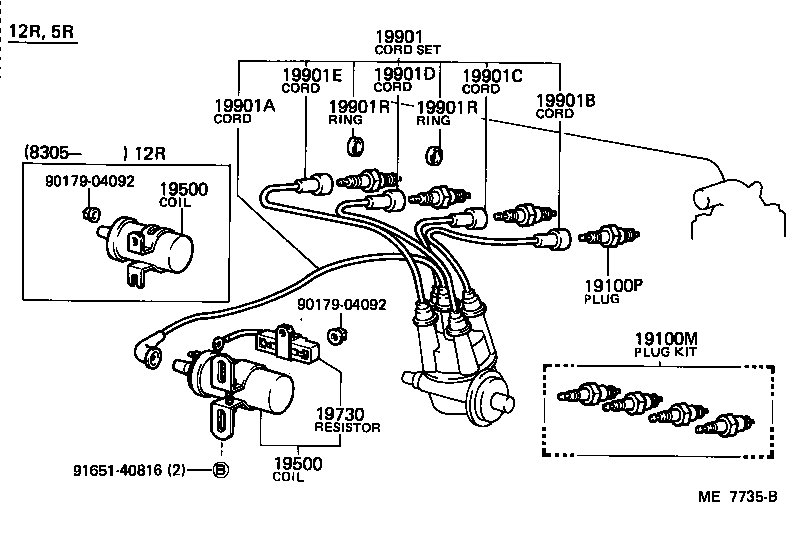

(7903- )12R,5R

Click highlighted areas on diagram

diagram 19100M 19100P 19500 19500 19730 19901 19901A 19901B 19901C 19901D 19901E 19901R 19901R 9017904092 9017904092 9165140816
Part # Description Qty Price
19100M - PLUG KIT, SPARK
04195-34110

12R,5R..RY20,3#

W16EX-U

 1
19100P - PLUG, SPARK
90919-01059

12R,5R..RY20,3#

W16EX-U,W16EX-U

 4
19500 - COIL ASSY, IGNITION
90919-02104

12R,5R..RY20,3#

 1
19500 - COIL ASSY, IGNITION
90919-02104

12R,5R..RY20,3#

 1
19730 - RESISTOR, IGNITION COIL
90919-04032

12R,5R..RY20,3#

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21206

5R..RY31

 1
19901A - CORD, COIL RESISTIVE
90919-13114

5R..RY31

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12146

5R..RY31

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12145

5R..RY31

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12145

5R..RY31

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12146

5R..RY31

 1
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

12R,5R..RY20,3#

 2
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

12R,5R..RY20,3#

 2
Common parts
90179-04092
91651-40816
