RY31L-JD (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )12R,5R..125,15T

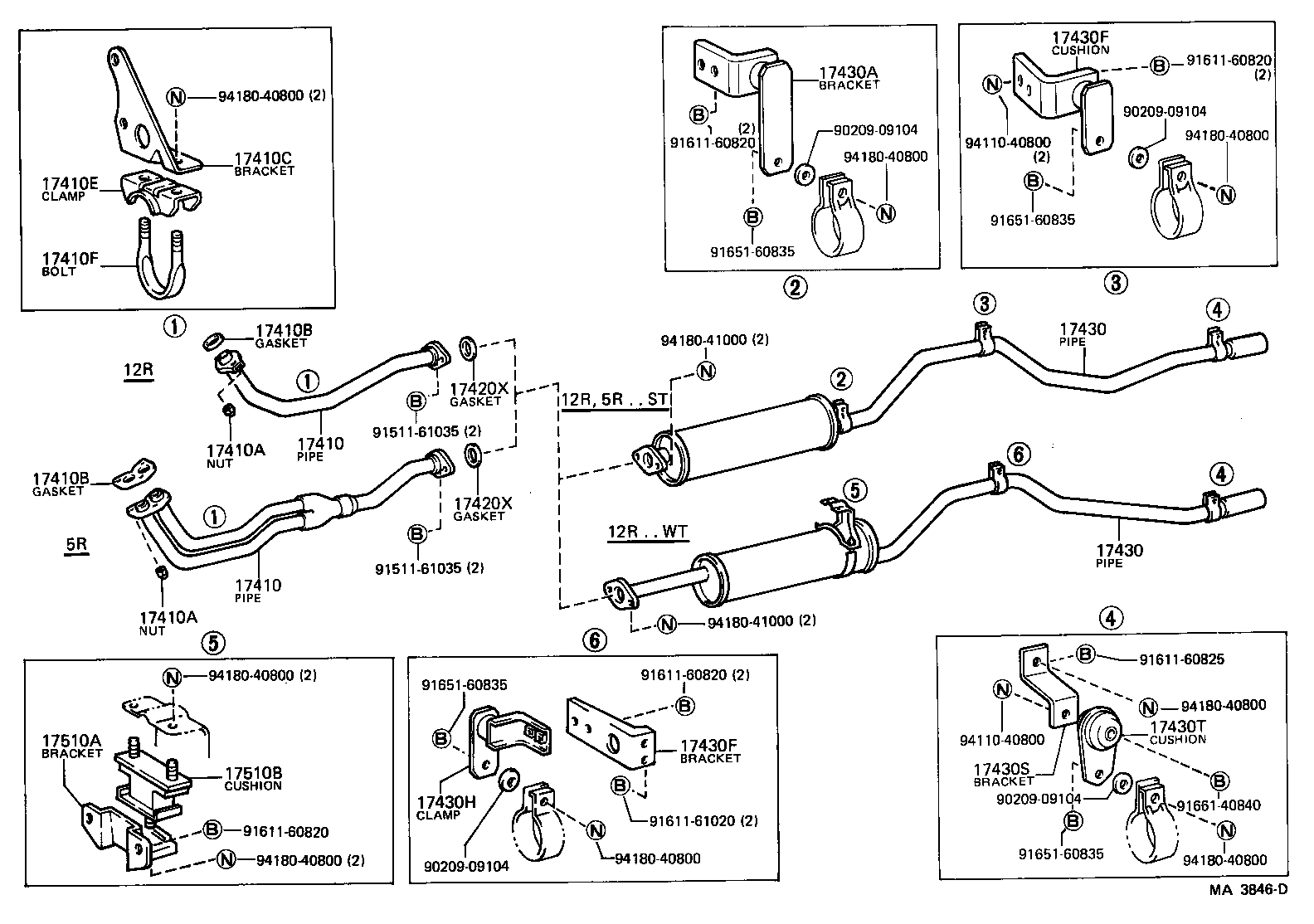

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17410C 17410E 17410F 17420X 17420X 17430 17430 17430A 17430F 17430F 17430H 17430S 17430T 17510A 17510B 9020909104 9020909104 9020909104 9020909104 9151161035 9151161035 9161160820 9161160820 9161160820 9161160820 9161160825 9161161020 9165160835 9165160835 9165160835 9165160835 9166140840 9411040800 9411040800 9418040800 9418040800 9418040800 9418040800 9418040800 9418040800 9418040800 9418040800 9418041000 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-44110

5R..RY31..15T

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-44110

5R..RY31..15T

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10118

L,2L,5R..LY20,3#,RY31

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10118

L,2L,5R..LY20,3#,RY31

 3
17410B - GASKET, EXHAUST PIPE
17451-41010

5R..RY31

 1
90917-06004

L,12R,2J,2L..JY30,LY20,3#,RY20,30

 1
17410B - GASKET, EXHAUST PIPE
17451-41010

5R..RY31

 1
90917-06004

L,12R,2J,2L..JY30,LY20,3#,RY20,30

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-44070

12R,5R..RY20,3#

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04021

L,12R,2J,2L..JY30,LY20,3#,RY20,30

 1
90917-04005

5R..RY31

 1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
90117-08205

L,12R,2J,2L..JY30,LY20,3#,RY20,30

 1
90117-08013

5R..RY31

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

5R..RY31..15T

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

5R..RY31..15T

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31200

5R..RY31..15T

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31200

5R..RY31..15T

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17561-31100

5R..RY31..15T

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17563-31070

5R..RY31..15T

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17563-31070

5R..RY31..15T

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17573-44020

L,12R,2L..LY20,3#,RY20,30

 1
17573-44020

5R..RY31..15T

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
90917-08004

L,12R,2J,5R..JY30,LY20,30,RY20,3#

 1
Common parts
90209-09104
91511-61035
91611-60820
91611-60825
91611-61020
91651-60835
91661-40840
94110-40800
94180-40800
94180-41000

(7903-8201)L

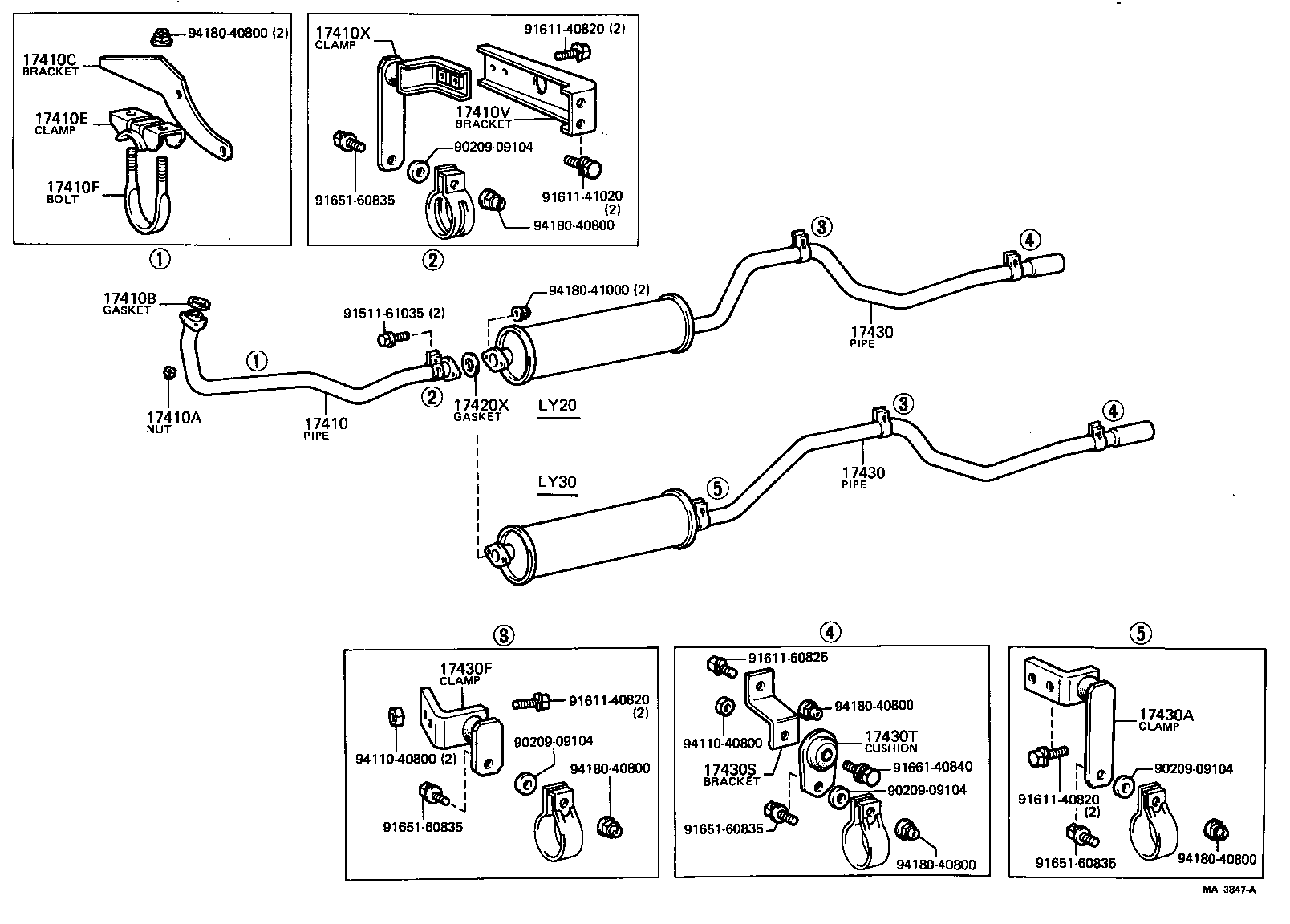

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17410E 17410F 17410V 17410X 17420X 17430 17430 17430A 17430F 17430S 17430T 9020909104 9020909104 9020909104 9020909104 9151161035 9161140820 9161140820 9161140820 9161141020 9161160825 9165160835 9165160835 9165160835 9165160835 9166140840 9411040800 9411040800 9418040800 9418040800 9418040800 9418040800 9418040800 9418040800 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-44110

5R..RY31..15T

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10118

L,2L,5R..LY20,3#,RY31

 3
17410B - GASKET, EXHAUST PIPE
17451-41010

5R..RY31

 1
90917-06004

L,12R,2J,2L..JY30,LY20,3#,RY20,30

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-44070

12R,5R..RY20,3#

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04021

L,12R,2J,2L..JY30,LY20,3#,RY20,30

 1
90917-04005

5R..RY31

 1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
90117-08205

L,12R,2J,2L..JY30,LY20,3#,RY20,30

 1
90117-08013

5R..RY31

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17572-54010

L,2L..LY20,3#

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

5R..RY31..15T

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31200

5R..RY31..15T

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31200

5R..RY31..15T

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17561-31100

5R..RY31..15T

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17563-31070

5R..RY31..15T

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17573-44020

5R..RY31..15T

 1
17573-44020

L,12R,2L..LY20,3#,RY20,30

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
90917-08004

L,12R,2J,5R..JY30,LY20,30,RY20,3#

 1
Common parts
90209-09104
91511-61035
91611-40820
91611-41020
91611-60825
91651-60835
91661-40840
94110-40800
94180-40800
94180-41000
