RY31L-JD (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )5R

Click highlighted areas on diagram

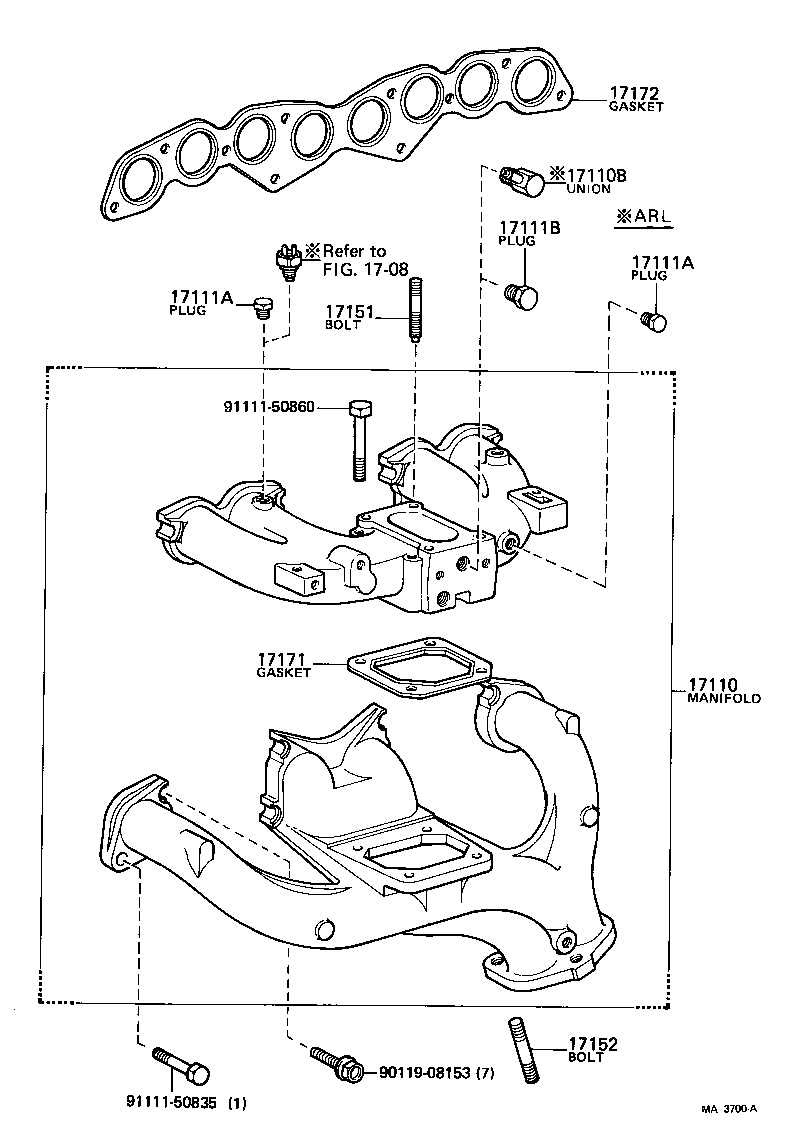

diagram 1708 17110 17110B 17111A 17111A 17111B 17151 17152 17171 17172 9011908153 9111150835 9111150860
Part # Description Qty Price
17110 - MANIFOLD ASSY
17110-44074

5R..RY31

 1
17111A - PLUG, NO.1
90345-51025

5R..RY31

 2
17111A - PLUG, NO.1
90345-51025

5R..RY31

 2
17111B - PLUG, NO.2
90345-52013

5R..RY31

W/O PCV

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08276

5R..RY31

L=41,S=11&17

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10042

12R,5R..RY20,3#

L=37,S=13&24

 3
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-44010

5R..RY31

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-44011

5R..RY31

 1
Common parts
90119-08153
91111-50835
91111-50860
Linked diagrams
1708

(7903- )L,2L

Click highlighted areas on diagram

diagram 17111 17141 17152 17159 17159 17173 17177 9011910237 9017008184 9017010199 9017908040 9020110283 9161160822 9162160825 9461110800
Part # Description Qty Price
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10042

12R,5R..RY20,3#

L=37,S=13&24

 3
Common parts
90119-10237
90170-08184
90170-10199
90179-08040
90201-10283
91611-60822
91621-60825
94611-10800
