RY31L-JD (1979)
Toyota Toyoace
Production
Mar 1979
-
Jan 1982
Engine
5R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903- )5R

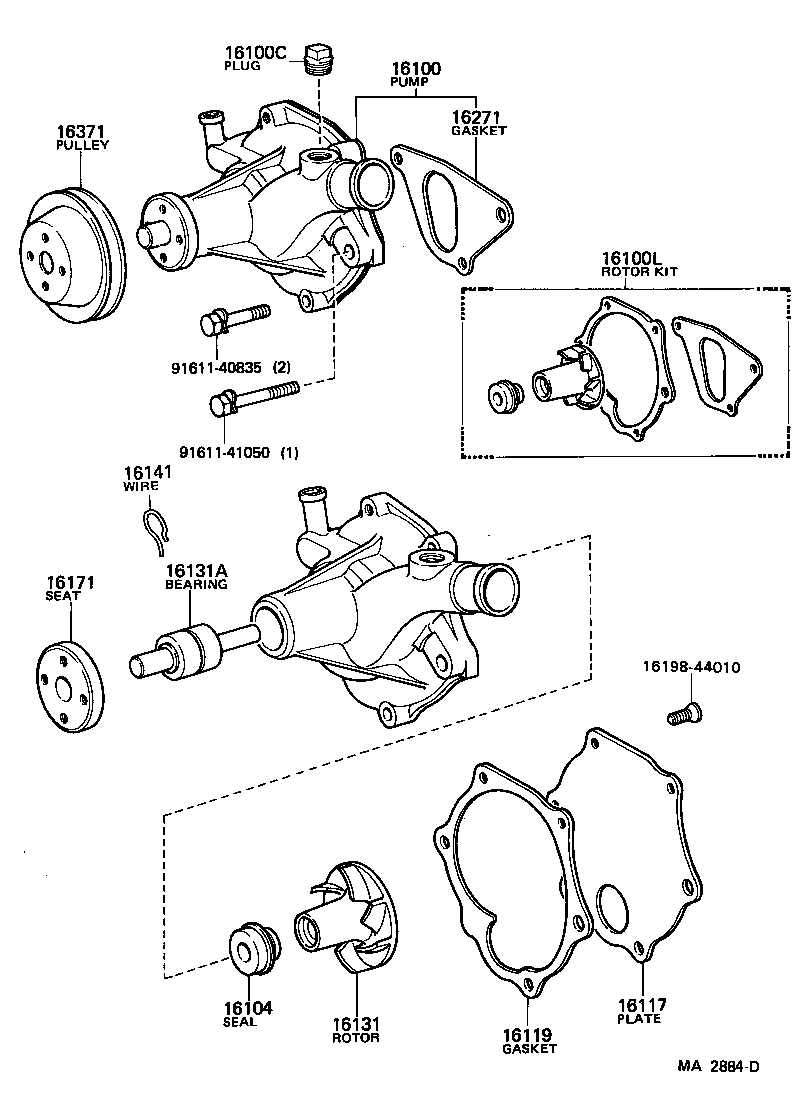

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-49415 |
5R..RY31..GEN |
1 | ||
| 16100C - PLUG, W/HEAD TAPER SCREW | ||||
| 90345-54004 |
12R,5R..RY20,3# W/O HEATER |
1 | ||
| 16100L - ROTOR KIT, WATER PUMP | ||||
| 04162-44020 |
5R..RY31 |
1 | ||
| 16104 - SEAL SET, WATER PUMP | ||||
| 16104-41110 |
12R,5R..RY20,3# |
1 | ||
| 16117 - PLATE, WATER PUMP | ||||
| 16117-44010 |
5R..RY31 |
1 | ||
| 16119 - GASKET, WATER PUMP BODY | ||||
| 16119-44010 |
5R..RY31 |
1 | ||
| 16131 - ROTOR, WATER PUMP | ||||
| 16131-44070 |
5R..RY31 |
1 | ||
| 16131A - BEARING, WATER PUMP | ||||
| 90369-30063 |
5R..RY31 |
1 | ||
| 16141 - WIRE, WATER PUMP BEARING RETAINING | ||||
| 16141-60010 |
5R..RY31 |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-24031 |
12R,5R..RY20,3# |
1 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-44010 |
5R..RY31 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-44010 |
5R..RY31 |
1 | ||
| Common parts | ||||
| 16198-44010 | ||||
| 91611-40835 | ||||
| 91611-41050 | ||||
(7903- )L,2L

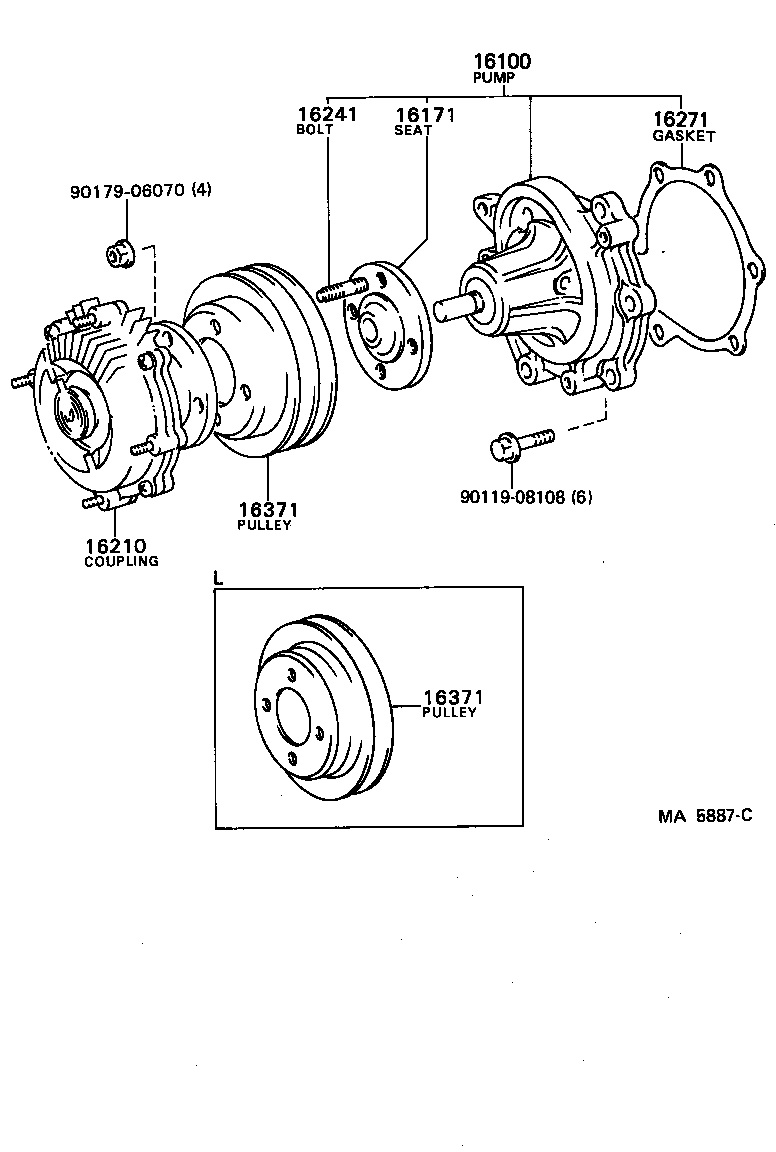

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-49415 |
5R..RY31..GEN |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-24031 |
12R,5R..RY20,3# |
1 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-44010 |
5R..RY31 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-44010 |
5R..RY31 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-44010 |
5R..RY31 |
1 | ||
| Common parts | ||||
| 90119-08108 | ||||
| 90179-06070 | ||||
