RY30R-JDB (1979)
Toyota Toyoace
(7903- )125,15T

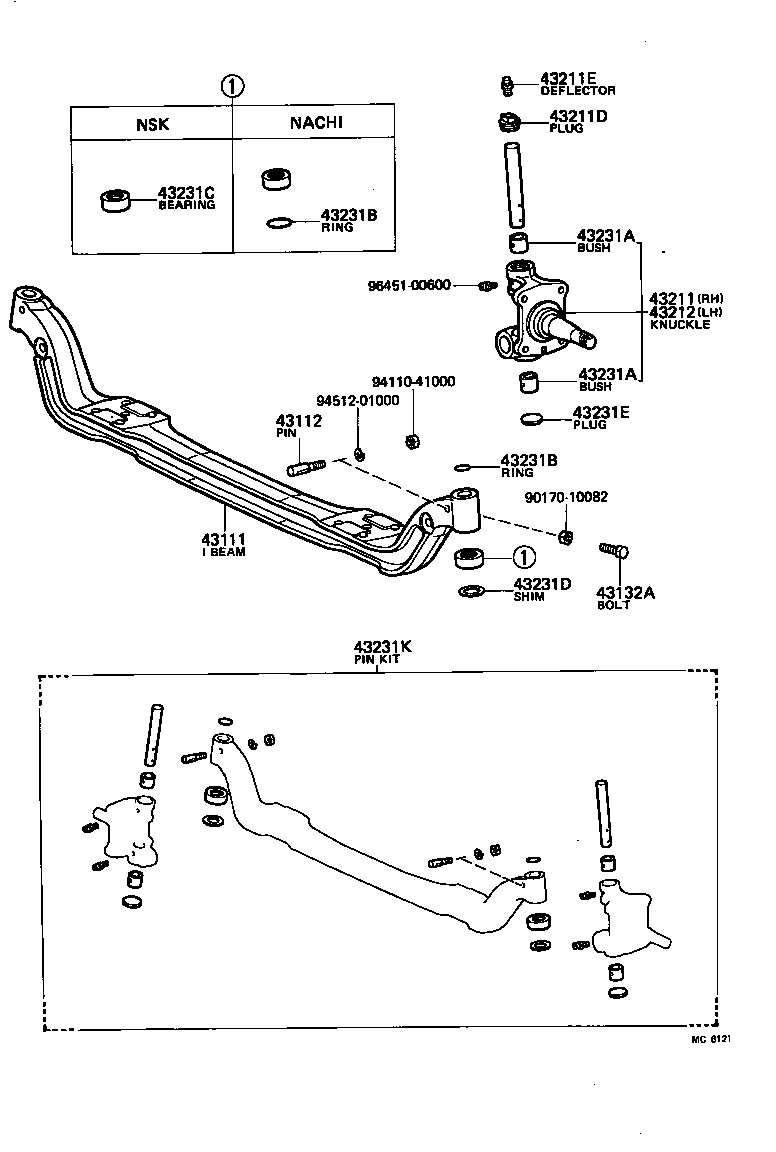

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43111 - I BEAM, FRONT AXLE | ||||
| 43111-25020 |
LY20,3#,RY20,3#..125,15T |
1 | ||
| 43112 - PIN, KING PIN LOCK | ||||
| 43112-25010 |
LY20,3#,RY20,3#..125,15T |
2 | ||
| 43132A - BOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT) | ||||
| 90106-10006 |
JY30,LY20,30,RY20,3# |
2 | ||
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43201-25020 |
LY20,30,RY20,3#..125,15T |
1 | ||
| 43201-25030 |
LY20,30,RY20,3#..125,15T |
1 | ||
| 43211D - PLUG (FOR STEERING KNUCKLE) | ||||
| 90345-32001 |
LY20,3#,RY20,3#..125,15T UPR |
2 | ||
| 43211E - DEFLECTOR, DUST (FOR STEERING KNUCKLE) | ||||
| 90930-03048 |
JY30,LY20,30,RY20,3# |
2 | ||
| 90930-03048 |
LY20,30,RY20,3#..125,15T |
2 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43202-25010 |
LY20,30,RY20,3#..125,15T |
1 | ||
| 43202-25020 |
LY20,30,RY20,3#..125,15T |
1 | ||
| 43231A - BUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUS | ||||
| 90999-73084 |
LY20,3#,RY20,3#..125,15T LWR |
2 | ||
| 90999-73085 |
LY20,3#,RY20,3#..125,15T UPR |
2 | ||
| 43231A - BUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUS | ||||
| 90999-73084 |
LY20,3#,RY20,3#..125,15T LWR |
2 | ||
| 90999-73085 |
LY20,3#,RY20,3#..125,15T UPR |
2 | ||
| 43231B - SEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN) | ||||
| 96710-02037 |
LY20,30,RY20,3#..125,15T OD=41.5,ID=37.2,NACHI |
2 | ||
| 96710-01025 |
LY20,30,RY20,3#..125,15T OD=28,ID=24.7 |
2 | ||
| 43231B - SEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN) | ||||
| 96710-02037 |
LY20,30,RY20,3#..125,15T OD=41.5,ID=37.2,NACHI |
2 | ||
| 96710-01025 |
LY20,30,RY20,3#..125,15T OD=28,ID=24.7 |
2 | ||
| 43231C - BEARING (FOR STEERING KNUCKLE KING PIN) | ||||
| 90367-25002 |
LY20,3#,RY20,3#..125,15T |
2 | ||
| 43231D - SHIM (FOR KING PIN) | ||||
| 90564-25126 |
LY20,3#,RY20,3#..125,15T T=0.05,T=0.05 |
2 | ||
| 90564-25127 |
LY20,3#,RY20,3#..125,15T T=0.25,T=0.25 |
2 | ||
| 90564-25125 |
LY20,3#,RY20,3#..125,15T T=0.10,T=0.10 |
2 | ||
| 43231E - PLUG (FOR STEERING KNUCKLE) | ||||
| 96412-03500 |
LY20,3#,RY20,3#..125,15T |
2 | ||
| 43231K - PIN KIT, STEERING KNUCKLE KING | ||||
| 04431-25010 |
LY20,3#,RY20,3#..125,15T |
1 | ||
| Common parts | ||||
| 90170-10082 | ||||
| 94110-41000 | ||||
| 94512-01000 | ||||
| 96451-00600 | ||||
