RY30R-JDB (1979)

Toyota Toyoace

Production Mar 1979 - Aug 1983
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

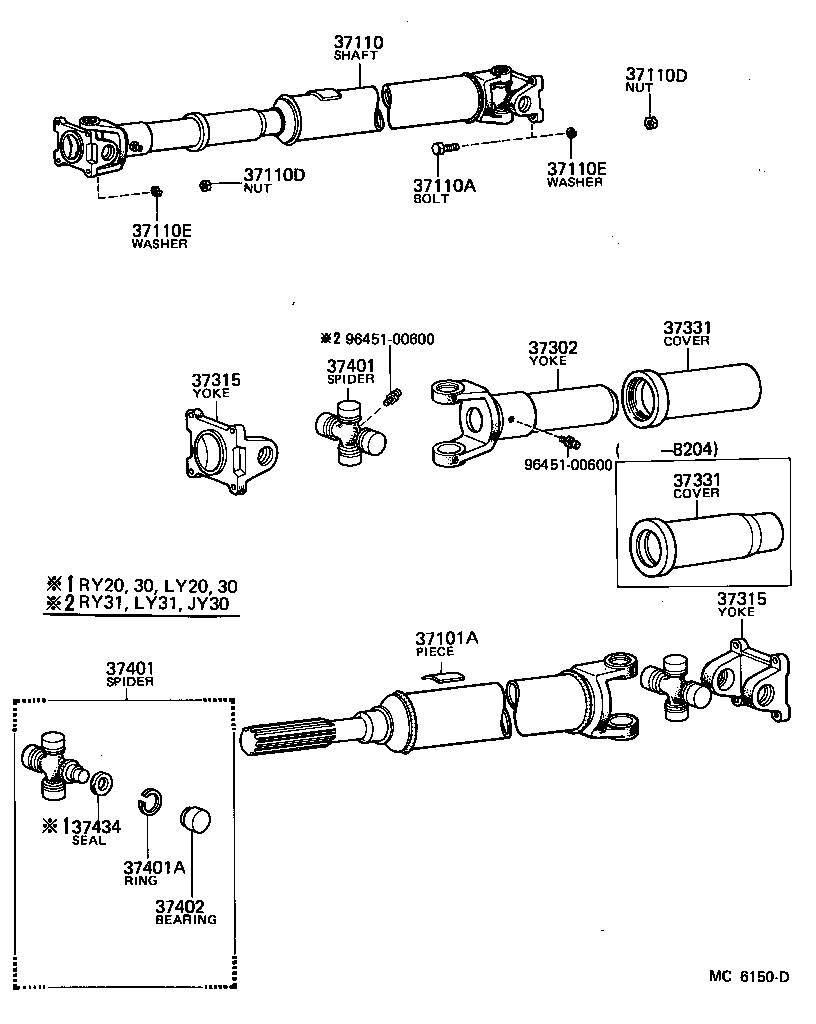

Click highlighted areas on diagram

diagram 37101A 37110 37110A 37110D 37110D 37110E 37110E 37302 37315 37315 37331 37331 37401 37401 37401A 37402 37434 9645100600 9645100600
Part # Description Qty Price
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90937-01012

LY20,30,RY20,30

30G

 1
90937-01011

LY20,30,RY20,30

20G

 1
90937-01022

LY20,30,RY20,30

5G,5G

 1
90937-01010

LY20,30,RY20,30

10G

 1
37110 - SHAFT ASSY, PROPELLER
37110-25220

RY30

L=1226

 1
37110A - BOLT (FOR PROPELLER SHAFT)
90101-08214

LY20,30,RY20,30

*8-1.25PX25-12

 4
90101-08082

LY30,RY20,30

*8-1.25PX25-12

 4
37110D - NUT (FOR PROPELLER SHAFT)
90170-08015

JY30,RY20,30

 8
94110-50800

LY20,30,RY20,30

 8
37110D - NUT (FOR PROPELLER SHAFT)
90170-08015

JY30,RY20,30

 8
94110-50800

LY20,30,RY20,30

 8
37110E - WASHER (FOR PROPELLER SHAFT)
94512-00800

LY20,30,RY20,30

 8
37110E - WASHER (FOR PROPELLER SHAFT)
94512-00800

LY20,30,RY20,30

 8
37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37302-25010

LY20,30,RY20,30

 1
37315 - YOKE, UNIVERSAL JOINT FLANGE
37315-35021

LY20,30,RY20,30

 2
37315 - YOKE, UNIVERSAL JOINT FLANGE
37315-35021

LY20,30,RY20,30

 2
37331 - COVER, SLIDING SHAFT DUST
37305-25010

JY30,LY20,30,RY20,3#

 1
37331 - COVER, SLIDING SHAFT DUST
37305-25010

JY30,LY20,30,RY20,3#

 1
37401 - SPIDER KIT, UNIVERSAL JOINT
04371-25010

LY20,30,RY20,30

 2
37401 - SPIDER KIT, UNIVERSAL JOINT
04371-25010

LY20,30,RY20,30

 2
37401A - RING, HOLE SNAP (FOR SPIDER BEARING)
90521-29072

LY20,30,RY20,30

T=2.475-2.525,T=2.5

 8
90521-29070

LY20,30,RY20,30

T=2.375-2.425,T=2.4

 8
90521-29071

LY20,30,RY20,30

T=2.425-2.475,T=2.45

 8
37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
37402-25020

LY20,30,RY20,30

 8
37434 - SEAL, UNIVERSAL JOINT SPIDER BEARING
37434-25010

LY20,30,RY20,30

 8
Common parts
96451-00600
