RY30L-JDB (1979)
Toyota Toyoace
Production
Mar 1979
-
Aug 1983
Engine
12R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

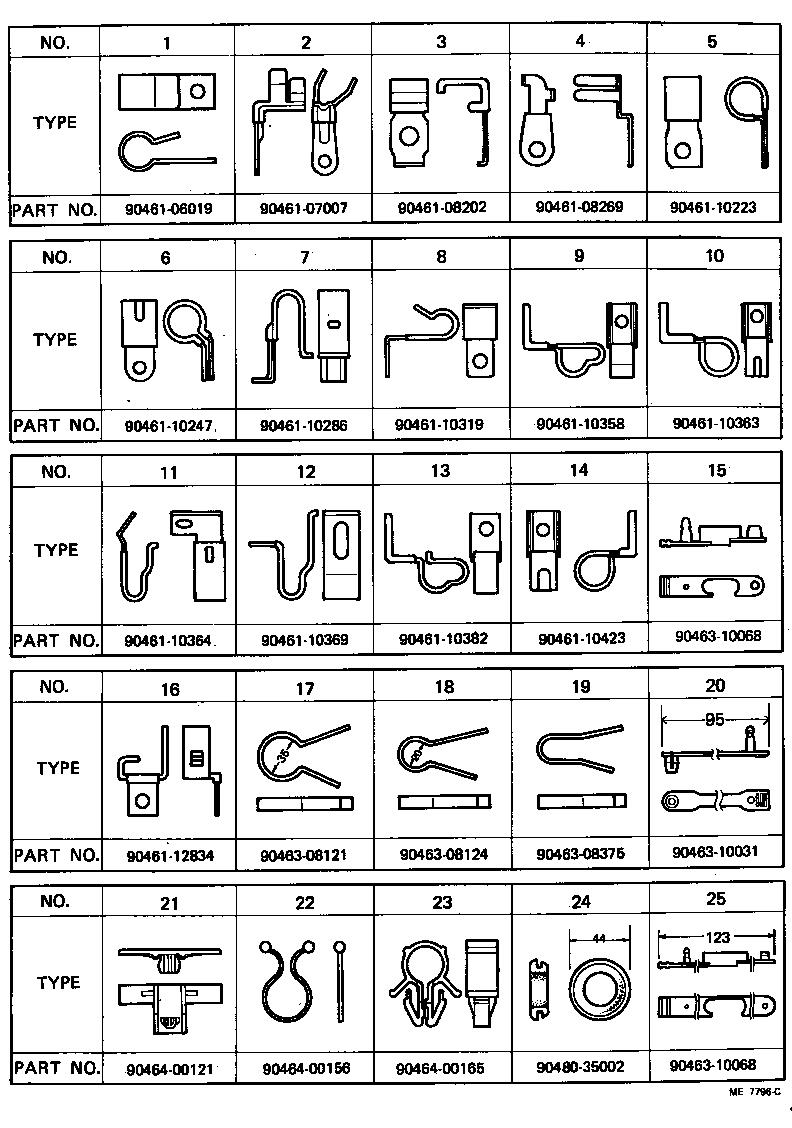

(7903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90461-06019 | ||||
| 90461-07007 | ||||
| 90461-08202 | ||||
| 90461-08269 | ||||
| 90461-10223 | ||||
| 90461-10247 | ||||
| 90461-10286 | ||||
| 90461-10319 | ||||
| 90461-10358 | ||||
| 90461-10363 | ||||
| 90461-10364 | ||||
| 90461-10369 | ||||
| 90461-10382 | ||||
| 90461-10423 | ||||
| 90461-12834 | ||||
| 90463-08121 | ||||
| 90463-08124 | ||||
| 90463-08375 | ||||
| 90463-10031 | ||||
| 90463-10068 | ||||
| 90464-00121 | ||||
| 90464-00156 | ||||
| 90464-00165 | ||||
| 90480-35002 | ||||

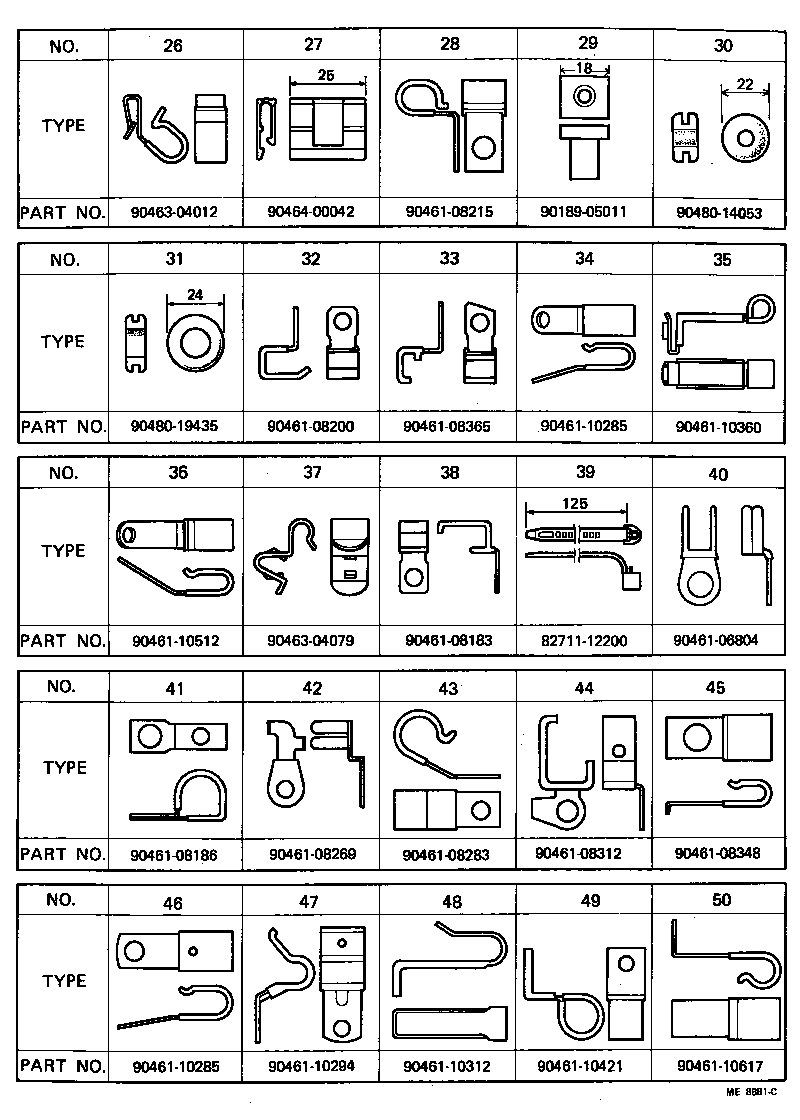

(7903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 90189-05011 | ||||
| 90461-06804 | ||||
| 90461-08183 | ||||
| 90461-08186 | ||||
| 90461-08200 | ||||
| 90461-08215 | ||||
| 90461-08269 | ||||
| 90461-08283 | ||||
| 90461-08312 | ||||
| 90461-08348 | ||||
| 90461-08365 | ||||
| 90461-10285 | ||||
| 90461-10294 | ||||
| 90461-10312 | ||||
| 90461-10360 | ||||
| 90461-10421 | ||||
| 90461-10512 | ||||
| 90461-10617 | ||||
| 90463-04012 | ||||
| 90463-04079 | ||||
| 90464-00042 | ||||
| 90480-14053 | ||||
| 90480-19435 | ||||

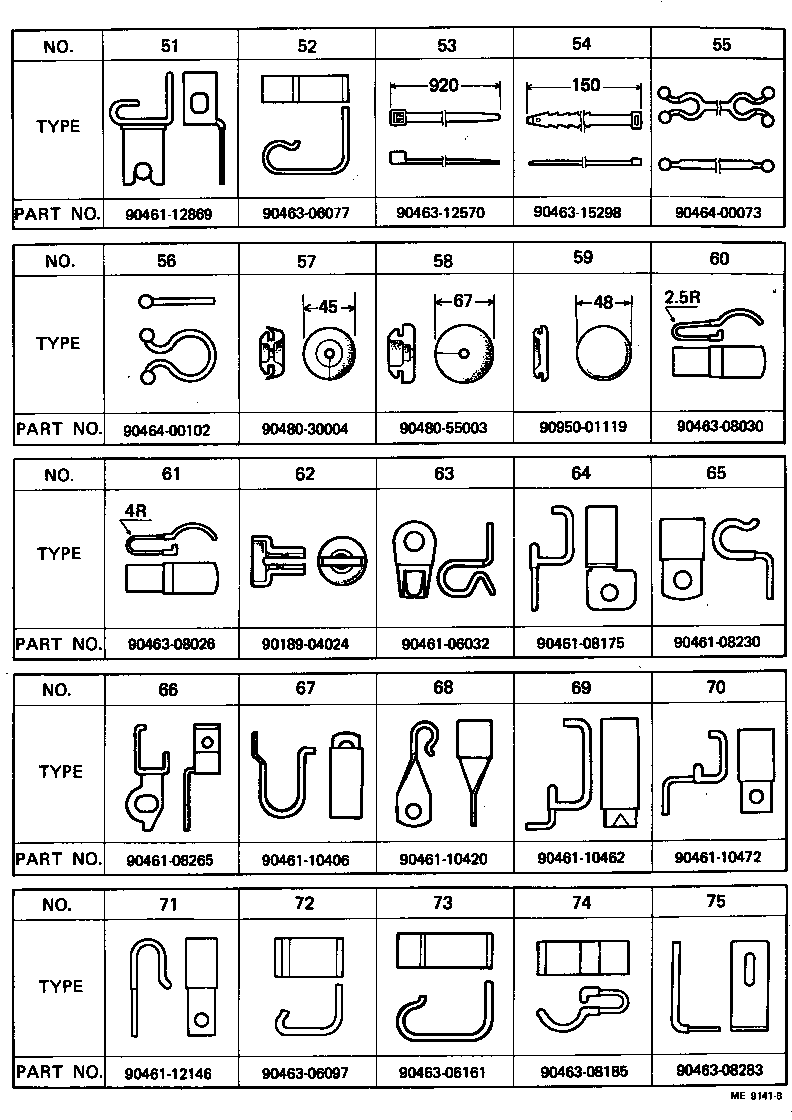

(7903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90189-04024 | ||||
| 90461-06032 | ||||
| 90461-08175 | ||||
| 90461-08230 | ||||
| 90461-08265 | ||||
| 90461-10406 | ||||
| 90461-10420 | ||||
| 90461-10462 | ||||
| 90461-10472 | ||||
| 90461-12146 | ||||
| 90461-12869 | ||||
| 90463-06077 | ||||
| 90463-06097 | ||||
| 90463-06161 | ||||
| 90463-08026 | ||||
| 90463-08030 | ||||
| 90463-08185 | ||||
| 90463-08283 | ||||
| 90463-12570 | ||||
| 90463-15298 | ||||
| 90464-00073 | ||||
| 90464-00102 | ||||
| 90480-30004 | ||||
| 90480-55003 | ||||
| 90950-01119 | ||||

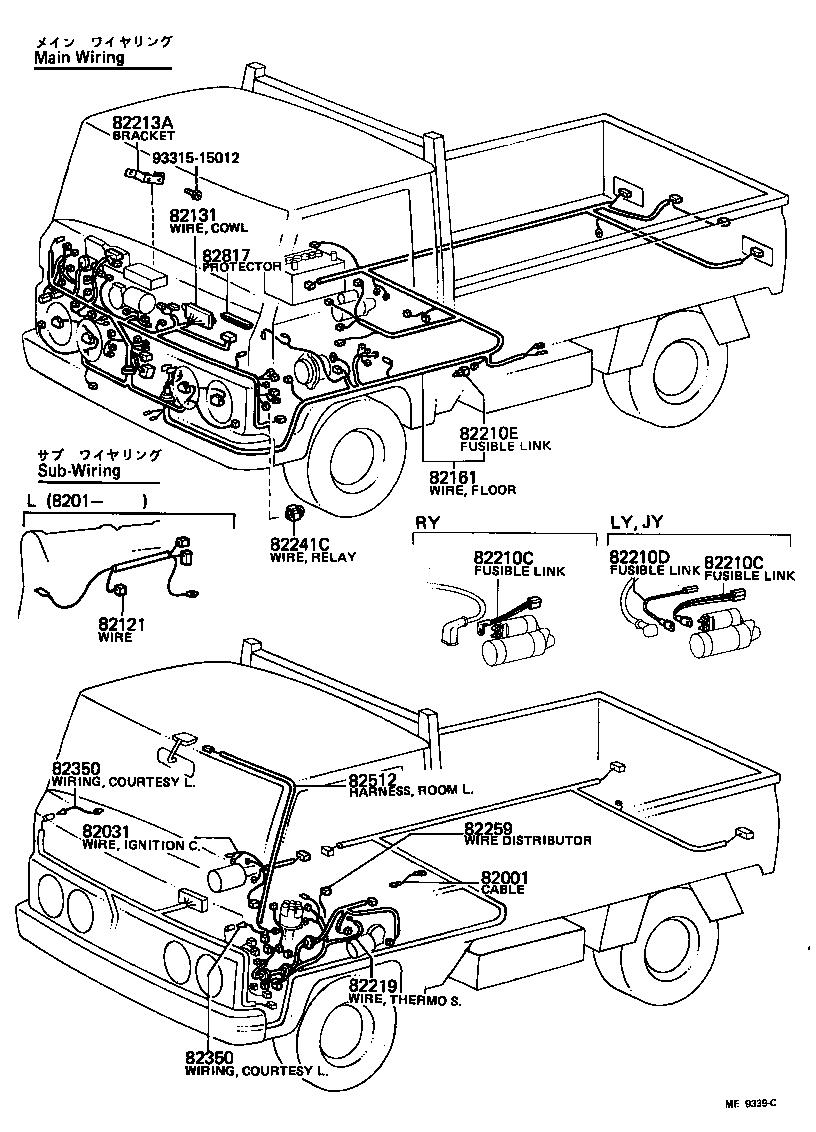

(7903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07143 |
JY30,LY20,30,RY20,3# |
1 | ||
| 82031 - WIRE SUB-ASSY, IGNITION COIL | ||||
| 82505-95012 |
RY20,3#..LHD |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82210-95072 |
RY20,3#..LHD |
1 | ||
| 82210-95073 |
LY20,30 |
1 | ||
| 82131-95020 |
RY20,3#..LHD |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82410-95032 |
RY30..LHD |
1 | ||
| 82410-95045 |
RY30..LHD |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08098 |
JY30,LY20,30 12V 2.5KW STARTER |
1 | ||
| 90982-08058 |
RY20,3# L=110,0.85R,0.5G |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08098 |
JY30,LY20,30 12V 2.5KW STARTER |
1 | ||
| 90982-08058 |
RY20,3# L=110,0.85R,0.5G |
1 | ||
| 82219 - WIRE, THERMO SENSOR | ||||
| 82402-95010 |
LY20,30 |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-22060 |
JY30,LY20,30,RY20,3#..GEN |
1 | ||
| 82350 - WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR) | ||||
| 82432-95400 |
JY30,LY20,30,RY20,3# |
2 | ||
| 82350 - WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR) | ||||
| 82432-95400 |
JY30,LY20,30,RY20,3# |
2 | ||
| 82512 - HARNESS ASSY, ROOM LAMP SUB WIRE | ||||
| 82510-95403 |
JY30,LY20,3#,RY20,3#..15T,20T |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 83712-95010 |
JY30,LY20,3#,RY20,3# |
1 | ||
| Common parts | ||||
| 93315-15012 | ||||

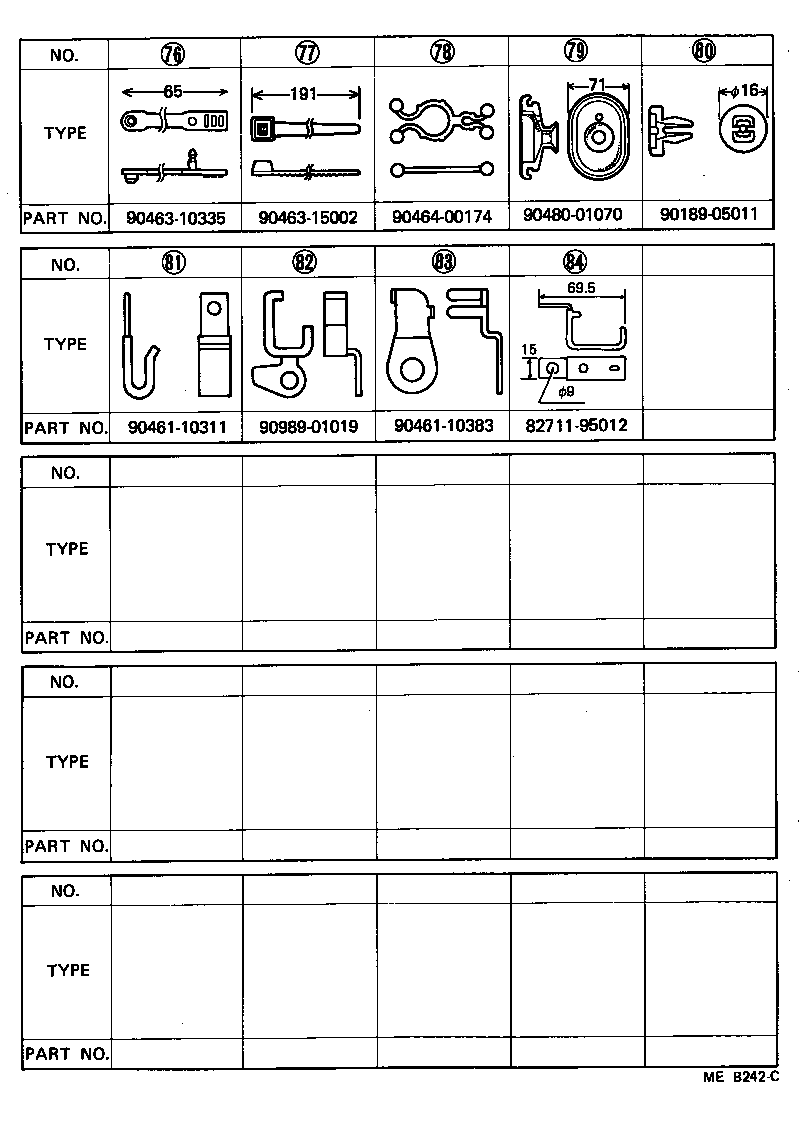

(8201- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-95012 | ||||
| 90189-05011 | ||||
| 90461-10311 | ||||
| 90461-10383 | ||||
| 90463-10335 | ||||
| 90463-15002 | ||||
| 90464-00174 | ||||
| 90480-01070 | ||||
| 90989-01019 | ||||
