RY30L-JDB (1979)
Toyota Toyoace
Production
Mar 1979
-
Aug 1983
Engine
12R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903- )

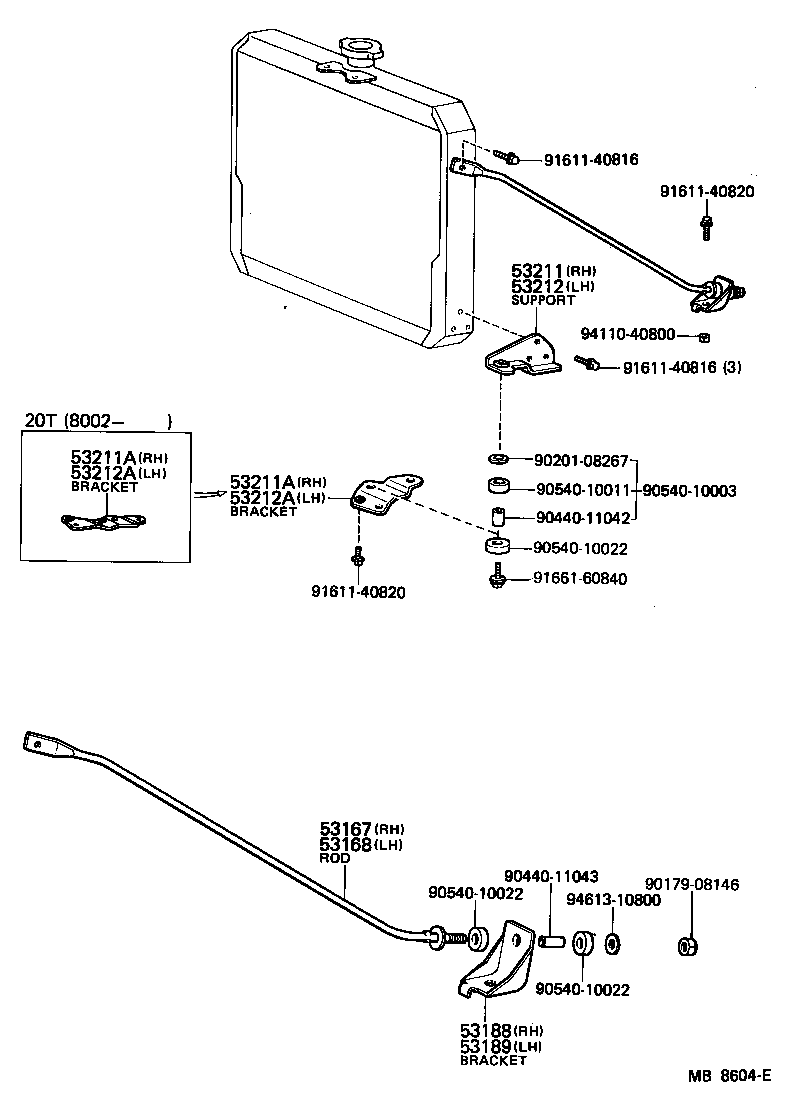

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53167 - ROD, RADIATOR BRACE, RH | ||||
| 53167-25060 |
LY20,30,RY20,3#..125,15T |
1 | ||
| 53168 - ROD, RADIATOR BRACE, LH | ||||
| 53169-25030 |
LY20,30,RY20,3#..125,15T |
1 | ||
| 53188 - BRACKET, RADIATOR BRACE ROD, RH | ||||
| 53168-26010 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 53189 - BRACKET, RADIATOR BRACE ROD, LH | ||||
| 53168-26010 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 53211 - SUPPORT, RADIATOR, RH | ||||
| 53211-25010 |
LY20,30,RY20,3#..125,15T |
1 | ||
| 53211A - BRACKET, RADIATOR SUPPORT, RH | ||||
| 51411-25010 |
LY20,3#,RY20,3#..125,15T |
1 | ||
| 53211A - BRACKET, RADIATOR SUPPORT, RH | ||||
| 51411-25010 |
LY20,3#,RY20,3#..125,15T |
1 | ||
| 53212 - SUPPORT, RADIATOR, LH | ||||
| 53212-25010 |
LY20,30,RY20,3#..125,15T |
1 | ||
| 53212A - BRACKET, RADIATOR SUPPORT, LH | ||||
| 51412-25010 |
LY20,3#,RY20,3#..125,15T |
1 | ||
| 53212A - BRACKET, RADIATOR SUPPORT, LH | ||||
| 51412-25010 |
LY20,3#,RY20,3#..125,15T |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90201-08267 | ||||
| 90440-11042 | ||||
| 90440-11043 | ||||
| 90540-10003 | ||||
| 90540-10011 | ||||
| 90540-10022 | ||||
| 91611-40816 | ||||
| 91611-40820 | ||||
| 91661-60840 | ||||
| 94110-40800 | ||||
| 94613-10800 | ||||
