RY30L-JD (1979)

Toyota Toyoace

Production Mar 1979 - Jul 1985
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

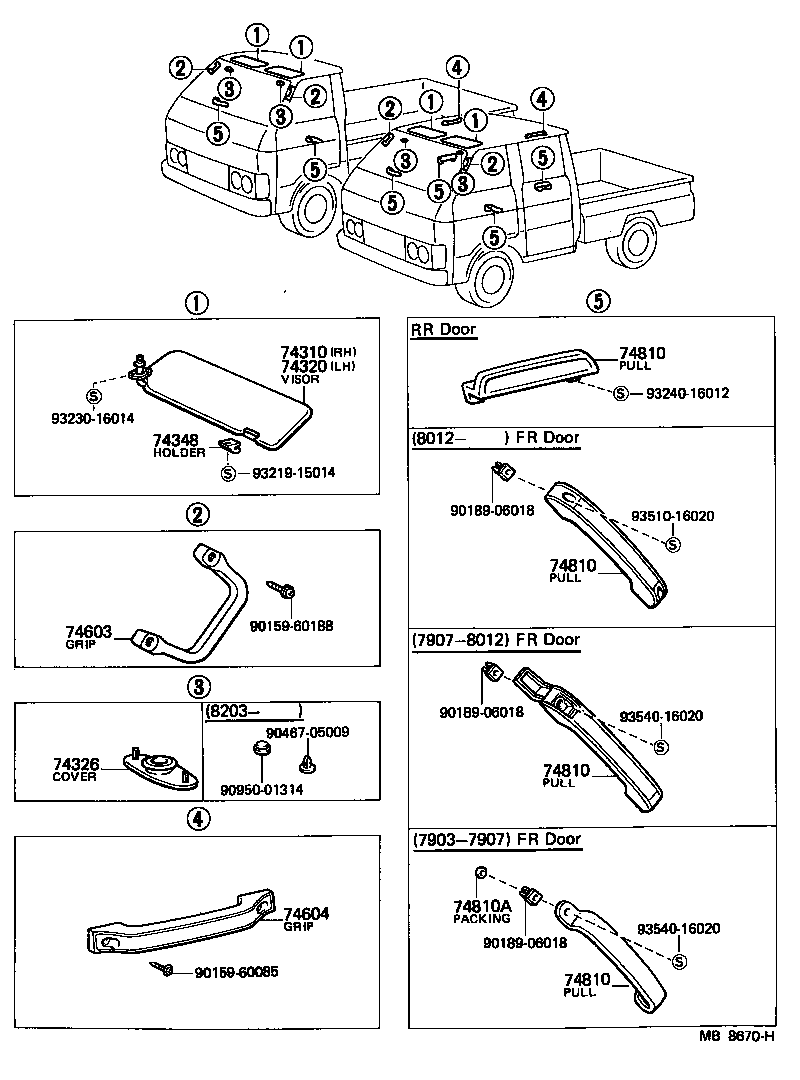

Click highlighted areas on diagram

diagram 74310 74320 74326 74348 74603 74604 74810 74810 74810 74810 74810A 9015960085 9015960188 9018906018 9018906018 9018906018 9046705009 9095001314 9321915014 9323016014 9324016012 9351016020 9354016020 9354016020
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-95019

JY30,LY20,30,RY20,3#..GEN

 1
74310-95022

JY30,LY3#,RY20,3#..GEN

 1
74320 - VISOR ASSY, LH
74310-95023

JY30,RY20,3#..LHD

W/HOLDER

 1
74310-95022

JY30,LY3#,RY20,3#..GEN

 1
74310-95019

JY30,LY20,30,RY20,3#..GEN

 1
74326 - COVER, VISOR HOLE
74325-95010

JY30,LY20,3#,RY20,3#..GEN

 1
74348 - HOLDER, VISOR
74348-95700

JY30,LY3#,RY20,3#

 2
74348-95010

JY30,LY20,30,RY20,3#

 2
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74610-95401

JY30,LY3#,RY20,3#

 2
74610-95400

JY30,LY20,30,RY20,3#

 2
74810 - PULL ASSY, DOOR, INSIDE
74810-95010

JY30,LY20,30,RY20,3#

FR DOOR

 2
69151-95700

JY30,LY20,30,RY20,3#

FR DOOR

 2
69285-9540306

JY30,LY20,3#,RY20,3#

FR DOOR,BROWN,BROWN

 2
74810 - PULL ASSY, DOOR, INSIDE
74810-95010

JY30,LY20,30,RY20,3#

FR DOOR

 2
69151-95700

JY30,LY20,30,RY20,3#

FR DOOR

 2
69285-9540306

JY30,LY20,3#,RY20,3#

FR DOOR,BROWN,BROWN

 2
74810 - PULL ASSY, DOOR, INSIDE
74810-95010

JY30,LY20,30,RY20,3#

FR DOOR

 2
69151-95700

JY30,LY20,30,RY20,3#

FR DOOR

 2
69285-9540306

JY30,LY20,3#,RY20,3#

FR DOOR,BROWN,BROWN

 2
74810 - PULL ASSY, DOOR, INSIDE
74810-95010

JY30,LY20,30,RY20,3#

FR DOOR

 2
69151-95700

JY30,LY20,30,RY20,3#

FR DOOR

 2
69285-9540306

JY30,LY20,3#,RY20,3#

FR DOOR,BROWN,BROWN

 2
74810A - PACKING, DOOR INSIDE PULL HANDLE
58644-95A00

JY30,LY20,30,RY20,3#

 4
Common parts
90159-60085
90159-60188
90189-06018
90467-05009
90950-01314
93219-15014
93230-16014
93240-16012
93510-16020
93540-16020
