RY30L-JD (1979)

Toyota Toyoace

Production Mar 1979 - Jul 1985
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )12R

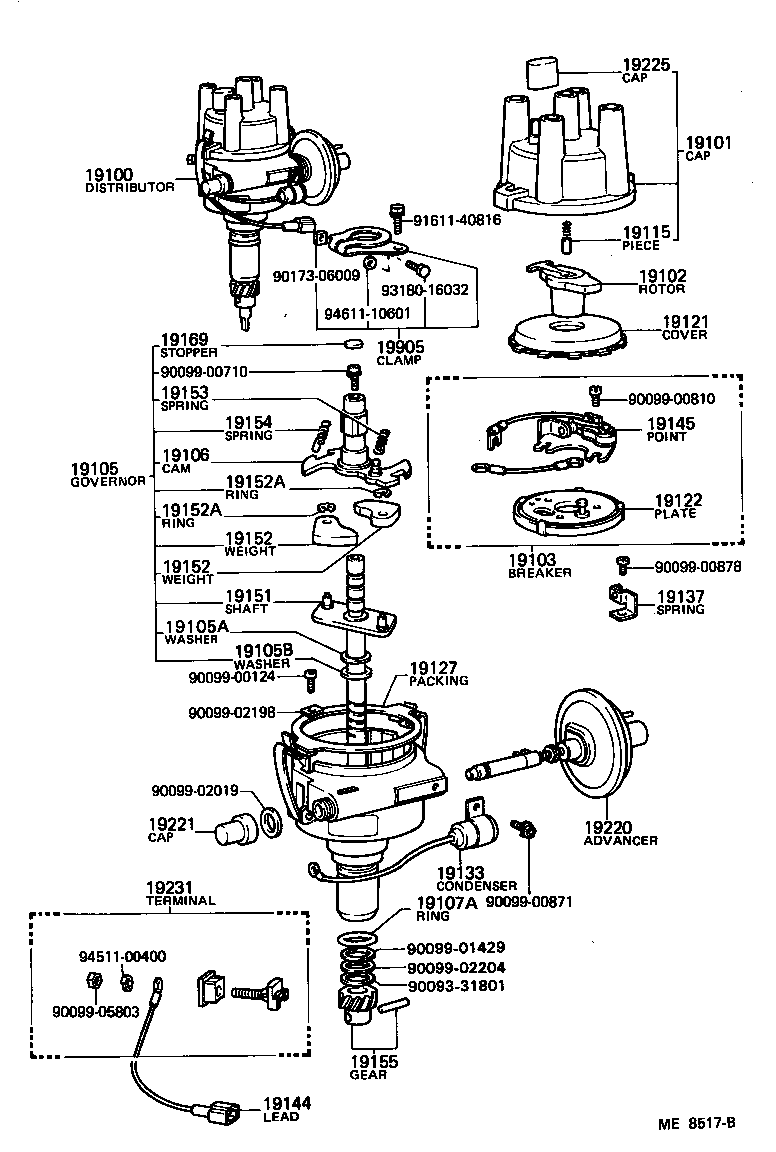

Click highlighted areas on diagram

diagram 19100 19101 19102 19103 19105 19105A 19105B 19106 19107A 19115 19121 19122 19127 19133 19137 19144 19145 19151 19152 19152 19152A 19152A 19153 19154 19155 19169 19220 19221 19225 19231 19905 9009331801 9009900124 9009900710 9009900810 9009900871 9009900878 9009901429 9009902019 9009902198 9009902204 9009905803 9017306009 9161140816 9318016032 9451100400 9461110601
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-31110

12R..RY20,30..ST..CBU

W/GOVERNOR ROTOR

 1
19100-31100

12R..RY20,30

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-25070

12R,5R..RY20,3#

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-33012

12R,5R..RY20,3#

 1
19102-31110

12R..RY20,30..ST..CBU

W/GOVERNOR ROTOR

 1
19103 - BREAKER SUB-ASSY, DISTRIBUTOR
19103-33013

12R,5R..RY20,3#

 1
19105 - GOVERNOR SUB-ASSY
19105-31030

12R..RY20,30

 1
19105A - WASHER(FOR GOVERNOR SHAFT THRUST)
90099-01385

12R,5R..RY20,3#

T=2.5,T=2.5

 1
19105B - WASHER, NO.2(FOR GOVERNOR SHAFT THRUST)
90099-01429

12R..RY20,30

 1
19106 - CAM SUB-ASSY, DISTRIBUTOR
19106-31030

12R..RY20,30

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14020

12R,5R..RY20,3#

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

12R,5R..RY20,3#

 1
19121 - COVER, DUST PROOF
19121-38030

12R,5R..RY20,3#

 1
19122 - PLATE, STATIONARY, DISTRIBUTOR
19122-33013

12R,5R..RY20,3#

 1
19127 - PACKING, DUST PROOF
19127-88251

12R,5R..RY20,3#

 1
19133 - CONDENSER, DISTRIBUTOR
90099-52059

12R,5R..RY20,3#

 1
19137 - SPRING SUB-ASSY, DAMPER
19137-33012

12R,5R..RY20,3#

 1
19144 - LEAD, DISTRIBUTOR BREAKER
19144-34180

12R,5R..RY20,3#

 1
19145 - POINT, DISTRIBUTOR
19145-26060

12R,5R..RY20,3#

 1
19151 - SHAFT, GOVERNOR
19151-24081

12R..RY20,30

 1
19152 - WEIGHT, GOVERNOR
19152-45060

12R,5R..RY20,3#

 2
19152 - WEIGHT, GOVERNOR
19152-45060

12R,5R..RY20,3#

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07014

12R..RY20,30

 2
90099-07011

12R..RY20,30..ST..CBU

W/GOVERNOR ROTOR

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07014

12R..RY20,30

 2
90099-07011

12R..RY20,30..ST..CBU

W/GOVERNOR ROTOR

 2
19153 - SPRING, GOVERNOR, A
19153-31030

12R..RY20,30

 1
19154 - SPRING, GOVERNOR, B
19154-31030

12R..RY20,30

 1
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-31031

12R..RY20,30

 1
19169 - STOPPER, CAM GREASE
19169-32010

12R..RY20,30

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-31030

12R..RY20,30

 1
19221 - CAP, ADJUSTER, DISTRIBUTOR
19221-30030

12R,5R..RY20,3#

 1
19225 - CAP, RUBBER
19225-25070

12R,5R..RY20,3#

 1
19231 - TERMINAL, DISTRIBUTOR
19231-24140

12R,5R..RY20,3#

 1
19905 - CLAMP SUB-ASSY, DISTRIBUTOR
19905-40010

12R..RY20,30

 1
Common parts
90093-31801
90099-00124
90099-00710
90099-00810
90099-00871
90099-00878
90099-01429
90099-02019
90099-02198
90099-02204
90099-05803
90173-06009
91611-40816
93180-16032
94511-00400
94611-10601
