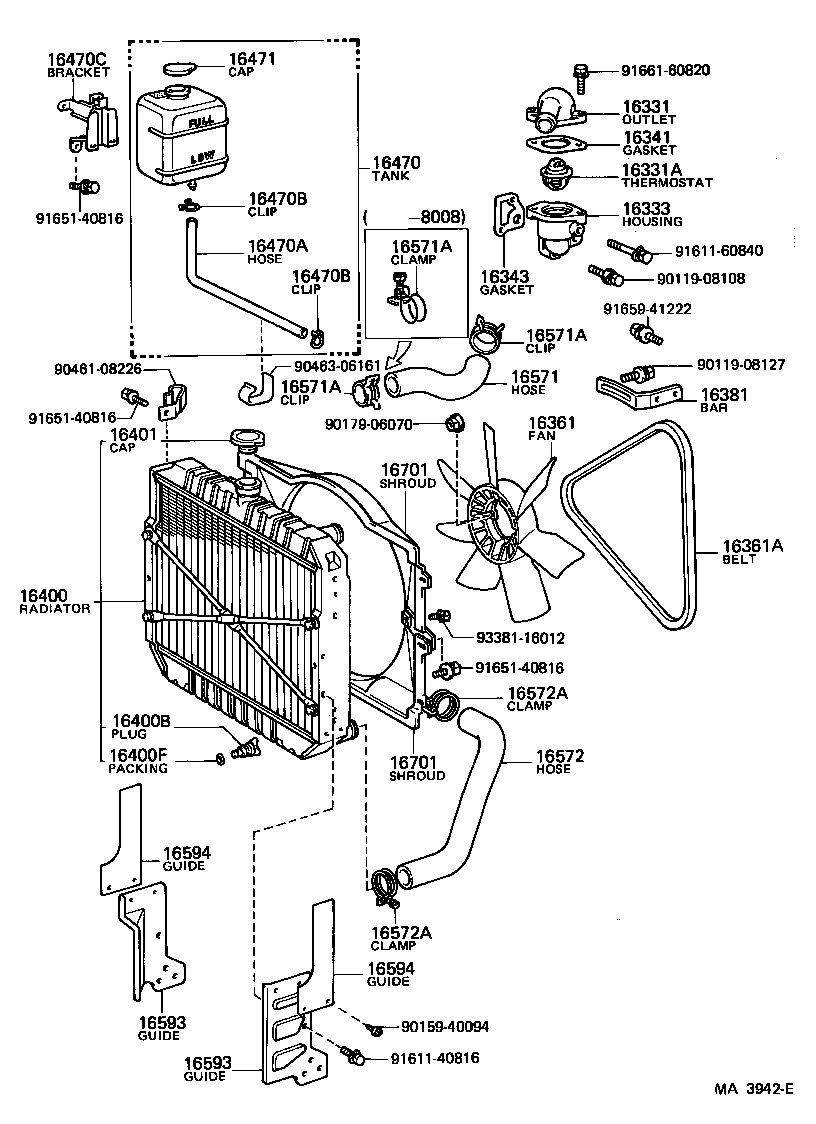

RY30L-JD (1979)
Toyota Toyoace
(7903-8308)L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-31092 |
12R..RY20,30 |
1 | ||
| 16331-31082 |
12R..RY20,30 HONG KONG SPEC |
1 | ||
| 16331-54010 |
L..LY20,30 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03034 |
12R,5R..RY20,3# *WAX 82-95,FUJI-THOMSON |
1 | ||
| 90916-03037 |
12R,5R..RY20,3# *WAX 82-95,KUZEH |
1 | ||
| 90916-03042 |
L..LY20,30 *WAX 82-95 |
1 | ||
| 90916-03054 |
12R..RY20,30 *WAX 82-95,*WAX 82-95 |
1 | ||
| 90916-03061 |
L..LY20,30 *WAX 82-95 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-54010 |
L..LY20,30 |
1 | ||
| 16333-54011 |
L..LY20,30 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38010 |
L..LY20,30 |
1 | ||
| 16341-38011 |
12R..RY20,30 |
1 | ||
| 16341-38010 |
12R..RY20,30 |
1 | ||
| 16341-38010 |
L..LY20,30 |
1 | ||
| 16341-38010 |
12R..RY20,30 |
1 | ||
| 16341-41010 |
L..LY20,30 |
1 | ||
| 16341-38010 |
12R,5R..RY20,3# |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54010 |
L..LY20,30 |
1 | ||
| 16343-54011 |
L,2L..LY20,3# |
1 | ||
| 16361 - FAN | ||||
| 16361-34030 |
L..LY20,30 7 BLADES |
1 | ||
| 16361-31021 |
12R..RY20,30 4 BLADES |
1 | ||
| 16361-41050 |
L..LY20,30 7 BLADES |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99332-00985 |
L..LY20,30 |
1 | ||
| 99332-00890 |
12R..RY20,30 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-31012 |
12R..RY20,30 |
1 | ||
| 16381-54011 |
L,2L..LY20,3# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-31270 |
12R..RY20,30 |
1 | ||
| 16400-54020 |
L..LY20,30 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
L,2L..LY20,3# |
1 | ||
| 16417-24200 |
12R,5R..RY20,3# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
12R,5R..RY20,3# |
1 | ||
| 16418-24200 |
L,2L..LY20,3# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-41021 |
12R,5R..RY20,3# |
1 | ||
| 16401-41021 |
L,2L..LY20,3# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-56070 |
12R,5R..RY20,3# |
1 | ||
| 16470-54010 |
L,2L..LY20,3# |
1 | ||
| 16470-56071 |
12R,5R..RY20,3# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 85371-25010 |
L,2L..LY20,3# |
1 | ||
| 90445-12897 |
12R,5R..RY20,3# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
12R,5R..RY20,3# |
2 | ||
| 90467-11085 |
L,2L..LY20,3# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
12R,5R..RY20,3# |
2 | ||
| 90467-11085 |
L,2L..LY20,3# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-54010 |
L,2L..LY20,3# |
1 | ||
| 16611-56020 |
12R,5R..RY20,3# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-34030 |
12R,5R..RY20,3# |
1 | ||
| 16471-34030 |
L,2L..LY20,3# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54020 |
L..LY20,30 |
1 | ||
| 16572-31110 |
12R..RY20,30 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
L..LY20,30 OUTLET SIDE,ID=37 |
1 | ||
| 90467-37001 |
L,2L..LY20,3# |
2 | ||
| 96111-10430 |
L..LY20,30 RADIATOR SIDE,ID=43 |
1 | ||
| 96111-10440 |
12R,5R..RY20,3# RADIATOR SIDE,ID=44 |
1 | ||
| 90467-37001 |
12R,5R..RY20,3# OUTLET SIDE,ID=37 |
1 | ||
| 90467-37001 |
12R,5R..RY20,3# OUTLET SIDE,ID=37 |
2 | ||
| 90467-37001 |
12R,5R..RY20,3# OUTLET SIDE,ID=37 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
L..LY20,30 OUTLET SIDE,ID=37 |
1 | ||
| 90467-37001 |
L,2L..LY20,3# |
2 | ||
| 96111-10430 |
L..LY20,30 RADIATOR SIDE,ID=43 |
1 | ||
| 96111-10440 |
12R,5R..RY20,3# RADIATOR SIDE,ID=44 |
1 | ||
| 90467-37001 |
12R,5R..RY20,3# OUTLET SIDE,ID=37 |
1 | ||
| 90467-37001 |
12R,5R..RY20,3# OUTLET SIDE,ID=37 |
2 | ||
| 90467-37001 |
12R,5R..RY20,3# OUTLET SIDE,ID=37 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
L..LY20,30 OUTLET SIDE,ID=37 |
1 | ||
| 90467-37001 |
L,2L..LY20,3# |
2 | ||
| 96111-10430 |
L..LY20,30 RADIATOR SIDE,ID=43 |
1 | ||
| 96111-10440 |
12R,5R..RY20,3# RADIATOR SIDE,ID=44 |
1 | ||
| 90467-37001 |
12R,5R..RY20,3# OUTLET SIDE,ID=37 |
1 | ||
| 90467-37001 |
12R,5R..RY20,3# OUTLET SIDE,ID=37 |
2 | ||
| 90467-37001 |
12R,5R..RY20,3# OUTLET SIDE,ID=37 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-31080 |
12R..RY20,30 |
1 | ||
| 16572-54020 |
L..LY20,30 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10450 |
L..LY20,30 RADIATOR SIDE,ID=45 |
1 | ||
| 96111-10460 |
L,2L..LY20,3# RADIATOR SIDE,ID=46 |
1 | ||
| 96111-10500 |
L,2L..LY20,3# PUMP SIDE,ID=50 |
1 | ||
| 96111-10460 |
12R,5R..RY20,3# ID=46 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10450 |
L..LY20,30 RADIATOR SIDE,ID=45 |
1 | ||
| 96111-10460 |
L,2L..LY20,3# RADIATOR SIDE,ID=46 |
1 | ||
| 96111-10500 |
L,2L..LY20,3# PUMP SIDE,ID=50 |
1 | ||
| 96111-10460 |
12R,5R..RY20,3# ID=46 |
2 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16595-54010 |
L..LY20,30 LH |
1 | ||
| 16593-54010 |
L..LY20,30 RH |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16595-54010 |
L..LY20,30 LH |
1 | ||
| 16593-54010 |
L..LY20,30 RH |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-54011 |
L..LY20,30 |
2 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-54011 |
L..LY20,30 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-54020 |
L..LY20,30 UPR |
1 | ||
| 16712-54020 |
L..LY20,30 LWR |
1 | ||
| 16712-31040 |
12R..RY20,30 LWR |
1 | ||
| 16711-31140 |
12R..RY20,30 UPR |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-54020 |
L..LY20,30 UPR |
1 | ||
| 16712-54020 |
L..LY20,30 LWR |
1 | ||
| 16712-31040 |
12R..RY20,30 LWR |
1 | ||
| 16711-31140 |
12R..RY20,30 UPR |
1 | ||
| Common parts | ||||
| 90119-08108 | ||||
| 90119-08127 | ||||
| 90159-40094 | ||||
| 90179-06070 | ||||
| 90461-08226 | ||||
| 90463-06161 | ||||
| 91611-40816 | ||||
| 91611-60840 | ||||
| 91651-40816 | ||||
| 91659-41222 | ||||
| 91661-60820 | ||||
| 93381-16012 | ||||

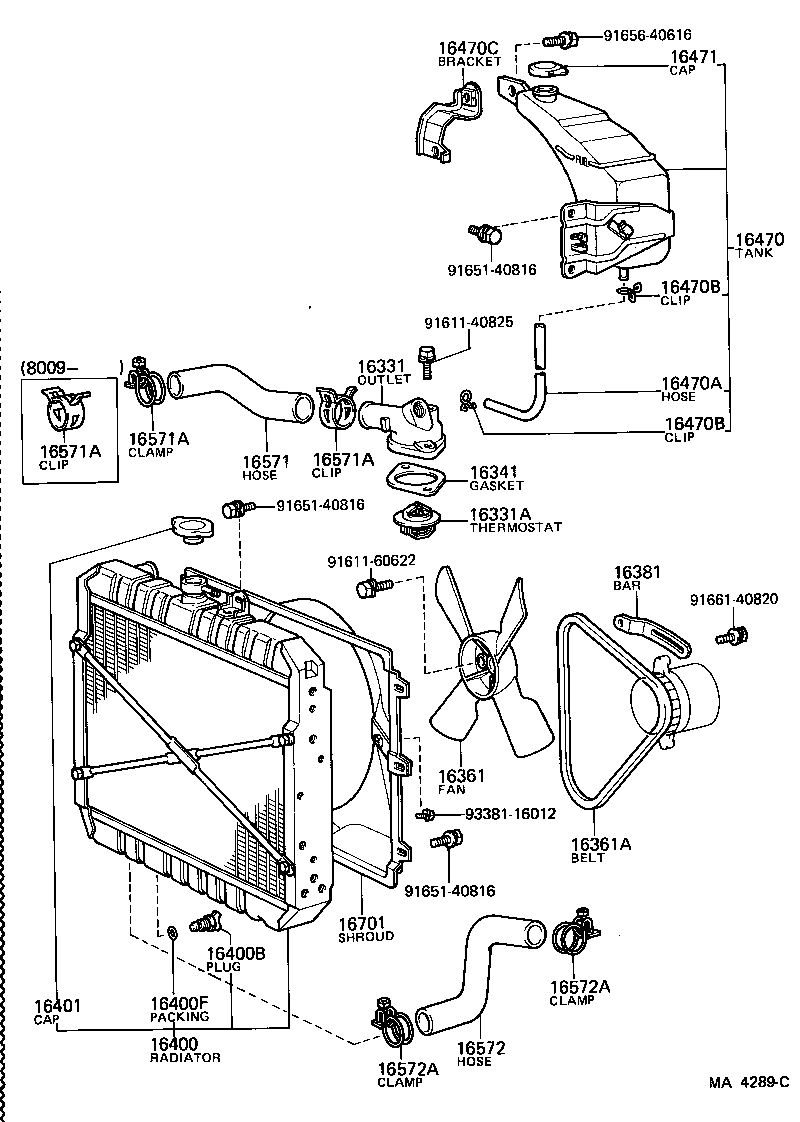

(7903- )12R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-31092 |
12R..RY20,30 |
1 | ||
| 16331-31082 |
12R..RY20,30 HONG KONG SPEC |
1 | ||
| 16331-54010 |
L..LY20,30 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03034 |
12R,5R..RY20,3# *WAX 82-95,FUJI-THOMSON |
1 | ||
| 90916-03037 |
12R,5R..RY20,3# *WAX 82-95,KUZEH |
1 | ||
| 90916-03042 |
L..LY20,30 *WAX 82-95 |
1 | ||
| 90916-03054 |
12R..RY20,30 *WAX 82-95,*WAX 82-95 |
1 | ||
| 90916-03061 |
L..LY20,30 *WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38010 |
L..LY20,30 |
1 | ||
| 16341-38011 |
12R..RY20,30 |
1 | ||
| 16341-38010 |
12R..RY20,30 |
1 | ||
| 16341-38010 |
L..LY20,30 |
1 | ||
| 16341-38010 |
12R..RY20,30 |
1 | ||
| 16341-41010 |
L..LY20,30 |
1 | ||
| 16341-38010 |
12R,5R..RY20,3# |
1 | ||
| 16361 - FAN | ||||
| 16361-34030 |
L..LY20,30 7 BLADES |
1 | ||
| 16361-31021 |
12R..RY20,30 4 BLADES |
1 | ||
| 16361-41050 |
L..LY20,30 7 BLADES |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99332-00985 |
L..LY20,30 |
1 | ||
| 99332-00890 |
12R..RY20,30 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-31012 |
12R..RY20,30 |
1 | ||
| 16381-54011 |
L,2L..LY20,3# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-31270 |
12R..RY20,30 |
1 | ||
| 16400-54020 |
L..LY20,30 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
L,2L..LY20,3# |
1 | ||
| 16417-24200 |
12R,5R..RY20,3# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
12R,5R..RY20,3# |
1 | ||
| 16418-24200 |
L,2L..LY20,3# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-41021 |
12R,5R..RY20,3# |
1 | ||
| 16401-41021 |
L,2L..LY20,3# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-56070 |
12R,5R..RY20,3# |
1 | ||
| 16470-54010 |
L,2L..LY20,3# |
1 | ||
| 16470-56071 |
12R,5R..RY20,3# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 85371-25010 |
L,2L..LY20,3# |
1 | ||
| 90445-12897 |
12R,5R..RY20,3# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
12R,5R..RY20,3# |
2 | ||
| 90467-11085 |
L,2L..LY20,3# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
12R,5R..RY20,3# |
2 | ||
| 90467-11085 |
L,2L..LY20,3# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-54010 |
L,2L..LY20,3# |
1 | ||
| 16611-56020 |
12R,5R..RY20,3# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-34030 |
12R,5R..RY20,3# |
1 | ||
| 16471-34030 |
L,2L..LY20,3# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54020 |
L..LY20,30 |
1 | ||
| 16572-31110 |
12R..RY20,30 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
L..LY20,30 OUTLET SIDE,ID=37 |
1 | ||
| 90467-37001 |
L,2L..LY20,3# |
2 | ||
| 96111-10430 |
L..LY20,30 RADIATOR SIDE,ID=43 |
1 | ||
| 96111-10440 |
12R,5R..RY20,3# RADIATOR SIDE,ID=44 |
1 | ||
| 90467-37001 |
12R,5R..RY20,3# OUTLET SIDE,ID=37 |
1 | ||
| 90467-37001 |
12R,5R..RY20,3# OUTLET SIDE,ID=37 |
2 | ||
| 90467-37001 |
12R,5R..RY20,3# OUTLET SIDE,ID=37 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
L..LY20,30 OUTLET SIDE,ID=37 |
1 | ||
| 90467-37001 |
L,2L..LY20,3# |
2 | ||
| 96111-10430 |
L..LY20,30 RADIATOR SIDE,ID=43 |
1 | ||
| 96111-10440 |
12R,5R..RY20,3# RADIATOR SIDE,ID=44 |
1 | ||
| 90467-37001 |
12R,5R..RY20,3# OUTLET SIDE,ID=37 |
1 | ||
| 90467-37001 |
12R,5R..RY20,3# OUTLET SIDE,ID=37 |
2 | ||
| 90467-37001 |
12R,5R..RY20,3# OUTLET SIDE,ID=37 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
L..LY20,30 OUTLET SIDE,ID=37 |
1 | ||
| 90467-37001 |
L,2L..LY20,3# |
2 | ||
| 96111-10430 |
L..LY20,30 RADIATOR SIDE,ID=43 |
1 | ||
| 96111-10440 |
12R,5R..RY20,3# RADIATOR SIDE,ID=44 |
1 | ||
| 90467-37001 |
12R,5R..RY20,3# OUTLET SIDE,ID=37 |
1 | ||
| 90467-37001 |
12R,5R..RY20,3# OUTLET SIDE,ID=37 |
2 | ||
| 90467-37001 |
12R,5R..RY20,3# OUTLET SIDE,ID=37 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-31080 |
12R..RY20,30 |
1 | ||
| 16572-54020 |
L..LY20,30 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10450 |
L..LY20,30 RADIATOR SIDE,ID=45 |
1 | ||
| 96111-10460 |
L,2L..LY20,3# RADIATOR SIDE,ID=46 |
1 | ||
| 96111-10500 |
L,2L..LY20,3# PUMP SIDE,ID=50 |
1 | ||
| 96111-10460 |
12R,5R..RY20,3# ID=46 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10450 |
L..LY20,30 RADIATOR SIDE,ID=45 |
1 | ||
| 96111-10460 |
L,2L..LY20,3# RADIATOR SIDE,ID=46 |
1 | ||
| 96111-10500 |
L,2L..LY20,3# PUMP SIDE,ID=50 |
1 | ||
| 96111-10460 |
12R,5R..RY20,3# ID=46 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-54020 |
L..LY20,30 UPR |
1 | ||
| 16712-54020 |
L..LY20,30 LWR |
1 | ||
| 16712-31040 |
12R..RY20,30 LWR |
1 | ||
| 16711-31140 |
12R..RY20,30 UPR |
1 | ||
| Common parts | ||||
| 91611-40825 | ||||
| 91611-60622 | ||||
| 91651-40816 | ||||
| 91656-40616 | ||||
| 91661-40820 | ||||
| 93381-16012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
