RY30L-JD (1979)

Toyota Toyoace

Production Mar 1979 - Jul 1985
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

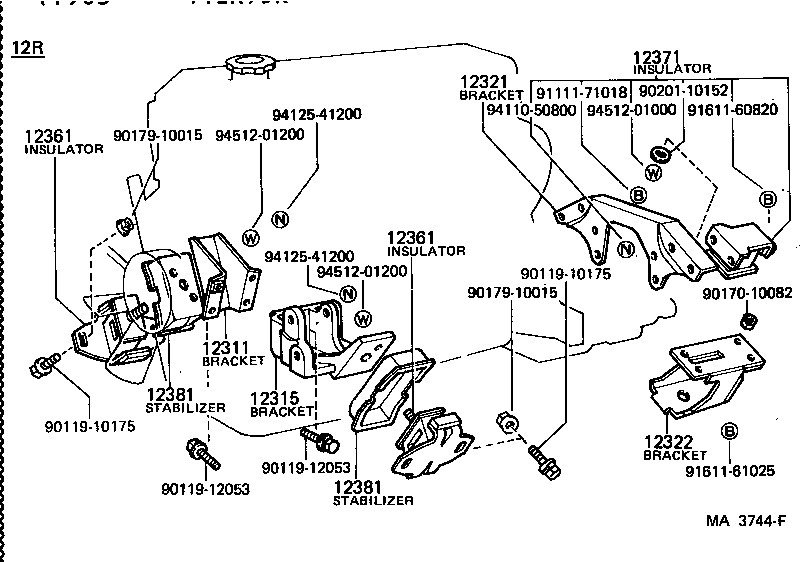

(7903- )12R

Click highlighted areas on diagram

diagram 12311 12315 12321 12322 12361 12361 12371 12381 12381 9011910175 9011910175 9011912053 9011912053 9017010082 9017910015 9017910015 9020110152 9111171018 9161160820 9161161025 9411050800 9412541200 9412541200 9451201000 9451201200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-54051

L..LY20,30

 1
12311-54020

L..LY20,30

 1
12311-30010

12R..RY20,30

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-31011

12R..RY20,30

 1
12312-54020

L,2L..LY20,3#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-31030

12R,5R..RY20,3#..125,15T

 1
12321-54010

L,2L..LY20,3#

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-31040

L..LY20,30

 2
12322-31040

12R..RY20,30

 2
12322-31040

12R..RY20,30

 2
12322-54030

L,2L..LY20,3#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-31070

12R..RY20,30

 2
12361-54020

L..LY20,30

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-31070

12R..RY20,30

 2
12361-54020

L..LY20,30

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-59025

L,2L..LY20,3#

 2
12371-59025

12R,5R..RY20,3#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-31030

12R..RY20,30

 2
12381-31031

12R..RY20,30

 2
12381-54010

L,2L..LY20,3#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-31030

12R..RY20,30

 2
12381-31031

12R..RY20,30

 2
12381-54010

L,2L..LY20,3#

 2
Common parts
90119-10175
90119-12053
90170-10082
90179-10015
90201-10152
91111-71018
91611-60820
91611-61025
94110-50800
94125-41200
94512-01000
94512-01200

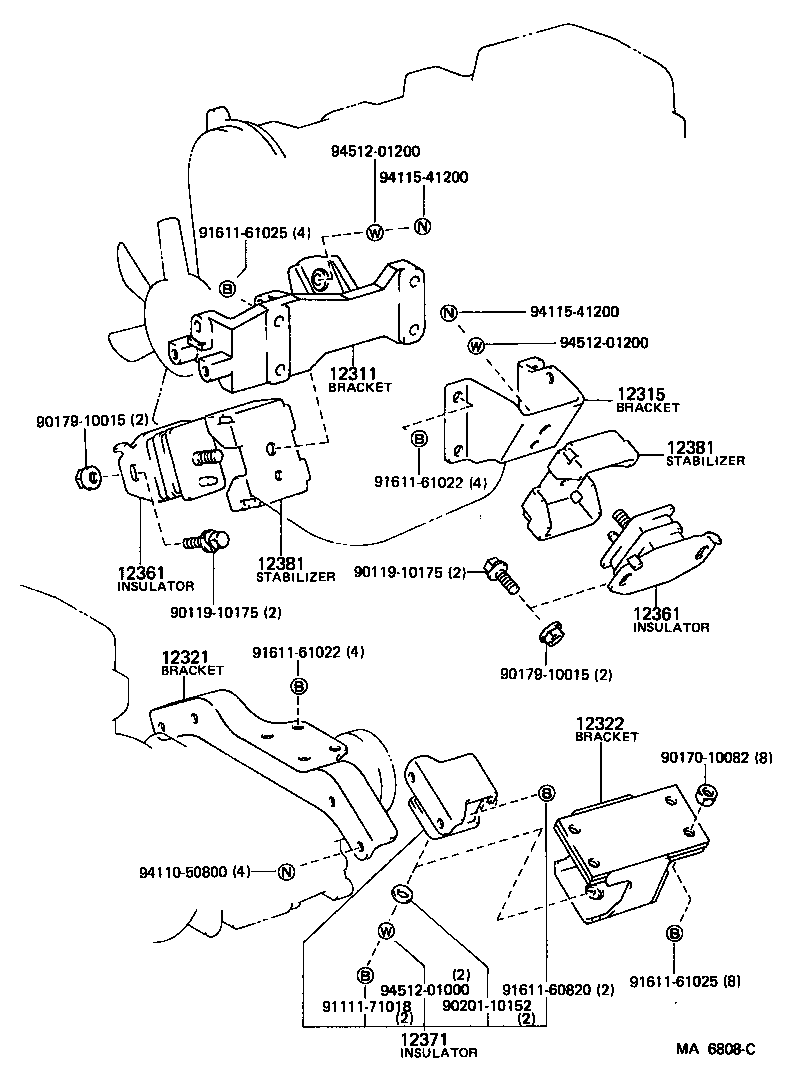

(7903- )L,2L

Click highlighted areas on diagram

diagram 12311 12315 12321 12322 12361 12361 12371 12381 12381 9011910175 9011910175 9017010082 9017910015 9017910015 9020110152 9111171018 9161160820 9161161022 9161161022 9161161025 9161161025 9411050800 9411541200 9411541200 9451201000 9451201200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-54051

L..LY20,30

 1
12311-54020

L..LY20,30

 1
12311-30010

12R..RY20,30

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-31011

12R..RY20,30

 1
12312-54020

L,2L..LY20,3#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-31030

12R,5R..RY20,3#..125,15T

 1
12321-54010

L,2L..LY20,3#

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-31040

L..LY20,30

 2
12322-31040

12R..RY20,30

 2
12322-31040

12R..RY20,30

 2
12322-54030

L,2L..LY20,3#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-31070

12R..RY20,30

 2
12361-54020

L..LY20,30

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-31070

12R..RY20,30

 2
12361-54020

L..LY20,30

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-59025

L,2L..LY20,3#

 2
12371-59025

12R,5R..RY20,3#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-31030

12R..RY20,30

 2
12381-31031

12R..RY20,30

 2
12381-54010

L,2L..LY20,3#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-31030

12R..RY20,30

 2
12381-31031

12R..RY20,30

 2
12381-54010

L,2L..LY20,3#

 2
Common parts
90119-10175
90170-10082
90179-10015
90201-10152
91111-71018
91611-60820
91611-61022
91611-61025
94110-50800
94115-41200
94512-01000
94512-01200
