RY20R-JDB3 (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )T2,T3

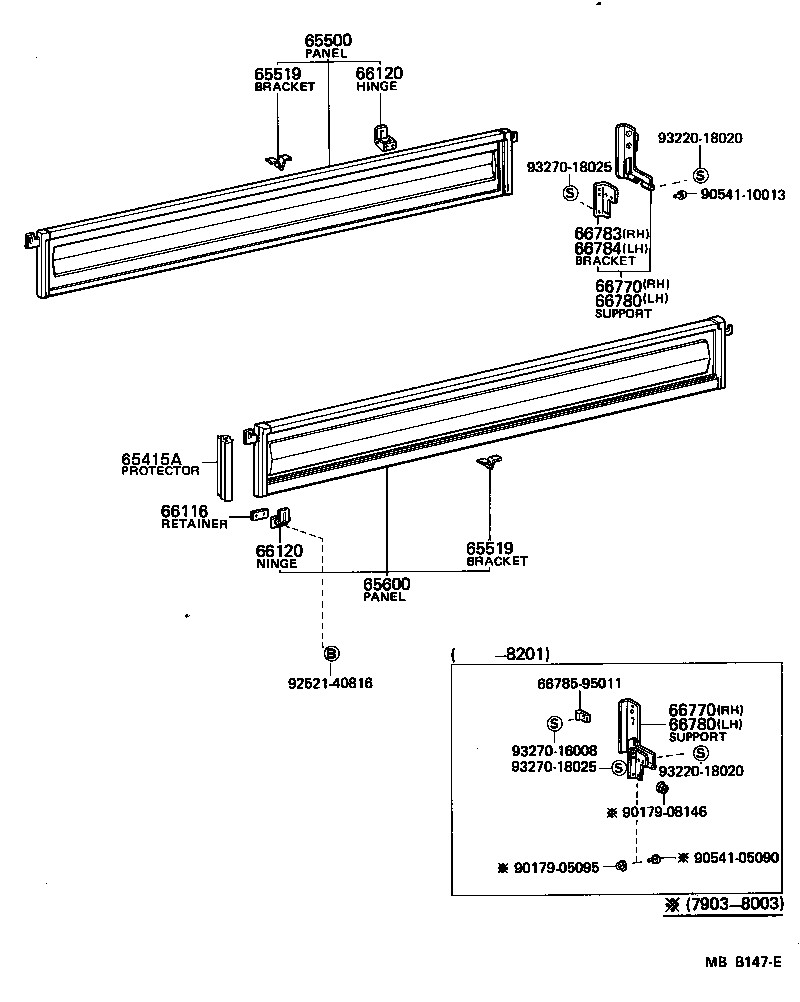

Click highlighted areas on diagram

diagram 65415A 65500 65519 65519 65600 66116 66120 66120 66770 66770 66780 66780 66783 66784 6678595011 9017905095 9017908146 9054105090 9054110013 9252140816 9322018020 9322018020 9327016008 9327018025 9327018025
Part # Description Qty Price
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-95038

LY20..IV;RY20..T3

 1
65519 - BRACKET, TOP RAIL
65519-95010

LY20..IV;LY30..15T;JY30,LY31,RY20,3#..T2,T3

 2
65519 - BRACKET, TOP RAIL
65519-95010

LY20..IV;LY30..15T;JY30,LY31,RY20,3#..T2,T3

 2
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-95039

LY20..IV;RY20..T3

 1
66116 - RETAINER, GATE HINGE, LOWER
66115-95012

LY20..IV;RY20..T3

 10
66120 - HINGE ASSY, SIDE GATE
66110-95018

LY20..IV;RY20..T3

 10
66120 - HINGE ASSY, SIDE GATE
66110-95018

LY20..IV;RY20..T3

 10
66770 - SUPPORT SUB-ASSY, SIDE GATE, RH
66770-95012

LY30;LY20..IV;JY30,RY20,3#..T3

 1
66770-95011

LY30;LY20..IV;JY30,RY20,3#..T3

 1
66770 - SUPPORT SUB-ASSY, SIDE GATE, RH
66770-95012

LY30;LY20..IV;JY30,RY20,3#..T3

 1
66770-95011

LY30;LY20..IV;JY30,RY20,3#..T3

 1
66780 - SUPPORT SUB-ASSY, SIDE GATE, LH
66780-95011

LY30;LY20..IV;JY30,RY20,3#..T3

 1
66780-95012

LY30;LY20..IV;JY30,RY20,3#..T3

 1
66780 - SUPPORT SUB-ASSY, SIDE GATE, LH
66780-95011

LY30;LY20..IV;JY30,RY20,3#..T3

 1
66780-95012

LY30;LY20..IV;JY30,RY20,3#..T3

 1
Common parts
66785-95011
90179-05095
90179-08146
90541-05090
90541-10013
92521-40816
93220-18020
93270-16008
93270-18025
