RY20R-JDB (1979)

Toyota Toyoace

Production Mar 1979 - Jul 1985
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

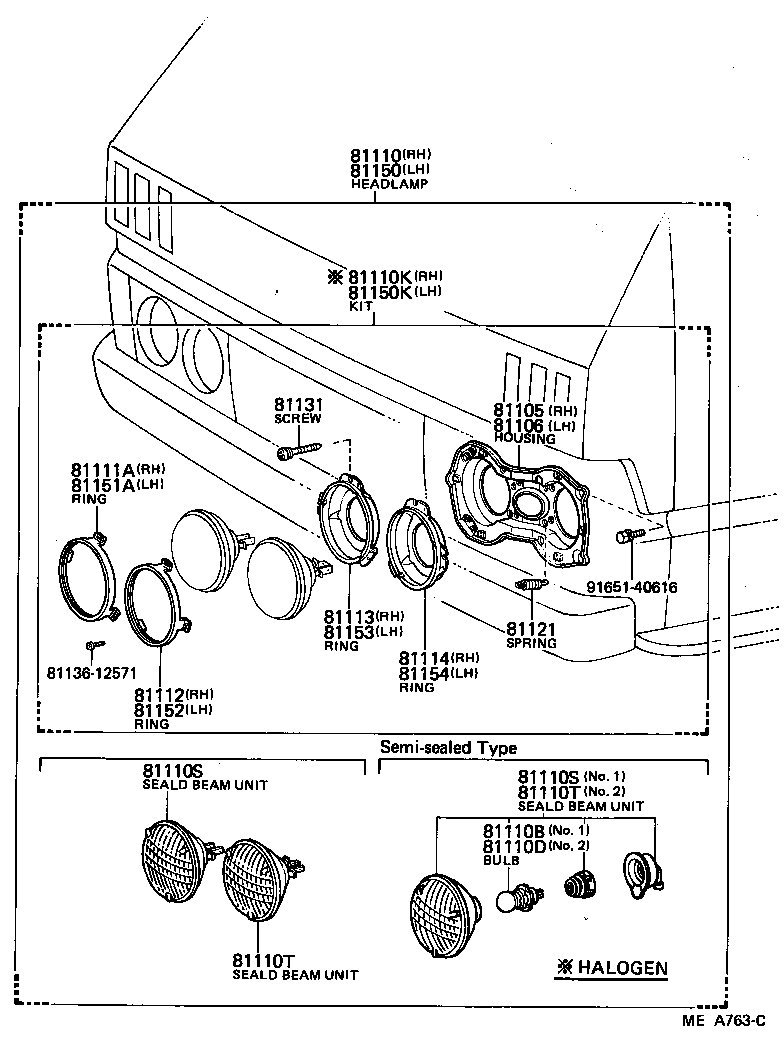

Click highlighted areas on diagram

diagram 81105 81106 81110 81110B 81110D 81110K 81110S 81110S 81110T 81110T 81111A 81112 81113 81114 81121 81131 8113612571 81150 81150K 81151A 81152 81153 81154 9165140616
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-95010

JY30,LY20,3#,RY20,3#

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-95010

JY30,LY20,3#,RY20,3#

 1
81110 - HEADLAMP ASSY, RH
81110-29885

JY30,LY20,3#,RY20,3#..RHD

 1
81110S - SEALED BEAM UNIT, NO.1
90981-02011

JY30,LY20,3#,RY20,3#

12V 37.5W,*WB,12V 37.5W

 2
81110S - SEALED BEAM UNIT, NO.1
90981-02011

JY30,LY20,3#,RY20,3#

12V 37.5W,*WB,12V 37.5W

 2
81110T - SEALED BEAM UNIT, NO.2
90981-02019

JY30,LY20,30,RY20,3#

12V 45/40W,*WSB,SEMI-SEALED,WHITE

 2
90981-02021

JY30,LY20,3#,RY20,3#

12V 45/40W,*YSB,SEMI-SEALED,YELLOW

 2
90981-02012

JY30,LY20,3#,RY20,3#..RHD

12V 37.5/50W,*WB,12V 37.5/50W

 2
81110T - SEALED BEAM UNIT, NO.2
90981-02019

JY30,LY20,30,RY20,3#

12V 45/40W,*WSB,SEMI-SEALED,WHITE

 2
90981-02021

JY30,LY20,3#,RY20,3#

12V 45/40W,*YSB,SEMI-SEALED,YELLOW

 2
90981-02012

JY30,LY20,3#,RY20,3#..RHD

12V 37.5/50W,*WB,12V 37.5/50W

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-20280

JY30,LY20,3#,RY20,3#

 1
81112 - RING, SEALED BEAM RETAINING, NO.2 RH
81111-20280

JY30,LY20,3#,RY20,3#

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81153-95010

JY30,LY3#,RY20,3#

 1
81153-30150

JY30,LY20,30,RY20,3#

 1
81114 - RING, SEALED BEAM MOUNTING, NO.2 RH
81114-30170

JY30,LY20,30,RY20,3#

 1
81114-95010

JY30,LY3#,RY20,3#

 1
81121 - SPRING, HEADLAMP TENSION
81121-20100

JY30,LY20,3#,RY20,3#

 4
81131 - SCREW, HEADLAMP ADJUSTING
81131-20043

JY30,LY20,3#,RY20,3#

 8
81150 - HEADLAMP ASSY, LH
81150-29885

JY30,LY20,3#,RY20,3#..RHD

 1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-20280

JY30,LY20,3#,RY20,3#

 1
81152 - RING, SEALED BEAM RETAINING, NO.2 LH
81111-20280

JY30,LY20,3#,RY20,3#

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81113-30170

JY30,LY20,30,RY20,3#

 1
81113-95010

JY30,LY3#,RY20,3#

 1
81154 - RING, SEALED BEAM MOUNTING, NO.2 LH
81154-30150

JY30,LY20,30,RY20,3#

 1
81154-95010

JY30,LY3#,RY20,3#

 1
Common parts
81136-12571
91651-40616
