RY20R-JD (1979)

Toyota Toyoace

Production Mar 1979 - Aug 1983
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )RY20,30..RHD

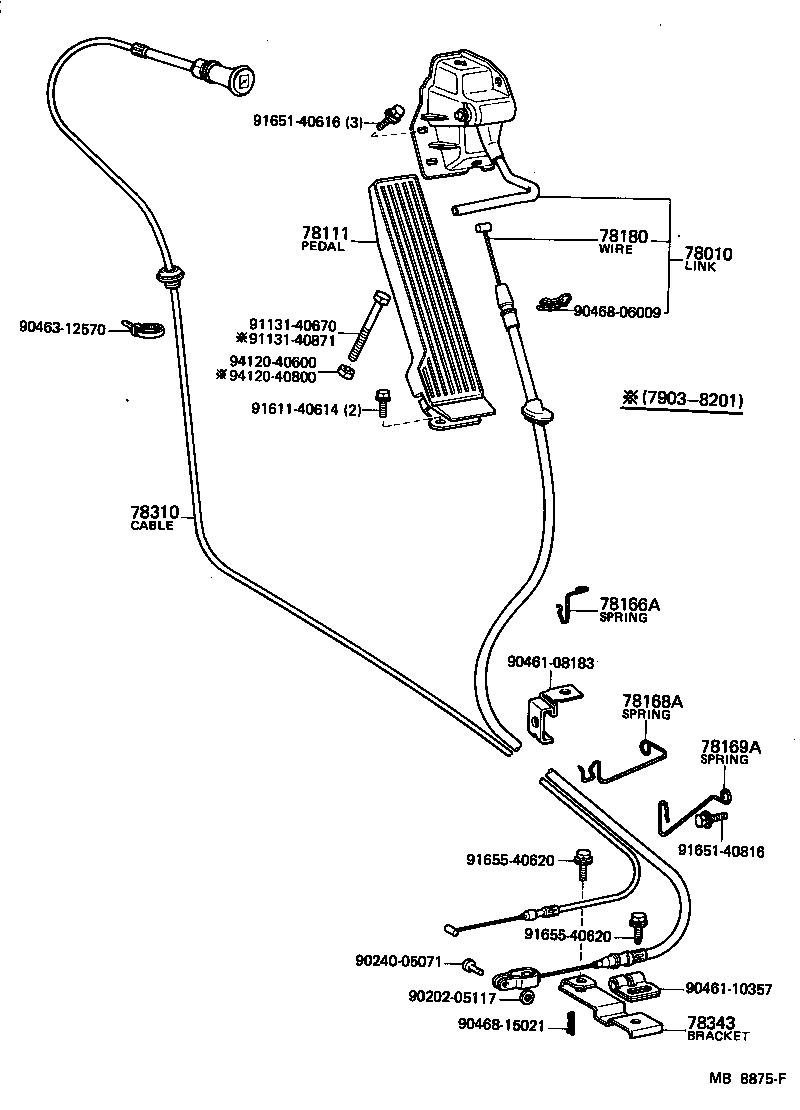

Click highlighted areas on diagram

diagram 78010 78111 78166A 78168A 78169A 78180 78310 78343 9020205117 9024005071 9046108183 9046110357 9046312570 9046806009 9046815021 9113140670 9113140871 9161140614 9165140616 9165140816 9165540620 9165540620 9412040600 9412040800
Part # Description Qty Price
78010 - LINK, ACCELERATOR
78180-95036

RY20,30..RHD

 1
78111 - PEDAL, ACCELERATOR
78110-95014

JY30,LY20,3#,RY20,3#

 1
78166A - SPRING, CLAMP, NO.1
78166-95010

JY30,LY20,3#,RY20,3#..RHD

 1
78168A - SPRING, CLAMP, NO.3
78168-95010

JY30,RY20,3#

 1
78169A - SPRING, CLAMP, NO.4
78169-95014

RY20,3#

 1
78180 - WIRE ASSY, ACCELERATOR
78150-95042

RY20,30..RHD

 1
78310 - CABLE ASSY, CHOKE
78310-95026

RY20,30..RHD

 1
78343 - BRACKET, CHOKE ROD
78302-95602

RY20,30

 1
Common parts
90202-05117
90240-05071
90461-08183
90461-10357
90463-12570
90468-06009
90468-15021
91131-40670
91131-40871
91611-40614
91651-40616
91651-40816
91655-40620
94120-40600
94120-40800
