RY20L-JDB (1979)

Toyota Toyoace

Production Mar 1979 - Jul 1985
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

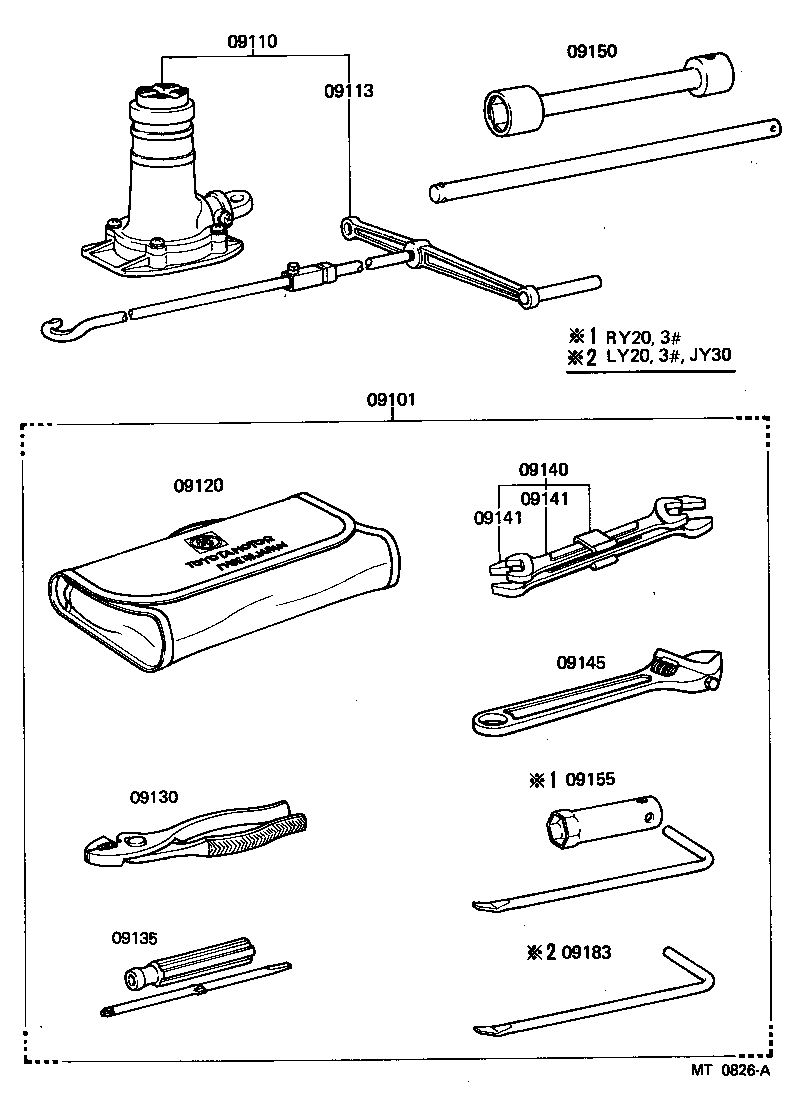

Click highlighted areas on diagram

diagram 09101 09110 09113 09120 09130 09135 09140 09141 09141 09145 09150 09155 09183
Part # Description Qty Price
09101 - TOOL SET, STANDARD W/O JACK
09102-25030

RY20,3#

 1
09102-25061

RY20,3#

 1
09110 - JACK ASSY
09110-25040

JY30,LY3#,RY20,3#

 1
09110-25040

LY20,30,RY20,3#..125,15T

 1
09113 - HANDLE, JACK
09113-25030

LY20,30,RY20,3#..125,15T

 1
09113-25031

JY30,LY3#,RY20,3#

 1
09120 - BAG, TOOL
09120-36020

JY30,LY3#,RY20,3#

 1
09120-36011

JY30,LY20,30,RY20,3#

 1
09130 - PLIERS
99913-11500

JY30,LY3#,RY20,3#

 1
09130-00010

JY30,LY20,30,RY20,3#

 1
09135 - DRIVER, SCREW
99915-10700

JY30,LY20,3#,RY20,3#

 1
09140 - SPANNER SET
09140-27010

JY30,LY20,3#,RY20,3#

 1
09141 - SPANNER
99914-11012

JY30,LY20,3#,RY20,3#

10 X 12,10X12

 1
99914-11417

JY30,LY20,3#,RY20,3#

14 X 17,14X17

 1
09141 - SPANNER
99914-11012

JY30,LY20,3#,RY20,3#

10 X 12,10X12

 1
99914-11417

JY30,LY20,3#,RY20,3#

14 X 17,14X17

 1
09145 - WRENCH, MONKEY
99911-10200

JY30,LY20,3#,RY20,3#

 1
09150 - WRENCH, HUB NUT BOX
09150-25010

LY20,3#,RY20,3#..125,15T

 1
09155 - WRENCH, SPARK PLUG
09155-44020

RY20,3#

 1
09183 - WRENCH, WHEEL CAP
09183-00010

JY30,LY20,3#

 1
