RY20L-JD (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )RY20,30..LHD

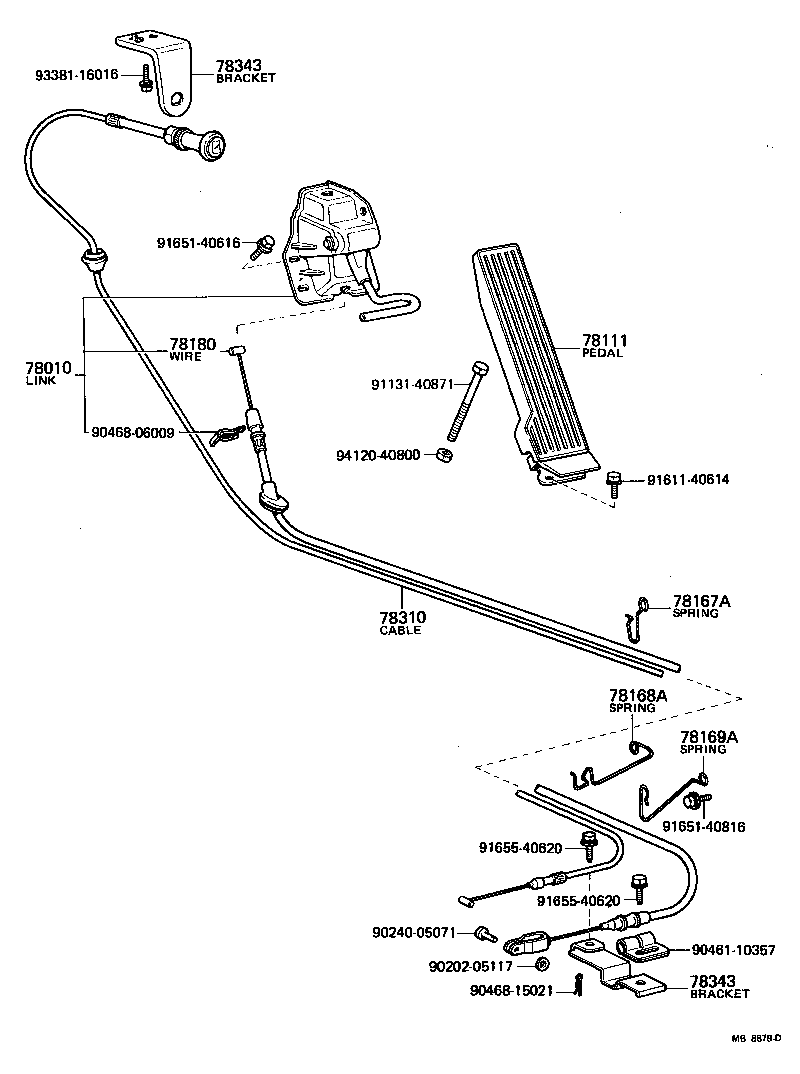

Click highlighted areas on diagram

diagram 78010 78111 78167A 78168A 78169A 78180 78310 78343 78343 9020205117 9024005071 9046110357 9046806009 9046815021 9113140871 9161140614 9165140616 9165140816 9165540620 9165540620 9338116016 9412040800
Part # Description Qty Price
78010 - LINK, ACCELERATOR
78180-95040

RY20,30..LHD

 1
78111 - PEDAL, ACCELERATOR
78110-95014

JY30,LY20,3#,RY20,3#

 1
78167A - SPRING, CLAMP, NO.2
78167-95010

JY30,RY20,3#..LHD

 1
78168A - SPRING, CLAMP, NO.3
78168-95010

JY30,RY20,3#

 1
78169A - SPRING, CLAMP, NO.4
78169-95014

RY20,3#

 1
78180 - WIRE ASSY, ACCELERATOR
78150-95046

RY20,30..LHD

 1
78310 - CABLE ASSY, CHOKE
78310-95028

RY20,30..LHD

 1
78343 - BRACKET, CHOKE ROD
78302-95602

RY20,30

 1
78312-95011

RY20,3#..LHD

INSTRUMENT PANEL

 1
78343 - BRACKET, CHOKE ROD
78302-95602

RY20,30

 1
78312-95011

RY20,3#..LHD

INSTRUMENT PANEL

 1
Common parts
90202-05117
90240-05071
90461-10357
90468-06009
90468-15021
91131-40871
91611-40614
91651-40616
91651-40816
91655-40620
93381-16016
94120-40800
