RY20L-JD (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )L,2L

Click highlighted areas on diagram

diagram 12261 12261A 12261A
Part # Description Qty Price

(7903- )12R

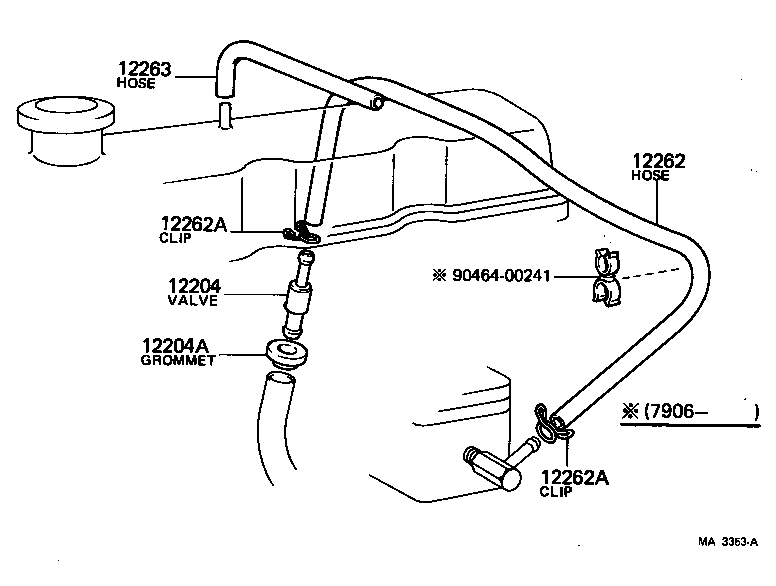

Click highlighted areas on diagram

diagram 12204 12204A 12262 12262A 12262A 12263 9046400241
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-41010

12R..RY20,30

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18180

12R..RY20,30

 1
12262 - HOSE, VENTILATION, NO.2
90445-14013

12R..RY20,30

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-13103

12R..RY20,30

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-13103

12R..RY20,30

 2
12263 - HOSE, VENTILATION, NO.3
90910-05132

12R..RY20,30

 1
Common parts
90464-00241
