RY16L-JRB (1972)

Toyota Toyoace

Production Jul 1972 - Feb 1979
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7109-7902)

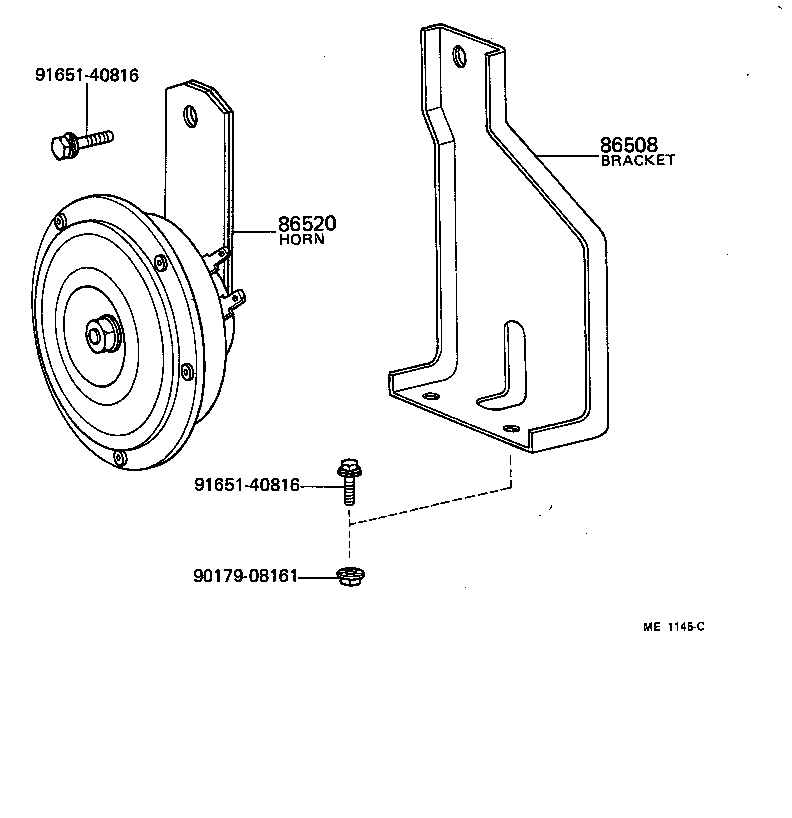

Click highlighted areas on diagram

diagram 86508 86520 9017908161 9165140816 9165140816
Part # Description Qty Price
86508 - BRACKET SUB-ASSY, HORN
86591-25010

JY16,RY1#

 1
86520 - HORN ASSY, LOW PITCHED
86520-25050

JY16,RY1#

 1
86520-25090

RY16..LHD

CHINA SPEC.

 1
86520-25080

JY16,RY1#

 1
86520-14010

JY16,RY1#

 1
Common parts
90179-08161
91651-40816
