RY16L-JRB (1972)

Toyota Toyoace

Production Jul 1972 - Feb 1979
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7109-7902)

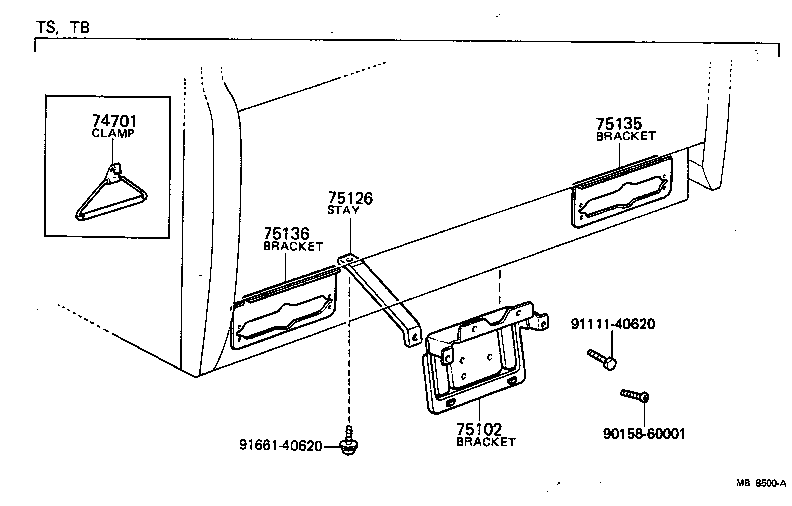

Click highlighted areas on diagram

diagram 74701 75102 75126 75135 75136 9015860001 9111140620 9166140620
Part # Description Qty Price
74701 - CLAMP SUB-ASSY, TOOL BAG
74701-95601

JY16,RY1#

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
66490-95016

JY16,RY1#..T3

 1
66490-95013

JY16,RY1#..T3

 1
Common parts
90158-60001
91111-40620
91661-40620
