RY16L-JRB (1972)

Toyota Toyoace

Production Jul 1972 - Feb 1979
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7109-7902)

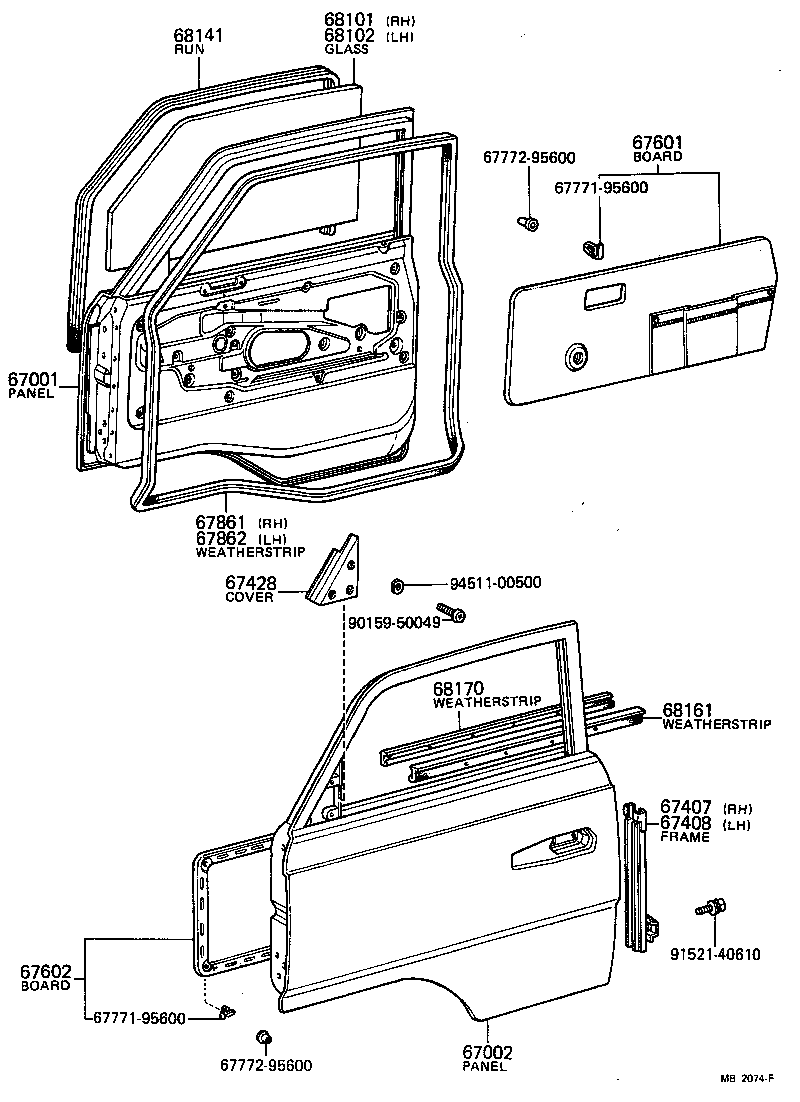

Click highlighted areas on diagram

diagram 67001 67002 67407 67408 67428 67601 67602 6777195600 6777195600 6777295600 6777295600 67861 67862 68101 68102 68141 68161 68170 9015950049 9152140610 9451100500
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67110-95032

JY16,RY1#

 1
67110-95033

JY16,RY1#..LHD

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67120-95038

JY16,RY1#..LHD

 1
67120-95038

JY16,RY1#

 1
67407 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67507-95010

JY16,RY1#

 1
67408 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67508-95010

JY16,RY1#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-9501101

RY1#

BLACK,BLACK

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-9501101

JY16,RY1#

BLACK,BLACK

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-95012

JY16,RY1#

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-95012

JY16,RY1#

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-95012

JY16,RY1#

TP.T=4.0

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68111-95012

JY16,RY1#

TP.T=4.0

 1
68141 - RUN, FRONT DOOR GLASS
68141-95011

JY16,RY1#

 2
68141-95010

JY16,RY1#

 2
68161 - WEATHERSTRIP, FRONT DOOR GLASS, OUTER
68107-95012

JY16,RY1#

 2
68160-95010

JY16,RY1#

 2
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68105-95012

JY16,RY1#

 2
68160-95010

JY16,RY1#

 2
68107-95012

JY16,RY1#

 2
Common parts
67771-95600
67772-95600
90159-50049
91521-40610
94511-00500
