Toyota Toyoace RY16 BRAKE TUBE & CLAMP

Manufacturers Home
Toyota
GR
TOYOACE
RY16L-JRB (1972)
4708 - BRAKE TUBE & CLAMP

RY16L-JRB (1972)

Toyota Toyoace

Production Jul 1972 - Feb 1979

Engine 5R

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

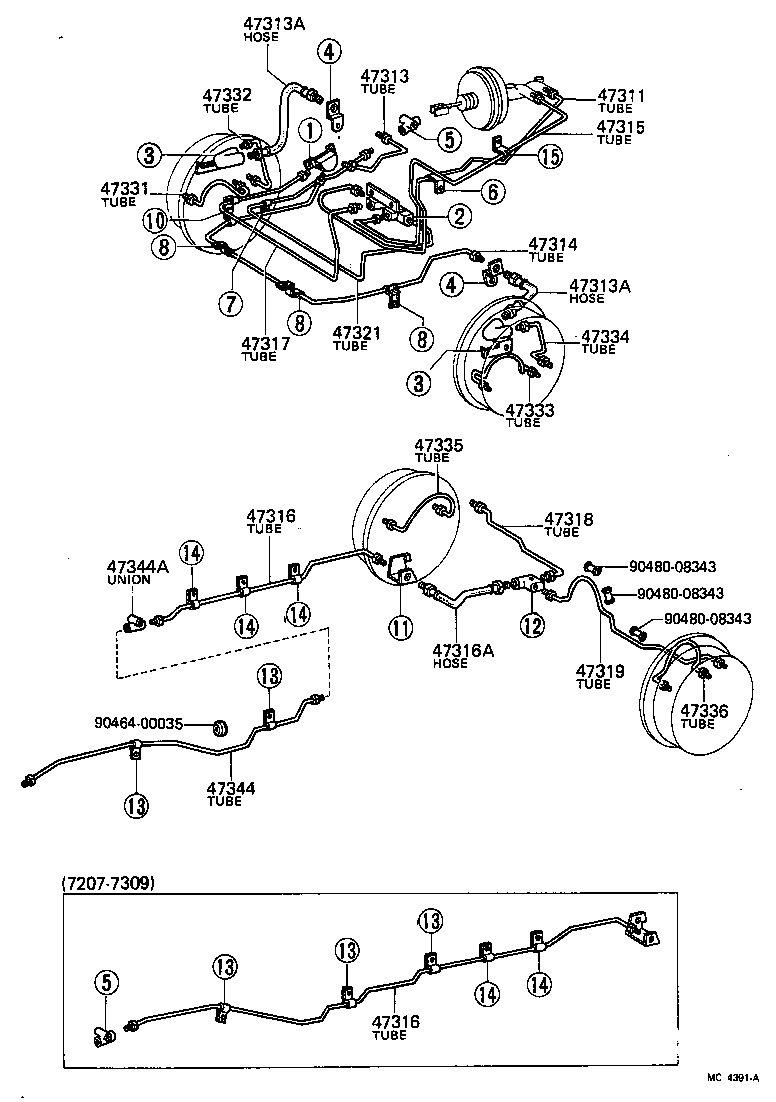

(7207-7902)JY16,RY16..LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47337-25020	JY16,RY16..LHD	07/1972 - 02/1979	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-25060	JY16,RY16..20T	07/1972 - 02/1979	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-31300	JY16,RY1# L=300	09/1971 - 12/1972	2
96940-33004	JY16,RY16..20T	02/1979 - 02/1979	2
96940-31301	JY16,RY1# L=300	12/1972 - 12/1973	2
96940-31304	JY16,RY16..20T	12/1973 - 02/1979	2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-31300	JY16,RY1# L=300	09/1971 - 12/1972	2
96940-33004	JY16,RY16..20T	02/1979 - 02/1979	2
96940-31301	JY16,RY1# L=300	12/1972 - 12/1973	2
96940-31304	JY16,RY16..20T	12/1973 - 02/1979	2
47314 - TUBE, FRONT BRAKE, NO.4
47314-25080	JY16,RY16..20T	07/1972 - 02/1979	1
47315 - TUBE, FRONT BRAKE, NO.5
47338-25020	JY16,RY16..LHD	07/1972 - 02/1979	1
47316 - TUBE, FRONT BRAKE, NO.6
47339-25010	JY16,RY16	07/1972 - 09/1973	1
47339-25012	JY16,RY16	09/1973 - 02/1979	1
47316 - TUBE, FRONT BRAKE, NO.6
47339-25010	JY16,RY16	07/1972 - 09/1973	1
47339-25012	JY16,RY16	09/1973 - 02/1979	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96920-31442	JY16,RY16 L=440	07/1972 - 09/1973	1
96912-31443	JY16,RY16 L=440	11/1974 - 02/1979	1
96912-31442	JY16,RY16 L=440	09/1973 - 11/1974	1
96912-34405	JY16,RY16	02/1979 - 02/1979	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-25020	JY16,RY16	07/1972 - 02/1979	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-36081	JY16,RY16..20T	07/1972 - 08/1977	1
47326-25011	JY16,RY16..20T	08/1977 - 02/1979	1
47319 - TUBE, FRONT BRAKE, NO.9
47327-25011	JY16,RY16..20T	08/1977 - 02/1979	1
47319-36072	JY16,RY16..20T	07/1972 - 08/1977	1
47321 - TUBE, REAR BRAKE, NO.1
47328-25010	JY16,RY16	07/1972 - 02/1979	1
47331 - TUBE, REAR BRAKE, NO.10
47331-36030	JY16,RY16..20T	07/1972 - 08/1977	1
47342-36020	JY16,RY16..20T	08/1977 - 02/1979	1
47332 - TUBE, REAR BRAKE, NO.11
47332-25020	JY16,RY16..20T	07/1972 - 08/1977	1
47341-36010	JY16,RY16..20T	08/1977 - 02/1979	1
47333 - TUBE, REAR BRAKE, NO.12
47331-36030	JY16,RY16..20T	07/1972 - 08/1977	1
47342-36020	JY16,RY16..20T	08/1977 - 02/1979	1
47334 - TUBE, REAR BRAKE, NO.13
47343-36010	JY16,RY16..20T	08/1977 - 02/1979	1
47334-25010	JY16,RY16..20T	07/1972 - 08/1977	1
47335 - TUBE, REAR BRAKE, NO.14
47335-36010	JY16,RY16..20T	07/1972 - 08/1977	1
47345-36010	JY16,RY16..20T	08/1977 - 02/1979	1
47336 - TUBE, REAR BRAKE, NO.15
47335-36010	JY16,RY16..20T	07/1972 - 08/1977	1
47345-36010	JY16,RY16..20T	08/1977 - 02/1979	1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47315-25050	JY16,RY16..20T	09/1973 - 02/1979	1
47344A - UNION, NO.2(FOR REAR BRAKE TUBE)
90412-12053	JY16,RY16	09/1973 - 02/1979	1
Common parts
90464-00035
90480-08343

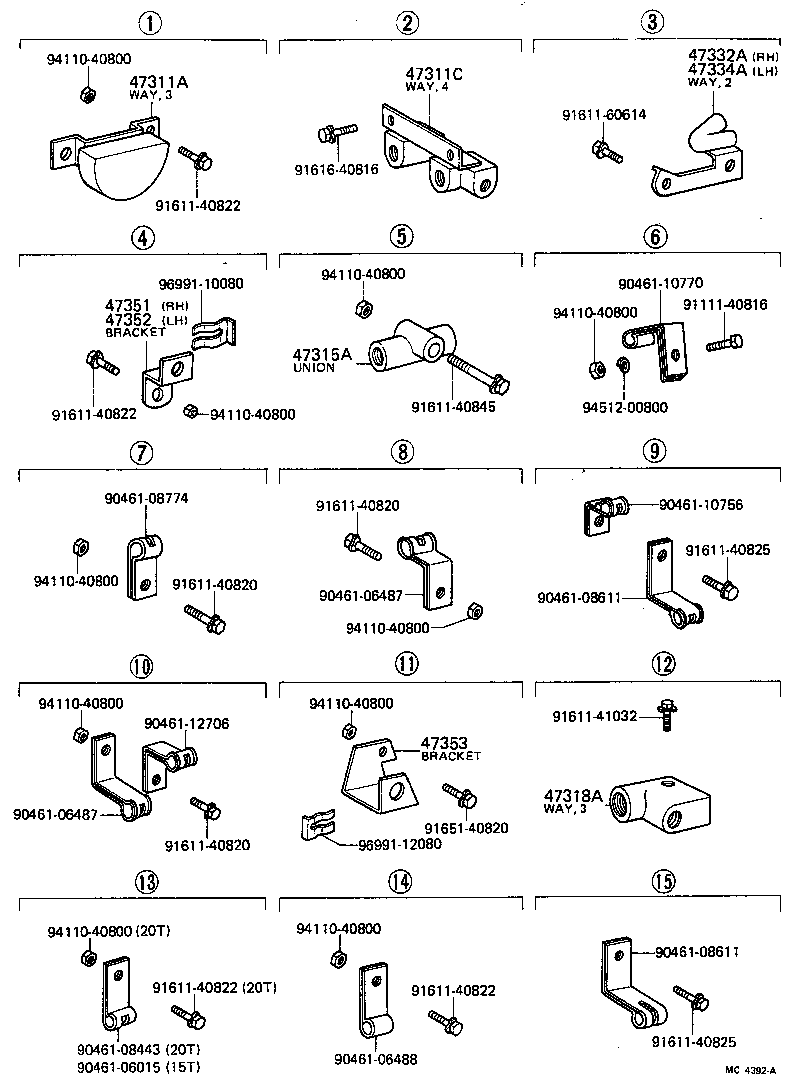

(7207-7902)JY16,RY16

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10127	JY16,RY16 3 WAY	07/1972 - 02/1979	1
47311C - UNION(FOR FRONT BRAKE TUBE)
90414-12046	JY16,RY16 4 WAY	07/1972 - 02/1979	1
47315A - WAY OR UNION(FOR REAR BRAKE TUBE)
90412-12058	JY16,RY16	07/1972 - 09/1973	1
90412-12053	JY16,RY16	09/1973 - 02/1979	1
47318A - WAY(FOR REAR RH BRAKE TUBE)
90413-10023	JY16,RY1#	09/1971 - 09/1973	1
90413-12122	JY16,RY16	09/1973 - 02/1979	1
47332A - WAY(FOR BRAKE WHEEL CYLINDER FRONT RH TUBE)
90412-10059	JY16,RY16..20T	07/1972 - 08/1977	1
90412-10037	JY16,RY16..20T	08/1977 - 02/1979	1
47334A - WAY(FOR BRAKE WHEEL CYLINDER FRONT LH TUBE)
90412-10043	JY16,RY16..20T	08/1977 - 02/1979	1
90412-10060	JY16,RY16..20T	07/1972 - 08/1977	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47352-25040	JY16,RY16	07/1972 - 06/1973	1
47352-25041	JY16,RY16..20T	06/1973 - 02/1979	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-25041	JY16,RY16..20T	06/1973 - 02/1979	1
47352-25040	JY16,RY16	07/1972 - 06/1973	1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47351-36021	JY16,RY16	09/1973 - 12/1974	1
47351-36020	JY16,RY16	07/1972 - 09/1973	1
47351-36022	JY16,RY16	12/1974 - 02/1979	1
Common parts
90461-06015
90461-06487
90461-06488
90461-08443
90461-08611
90461-08774
90461-10756
90461-10770
90461-12706
91111-40816
91611-40820
91611-40822
91611-40825
91611-40845
91611-41032
91611-60614
91616-40816
91651-40820
94110-40800
94512-00800
96991-10080
96991-12080

RY16L-JRB (1972)

(7207-7902)JY16,RY16..LHD

(7207-7902)JY16,RY16
