RY16L-JR (1972)
Toyota Toyoace
Production
Jul 1972
-
Feb 1979
Engine
5R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

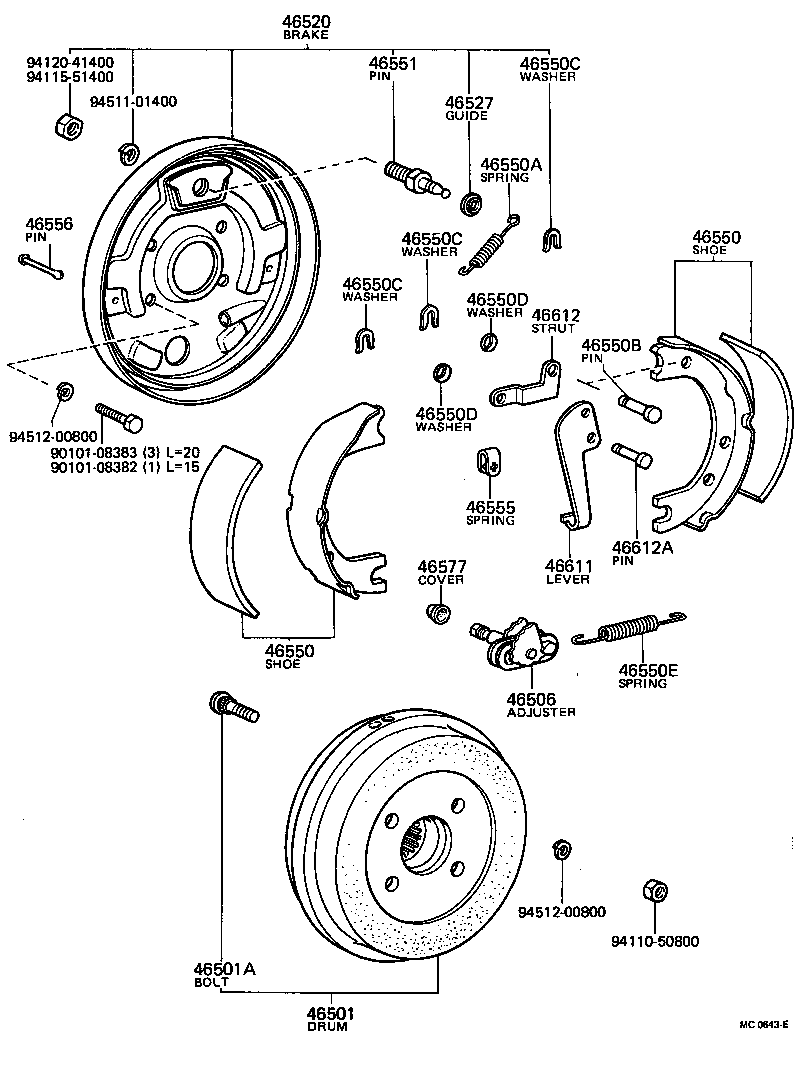

(7109-7902)RY1# ; (7207-7708)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-35020 |
RY16 |
1 | ||
| 46501-35021 |
RY16 |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| 90114-10007 |
JY16,RY16 |
4 | ||
| 90114-11124 |
JY16,RY16 |
4 | ||
| 46506 - ADJUSTER SUB-ASSY, PARKING BRAKE SHOE, RH OR CENTER | ||||
| 46506-35010 |
RY1# |
1 | ||
| 46506-35011 |
RY1# |
1 | ||
| 46520 - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46520-25901 |
RY1# |
1 | ||
| 46527 - GUIDE, SHOE(FOR PARKING BRAKE) | ||||
| 46527-35010 |
JY16,RY1# |
1 | ||
| 46527-35010 |
RY1# |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-35012 |
RY1# |
2 | ||
| 46550-35013 |
RY1# |
2 | ||
| 46550-60011 |
RY1# |
2 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-35012 |
RY1# |
2 | ||
| 46550-35013 |
RY1# |
2 | ||
| 46550-60011 |
RY1# |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-16052 |
RY1# |
2 | ||
| 90506-16052 |
JY16,RY1# |
2 | ||
| 46550B - PIN(FOR PARKING BRAKE SHOE) | ||||
| 90249-08016 |
RY1# |
2 | ||
| 90249-08061 |
RY1# |
1 | ||
| 90249-08061 |
JY16,RY1# |
1 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-09005 |
RY1# ID=11.5 |
1 | ||
| 90213-04004 |
JY16,RY1# ID= 4 |
3 | ||
| 90213-09005 |
JY16,RY1# ID=11.5 |
1 | ||
| 90213-06013 |
JY16,RY1# ID= 4 |
3 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-09005 |
RY1# ID=11.5 |
1 | ||
| 90213-04004 |
JY16,RY1# ID= 4 |
3 | ||
| 90213-09005 |
JY16,RY1# ID=11.5 |
1 | ||
| 90213-06013 |
JY16,RY1# ID= 4 |
3 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-09005 |
RY1# ID=11.5 |
1 | ||
| 90213-04004 |
JY16,RY1# ID= 4 |
3 | ||
| 90213-09005 |
JY16,RY1# ID=11.5 |
1 | ||
| 90213-06013 |
JY16,RY1# ID= 4 |
3 | ||
| 46550D - WASHER, WAVE(FOR PARKING BRAKE SHOE) | ||||
| 90206-08024 |
JY16,RY1# |
3 | ||
| 90206-08024 |
RY1# |
3 | ||
| 46550D - WASHER, WAVE(FOR PARKING BRAKE SHOE) | ||||
| 90206-08024 |
JY16,RY1# |
3 | ||
| 90206-08024 |
RY1# |
3 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14048 |
JY16,RY1# |
1 | ||
| 90506-14048 |
RY1# |
1 | ||
| 46551 - PIN, ANCHOR(FOR PARKING BRAKE) | ||||
| 46551-35010 |
JY16,RY1# |
1 | ||
| 46551-35010 |
RY1# |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 46555-35010 |
JY16,RY1# |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 46556-35010 |
JY16,RY1# |
2 | ||
| 46577 - COVER, ADJUSTING CAM HOLE | ||||
| 46577-35010 |
JY16,RY1# |
1 | ||
| 46577-35010 |
RY1# |
1 | ||
| 46611 - LEVER, PARKING BRAKE SHOE, RH OR CENTER | ||||
| 46611-35010 |
RY1# |
1 | ||
| 46611-35010 |
JY16,RY1# |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| 46612-35010 |
JY16,RY1# |
1 | ||
| 46612-35010 |
RY1# |
1 | ||
| 46612A - PIN(FOR PARKING BRAKE SHOE LEVER STRUT) | ||||
| 90249-08005 |
JY16,RY1# |
1 | ||
| 90249-08061 |
JY16,RY1# |
1 | ||
| 90249-08061 |
RY1# |
1 | ||
| Common parts | ||||
| 90101-08382 | ||||
| 90101-08383 | ||||
| 94110-50800 | ||||
| 94115-51400 | ||||
| 94120-41400 | ||||
| 94511-01400 | ||||
| 94512-00800 | ||||

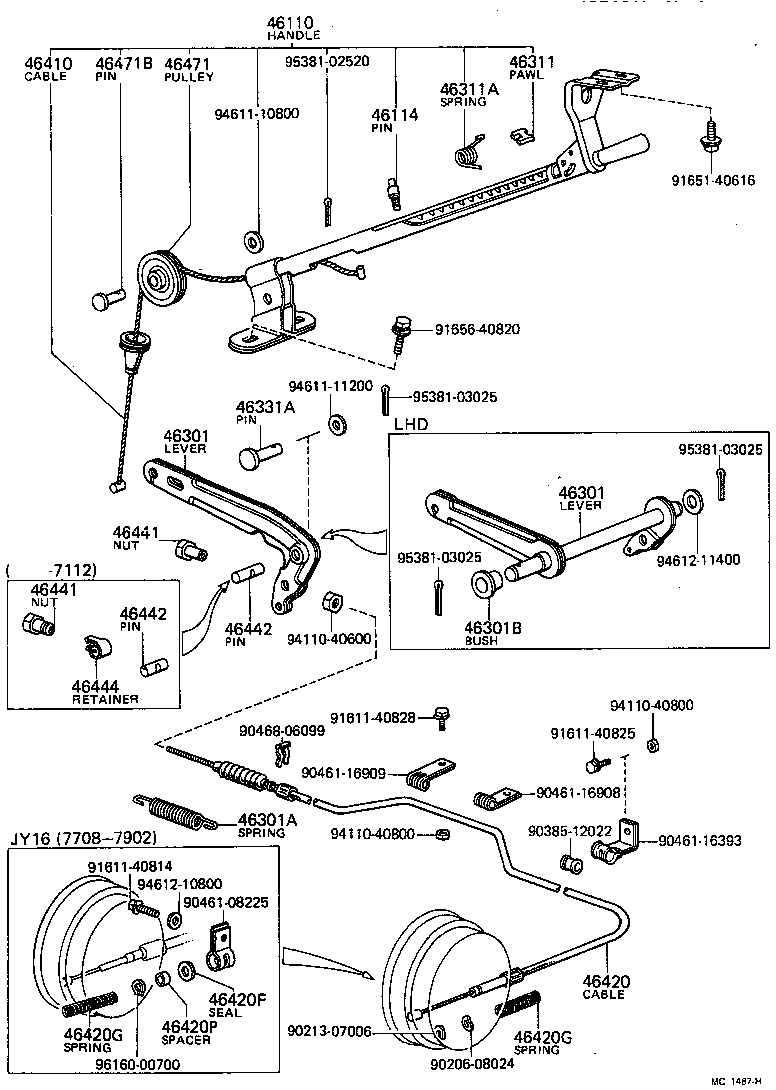

(7109-7902)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46110 - HANDLE ASSY, PARKING BRAKE CONTROL | ||||
| 46110-25040 |
JY16,RY1#..LHD |
1 | ||
| 46114 - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-30020 |
JY16,RY1# |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46307-25020 |
JY16,RY1#..LHD |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46307-25020 |
JY16,RY1#..LHD |
1 | ||
| 46301A - SPRING, TENSION(FOR INTERMEDIATE LEVER) | ||||
| 90506-18090 |
JY16,RY1# |
1 | ||
| 46301B - BUSH(FOR INTERMEDIATE LEVER) | ||||
| 90389-14010 |
JY16,RY1#..LHD |
1 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-30030 |
JY16,RY1# |
1 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90508-07040 |
JY16,RY1# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-25060 |
JY16,RY1#..LHD |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-25010 |
JY16,RY1# |
1 | ||
| 46420-25011 |
RY1# |
1 | ||
| 46420G - SPRING(FOR PARKING CABLE INNER WIRE SET) | ||||
| 90501-14121 |
JY16,RY1# |
1 | ||
| 90501-14121 |
RY1# |
1 | ||
| 46420G - SPRING(FOR PARKING CABLE INNER WIRE SET) | ||||
| 90501-14121 |
JY16,RY1# |
1 | ||
| 90501-14121 |
RY1# |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-36010 |
RY1# |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-36010 |
RY1# |
1 | ||
| 46442 - PIN, WIRE PIVOT | ||||
| 46442-35010 |
JY16,RY1# |
1 | ||
| 46442 - PIN, WIRE PIVOT | ||||
| 46442-35010 |
JY16,RY1# |
1 | ||
| 46444 - RETAINER, CABLE ADJUSTING | ||||
| 46444-36011 |
RY1# |
1 | ||
| 46471 - PULLEY, WIRE | ||||
| 46471-20010 |
JY16,RY1# |
1 | ||
| 46471B - PIN, W/HOLE(FOR WIRE PULLEY SET) | ||||
| 90240-08062 |
JY16,RY1# |
1 | ||
| Common parts | ||||
| 90206-08024 | ||||
| 90213-07006 | ||||
| 90385-12022 | ||||
| 90461-08225 | ||||
| 90461-16393 | ||||
| 90461-16908 | ||||
| 90461-16909 | ||||
| 90468-06099 | ||||
| 91611-40814 | ||||
| 91611-40825 | ||||
| 91611-40828 | ||||
| 91651-40616 | ||||
| 91656-40820 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94611-10800 | ||||
| 94611-11200 | ||||
| 94612-10800 | ||||
| 94612-11400 | ||||
| 95381-02520 | ||||
| 95381-03025 | ||||
| 96160-00700 | ||||
