RY16L-JR (1972)

Toyota Toyoace

Production Jul 1972 - Feb 1979
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7207-7902)5R

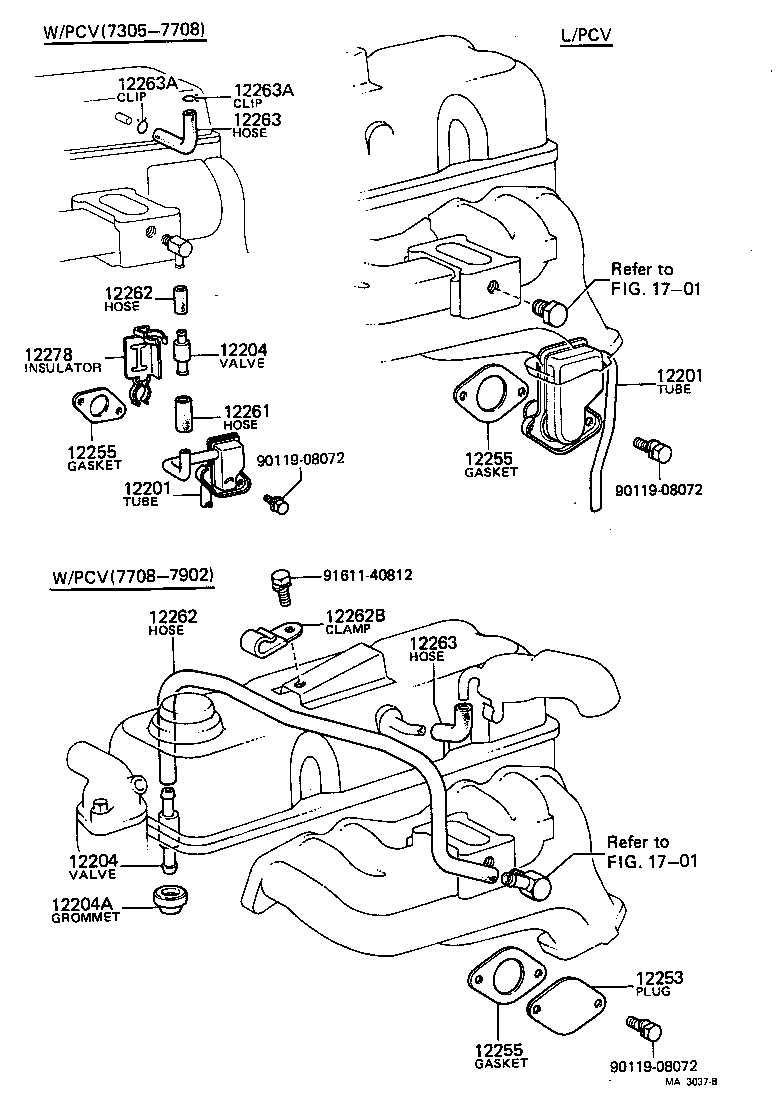

Click highlighted areas on diagram

diagram 12201 12201 12204 12204 12204A 12253 12255 12255 12255 12261 12262 12262 12262B 12263 12263 12263A 12263A 12278 1701 1701 9011908072 9011908072 9011908072 9161140812
Part # Description Qty Price
12201 - TUBE SUB-ASSY, VENTILATION
12201-44030

5R..RY16

L/PCV

 1
12201-44031

5R..RY16

L/PCV

 1
12201 - TUBE SUB-ASSY, VENTILATION
12201-44030

5R..RY16

L/PCV

 1
12201-44031

5R..RY16

L/PCV

 1
12255 - GASKET, VENTILATION
12255-25010

5R..RY16

 1
12255-25010

12R,5R..RY1#

 1
12255 - GASKET, VENTILATION
12255-25010

5R..RY16

 1
12255-25010

12R,5R..RY1#

 1
12255 - GASKET, VENTILATION
12255-25010

5R..RY16

 1
12255-25010

12R,5R..RY1#

 1
Common parts
90119-08072
91611-40812
Linked diagrams
1701
