RY16-JR (1972)
Toyota Toyoace

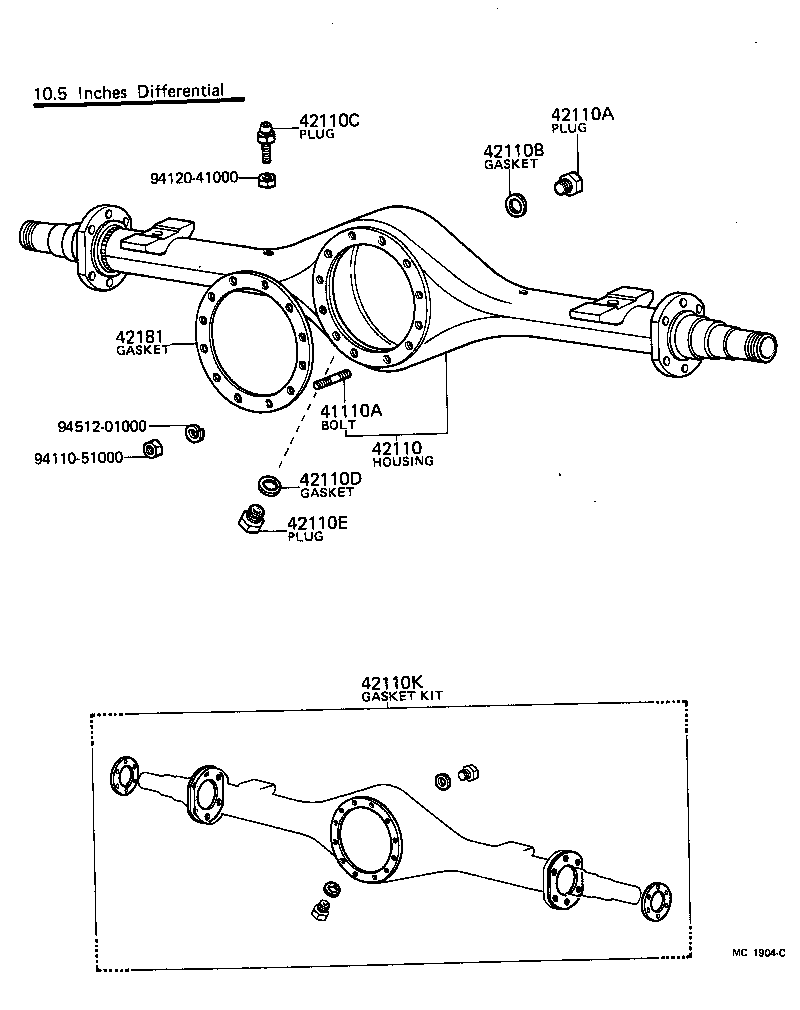

(7207-7902)20T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10082 |
JY16,RY16..20T S=19 & 12.5,L=43.5,L=40,S=19&12 |
12 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-36135 |
JY16,RY16 |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18049 |
JY16,RY1# |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
JY16,RY1# |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03044 |
JY16,RY16..20T |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
JY16,RY1# |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
JY16,RY1# |
1 | ||
| 42110K - GASKET KIT, DIFFERENTIAL CARRIER | ||||
| 04412-36020 |
JY16,RY16..20T |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-36030 |
JY16,RY16..20T |
1 | ||
| Common parts | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94512-01000 | ||||

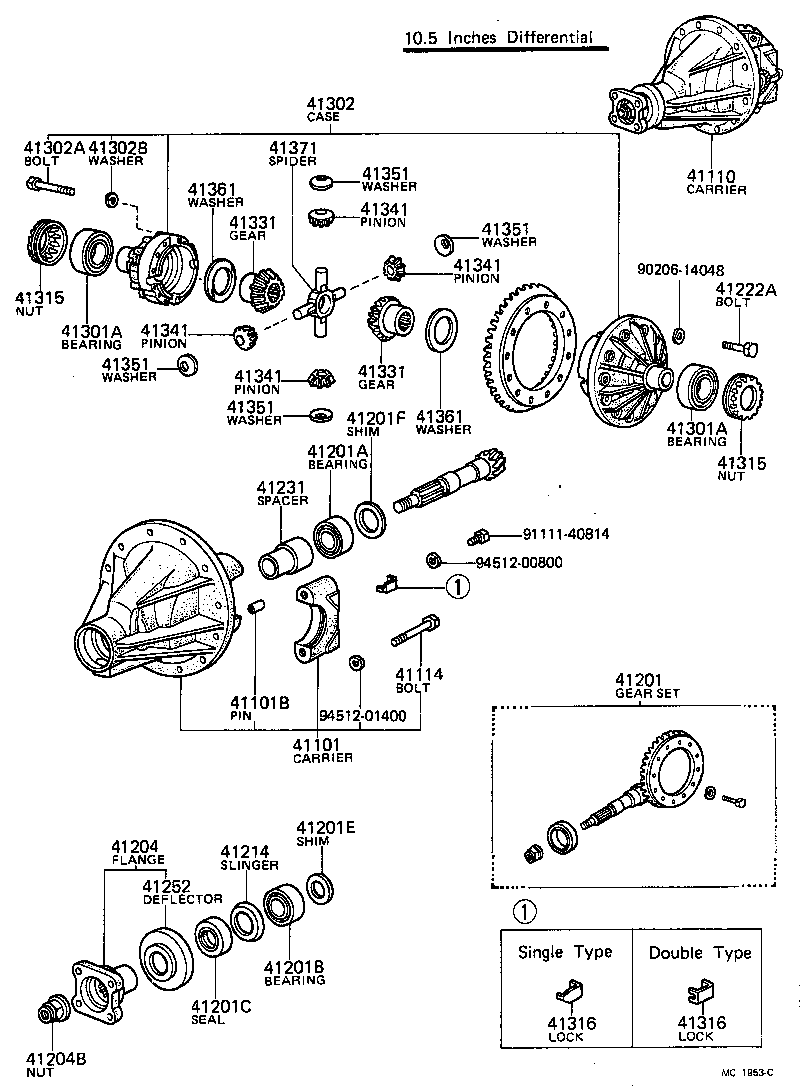

(7207-7708)20T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-36021 |
JY16,RY16..20T 10.5 INCHES |
1 | ||
| 41101-36030 |
JY16,RY16..20T 10.5 INCHES |
1 | ||
| 41101B - PIN, RING (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90253-19011 |
JY16,RY16..20T |
4 | ||
| 90253-19001 |
JY16,RY16..20T ID=14.2,OD=18.5 |
4 | ||
| 90253-21001 |
JY16,RY16..20T ID=16.2,OD=20.5 |
4 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-36100 |
RY16 R=37:6=6.167 |
1 | ||
| 41110-36120 |
RY16 R=41:6=6.833 |
1 | ||
| 41110-36121 |
RY16 R=41:6=6.833 |
1 | ||
| 41110-36210 |
RY16 R=37:6=6.167 |
1 | ||
| 41110-36101 |
RY16 R=37:6=6.167 |
1 | ||
| 41110-36220 |
RY16 R=41:6=6.833 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90101-16005 |
JY16,RY16..20T 14-1.5PX86-26 |
4 | ||
| 90101-14005 |
JY16,RY16..20T 14-1.5PX85.5-25 |
4 | ||
| 90101-14216 |
JY16,RY16..20T |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-39037 |
RY16 N=37:6 |
1 | ||
| 41201-39047 |
RY16 N=41:6 |
1 | ||
| 41201-39048 |
RY16 N=41:6 |
1 | ||
| 41201-39335 |
RY16 *FGR=37:6,N=37:6 |
1 | ||
| 41201-39345 |
RY16 *FGR=41:6,N=41:6 |
1 | ||
| 41201-39038 |
RY16 N=37:6 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-40026 |
JY16,RY16..20T |
1 | ||
| 90366-40001 |
JY16,RY16..20T |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-35027 |
JY16,RY16..20T |
1 | ||
| 90366-35023 |
JY16,RY16..20T |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-48089 |
JY16,RY16 |
1 | ||
| 90311-48135 |
JY16,RY16..20T |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-35066 |
JY16,RY16..20T T=0.25 |
2 | ||
| 90564-35067 |
JY16,RY16..20T T=0.3 |
2 | ||
| 90564-35122 |
JY16,RY16..20T T=0.40 |
2 | ||
| 90564-35023 |
JY16,RY16..20T T=1.88,T=1.88 |
1 | ||
| 90564-35069 |
JY16,RY16..20T T=0.45 |
2 | ||
| 90564-35020 |
JY16,RY16..20T T=1.82,T=1.82 |
1 | ||
| 90564-35019 |
JY16,RY16..20T T=1.80,T=1.80 |
1 | ||
| 90564-35021 |
JY16,RY16..20T T=1.84,T=1.84 |
1 | ||
| 90564-35026 |
JY16,RY16..20T T=2.10,T=2.10 |
1 | ||
| 90564-35068 |
JY16,RY16..20T T=0.35 |
2 | ||
| 90564-35025 |
JY16,RY16..20T T=2.00,T=2.00 |
1 | ||
| 90564-35024 |
JY16,RY16..20T T=1.90,T=1.90 |
1 | ||
| 90564-35028 |
JY16,RY16..20T T=2.30,T=2.30 |
1 | ||
| 90564-35027 |
JY16,RY16..20T T=2.20,T=2.20 |
1 | ||
| 90564-35029 |
JY16,RY16..20T T=2.40,T=2.40 |
1 | ||
| 90564-35030 |
JY16,RY16..20T T=2.50,T=2.50 |
1 | ||
| 90564-35035 |
JY16,RY16..20T T=3.00,T=3.00 |
1 | ||
| 90564-35031 |
JY16,RY16..20T T=2.60,T=2.60 |
1 | ||
| 90564-35022 |
JY16,RY16..20T T=1.86,T=1.86 |
1 | ||
| 90564-35032 |
JY16,RY16..20T T=2.70,T=2.70 |
1 | ||
| 90564-35034 |
JY16,RY16..20T T=2.90,T=2.90 |
1 | ||
| 90564-35033 |
JY16,RY16..20T T=2.80,T=2.80 |
1 | ||
| 41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) | ||||
| 90564-40114 |
JY16,RY16 T=0.30 |
2 | ||
| 90564-40117 |
JY16,RY16 T=0.45 |
2 | ||
| 90564-40116 |
JY16,RY16 T=0.40 |
2 | ||
| 90564-40118 |
JY16,RY16 T=0.50 |
2 | ||
| 90564-40119 |
JY16,RY16 T=0.55 |
2 | ||
| 90564-40115 |
JY16,RY16 T=0.35 |
2 | ||
| 90201-40551 |
JY16,RY16..20T T=1.05,T=1.05 |
1 | ||
| 90201-40553 |
JY16,RY16..20T T=1.15,T=1.15 |
1 | ||
| 90201-40558 |
JY16,RY16..20T T=1.40,T=1.40 |
1 | ||
| 90201-40556 |
JY16,RY16..20T T=1.30,T=1.30 |
1 | ||
| 90201-40552 |
JY16,RY16..20T T=1.10,T=1.10 |
1 | ||
| 90201-40555 |
JY16,RY16..20T T=1.25,T=1.25 |
1 | ||
| 90201-40560 |
JY16,RY16..20T T=1.50,T=1.50 |
1 | ||
| 90201-40557 |
JY16,RY16..20T T=1.35,T=1.35 |
1 | ||
| 90201-40561 |
JY16,RY16..20T T=1.55,T=1.55 |
1 | ||
| 90201-40559 |
JY16,RY16..20T T=1.45,T=1.45 |
1 | ||
| 90201-40554 |
JY16,RY16..20T T=1.20,T=1.20 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-36020 |
JY16,RY16 |
1 | ||
| 41204-36030 |
JY16,RY16..20T |
1 | ||
| 41204-36031 |
JY16,RY16..20T |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-20034 |
JY16,RY16..20T |
1 | ||
| 90179-22001 |
JY16,RY16..20T |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-36010 |
JY16,RY16..20T |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-14315 |
JY16,RY16..20T |
12 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-36010 |
JY16,RY16..20T |
1 | ||
| 41231-36040 |
JY16,RY16..20T |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-36010 |
JY16,RY16..20T |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-52043 |
JY16,RY16..20T |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-52043 |
JY16,RY16..20T |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-36021 |
JY16,RY16..20T |
1 | ||
| 41301-36030 |
JY16,RY16..20T |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90101-12020 |
JY16,RY16..20T |
12 | ||
| 90101-10114 |
JY16,RY16..20T |
12 | ||
| 41302B - WASHER, SPRING(FOR REAR DIFFERENTIAL CASE) | ||||
| 94512-12007 |
JY16,RY16..20T |
12 | ||
| 94512-01000 |
JY16,RY16..20T |
12 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-36011 |
JY16,RY16..20T |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-36011 |
JY16,RY16..20T |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41317-36010 |
JY16,RY16..20T DOUBLE TYPE |
2 | ||
| 41316-36011 |
JY16,RY16..20T SINGLE TYPE |
2 | ||
| 41316-36010 |
JY16,RY16..20T SINGLE TYPE |
2 | ||
| 41317-36011 |
JY16,RY16..20T DOUBLE TYPE |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41317-36010 |
JY16,RY16..20T DOUBLE TYPE |
2 | ||
| 41316-36011 |
JY16,RY16..20T SINGLE TYPE |
2 | ||
| 41316-36010 |
JY16,RY16..20T SINGLE TYPE |
2 | ||
| 41317-36011 |
JY16,RY16..20T DOUBLE TYPE |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35020 |
JY16,RY12,16 N=16 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35020 |
JY16,RY12,16 N=16 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55012 |
JY16,RY12,16 N=10 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55012 |
JY16,RY12,16 N=10 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55012 |
JY16,RY12,16 N=10 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55012 |
JY16,RY12,16 N=10 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
JY16,RY16..20T |
4 | ||
| 41351-35010 |
JY16,RY16 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
JY16,RY16..20T |
4 | ||
| 41351-35010 |
JY16,RY16 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
JY16,RY16..20T |
4 | ||
| 41351-35010 |
JY16,RY16 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
JY16,RY16..20T |
4 | ||
| 41351-35010 |
JY16,RY16 |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60010 |
JY16,RY12,16 T=1.60,T=1.60 |
2 | ||
| 41361-35010 |
JY16,RY12,16 T=1.60 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60010 |
JY16,RY12,16 T=1.60,T=1.60 |
2 | ||
| 41361-35010 |
JY16,RY12,16 T=1.60 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-36010 |
JY16,RY16 |
1 | ||
| 41371-36011 |
JY16,RY16..20T |
1 | ||
| Common parts | ||||
| 90206-14048 | ||||
| 91111-40814 | ||||
| 94512-00800 | ||||
| 94512-01400 | ||||

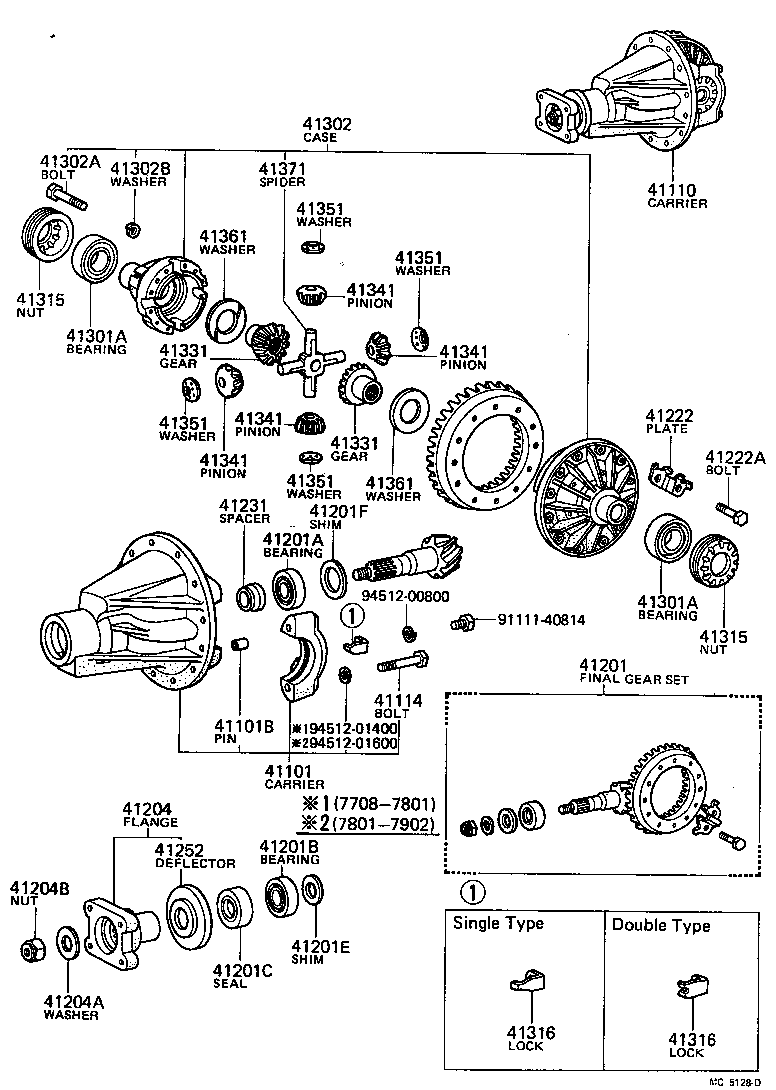

(7708-7902)20T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-36021 |
JY16,RY16..20T 10.5 INCHES |
1 | ||
| 41101-36030 |
JY16,RY16..20T 10.5 INCHES |
1 | ||
| 41101B - PIN, RING (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90253-19011 |
JY16,RY16..20T |
4 | ||
| 90253-19001 |
JY16,RY16..20T ID=14.2,OD=18.5 |
4 | ||
| 90253-21001 |
JY16,RY16..20T ID=16.2,OD=20.5 |
4 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-36100 |
RY16 R=37:6=6.167 |
1 | ||
| 41110-36120 |
RY16 R=41:6=6.833 |
1 | ||
| 41110-36121 |
RY16 R=41:6=6.833 |
1 | ||
| 41110-36210 |
RY16 R=37:6=6.167 |
1 | ||
| 41110-36101 |
RY16 R=37:6=6.167 |
1 | ||
| 41110-36220 |
RY16 R=41:6=6.833 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90101-16005 |
JY16,RY16..20T 14-1.5PX86-26 |
4 | ||
| 90101-14005 |
JY16,RY16..20T 14-1.5PX85.5-25 |
4 | ||
| 90101-14216 |
JY16,RY16..20T |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-39037 |
RY16 N=37:6 |
1 | ||
| 41201-39047 |
RY16 N=41:6 |
1 | ||
| 41201-39048 |
RY16 N=41:6 |
1 | ||
| 41201-39335 |
RY16 *FGR=37:6,N=37:6 |
1 | ||
| 41201-39345 |
RY16 *FGR=41:6,N=41:6 |
1 | ||
| 41201-39038 |
RY16 N=37:6 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-40026 |
JY16,RY16..20T |
1 | ||
| 90366-40001 |
JY16,RY16..20T |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-35027 |
JY16,RY16..20T |
1 | ||
| 90366-35023 |
JY16,RY16..20T |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-48089 |
JY16,RY16 |
1 | ||
| 90311-48135 |
JY16,RY16..20T |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-35066 |
JY16,RY16..20T T=0.25 |
2 | ||
| 90564-35067 |
JY16,RY16..20T T=0.3 |
2 | ||
| 90564-35122 |
JY16,RY16..20T T=0.40 |
2 | ||
| 90564-35023 |
JY16,RY16..20T T=1.88,T=1.88 |
1 | ||
| 90564-35069 |
JY16,RY16..20T T=0.45 |
2 | ||
| 90564-35020 |
JY16,RY16..20T T=1.82,T=1.82 |
1 | ||
| 90564-35019 |
JY16,RY16..20T T=1.80,T=1.80 |
1 | ||
| 90564-35021 |
JY16,RY16..20T T=1.84,T=1.84 |
1 | ||
| 90564-35026 |
JY16,RY16..20T T=2.10,T=2.10 |
1 | ||
| 90564-35068 |
JY16,RY16..20T T=0.35 |
2 | ||
| 90564-35025 |
JY16,RY16..20T T=2.00,T=2.00 |
1 | ||
| 90564-35024 |
JY16,RY16..20T T=1.90,T=1.90 |
1 | ||
| 90564-35028 |
JY16,RY16..20T T=2.30,T=2.30 |
1 | ||
| 90564-35027 |
JY16,RY16..20T T=2.20,T=2.20 |
1 | ||
| 90564-35029 |
JY16,RY16..20T T=2.40,T=2.40 |
1 | ||
| 90564-35030 |
JY16,RY16..20T T=2.50,T=2.50 |
1 | ||
| 90564-35035 |
JY16,RY16..20T T=3.00,T=3.00 |
1 | ||
| 90564-35031 |
JY16,RY16..20T T=2.60,T=2.60 |
1 | ||
| 90564-35022 |
JY16,RY16..20T T=1.86,T=1.86 |
1 | ||
| 90564-35032 |
JY16,RY16..20T T=2.70,T=2.70 |
1 | ||
| 90564-35034 |
JY16,RY16..20T T=2.90,T=2.90 |
1 | ||
| 90564-35033 |
JY16,RY16..20T T=2.80,T=2.80 |
1 | ||
| 41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) | ||||
| 90564-40114 |
JY16,RY16 T=0.30 |
2 | ||
| 90564-40117 |
JY16,RY16 T=0.45 |
2 | ||
| 90564-40116 |
JY16,RY16 T=0.40 |
2 | ||
| 90564-40118 |
JY16,RY16 T=0.50 |
2 | ||
| 90564-40119 |
JY16,RY16 T=0.55 |
2 | ||
| 90564-40115 |
JY16,RY16 T=0.35 |
2 | ||
| 90201-40551 |
JY16,RY16..20T T=1.05,T=1.05 |
1 | ||
| 90201-40553 |
JY16,RY16..20T T=1.15,T=1.15 |
1 | ||
| 90201-40558 |
JY16,RY16..20T T=1.40,T=1.40 |
1 | ||
| 90201-40556 |
JY16,RY16..20T T=1.30,T=1.30 |
1 | ||
| 90201-40552 |
JY16,RY16..20T T=1.10,T=1.10 |
1 | ||
| 90201-40555 |
JY16,RY16..20T T=1.25,T=1.25 |
1 | ||
| 90201-40560 |
JY16,RY16..20T T=1.50,T=1.50 |
1 | ||
| 90201-40557 |
JY16,RY16..20T T=1.35,T=1.35 |
1 | ||
| 90201-40561 |
JY16,RY16..20T T=1.55,T=1.55 |
1 | ||
| 90201-40559 |
JY16,RY16..20T T=1.45,T=1.45 |
1 | ||
| 90201-40554 |
JY16,RY16..20T T=1.20,T=1.20 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-36020 |
JY16,RY16 |
1 | ||
| 41204-36030 |
JY16,RY16..20T |
1 | ||
| 41204-36031 |
JY16,RY16..20T |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-23002 |
JY16,RY16..20T |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-20034 |
JY16,RY16..20T |
1 | ||
| 90179-22001 |
JY16,RY16..20T |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-36020 |
JY16,RY16..20T |
6 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-14315 |
JY16,RY16..20T |
12 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-36010 |
JY16,RY16..20T |
1 | ||
| 41231-36040 |
JY16,RY16..20T |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-36010 |
JY16,RY16..20T |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-52043 |
JY16,RY16..20T |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-52043 |
JY16,RY16..20T |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-36021 |
JY16,RY16..20T |
1 | ||
| 41301-36030 |
JY16,RY16..20T |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90101-12020 |
JY16,RY16..20T |
12 | ||
| 90101-10114 |
JY16,RY16..20T |
12 | ||
| 41302B - WASHER, SPRING(FOR REAR DIFFERENTIAL CASE) | ||||
| 94512-12007 |
JY16,RY16..20T |
12 | ||
| 94512-01000 |
JY16,RY16..20T |
12 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-36011 |
JY16,RY16..20T |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-36011 |
JY16,RY16..20T |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41317-36010 |
JY16,RY16..20T DOUBLE TYPE |
2 | ||
| 41316-36011 |
JY16,RY16..20T SINGLE TYPE |
2 | ||
| 41316-36010 |
JY16,RY16..20T SINGLE TYPE |
2 | ||
| 41317-36011 |
JY16,RY16..20T DOUBLE TYPE |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41317-36010 |
JY16,RY16..20T DOUBLE TYPE |
2 | ||
| 41316-36011 |
JY16,RY16..20T SINGLE TYPE |
2 | ||
| 41316-36010 |
JY16,RY16..20T SINGLE TYPE |
2 | ||
| 41317-36011 |
JY16,RY16..20T DOUBLE TYPE |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35020 |
JY16,RY12,16 N=16 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35020 |
JY16,RY12,16 N=16 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55012 |
JY16,RY12,16 N=10 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55012 |
JY16,RY12,16 N=10 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55012 |
JY16,RY12,16 N=10 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55012 |
JY16,RY12,16 N=10 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
JY16,RY16..20T |
4 | ||
| 41351-35010 |
JY16,RY16 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
JY16,RY16..20T |
4 | ||
| 41351-35010 |
JY16,RY16 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
JY16,RY16..20T |
4 | ||
| 41351-35010 |
JY16,RY16 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
JY16,RY16..20T |
4 | ||
| 41351-35010 |
JY16,RY16 |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60010 |
JY16,RY12,16 T=1.60,T=1.60 |
2 | ||
| 41361-35010 |
JY16,RY12,16 T=1.60 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60010 |
JY16,RY12,16 T=1.60,T=1.60 |
2 | ||
| 41361-35010 |
JY16,RY12,16 T=1.60 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-36010 |
JY16,RY16 |
1 | ||
| 41371-36011 |
JY16,RY16..20T |
1 | ||
| Common parts | ||||
| 91111-40814 | ||||
| 94512-00800 | ||||
| 94512-01400 | ||||
| 94512-01600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
