RY16-JR (1972)

Toyota Toyoace

Production Jul 1972 - Feb 1979
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

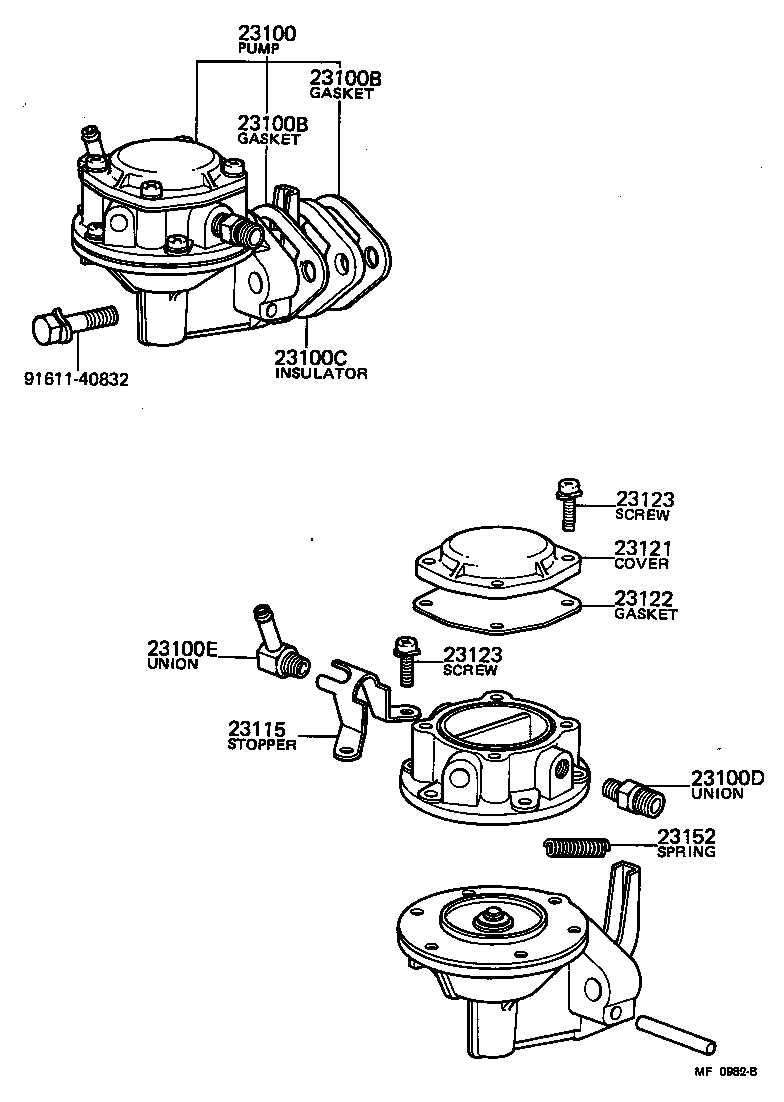

(7308-7902)5R

Click highlighted areas on diagram

diagram 23100 23100B 23100B 23100C 23100D 23100E 23115 23121 23122 23123 23123 23152 9161140832
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-49125

5R..RY16

 1
23100-49047

5R..RY16

 1
23100-49126

5R..RY16

 1
23100B - GASKET, FUEL PUMP
90923-05005

12R,5R..RY1#

 2
23100B - GASKET, FUEL PUMP
90923-05005

12R,5R..RY1#

 2
23100C - INSULATOR, FUEL PUMP
90923-06001

12R,5R..RY1#

 1
23100D - UNION, NIPPLE(FOR FUEL OUTLET)
90404-13105

5R..RY16

 1
23100E - UNION, NIPPLE(FOR FUEL INLET)
23116-41020

5R..RY16

 1
90401-13013

5R..RY16

 1
23115 - STOPPER, UNION NIPPLE
23115-40020

5R..RY16

 1
23115-44020

5R..RY16

 1
23121 - COVER, FUEL PUMP
23121-40010

5R..RY16

 1
23121-41030

5R..RY16

 1
23122 - GASKET, FUEL PUMP COVER
23122-40011

5R..RY16

 1
23122-41030

5R..RY16

 1
23123 - SCREW, COVER SET, NO.1
23123-40020

5R..RY16

STOPPER

 2
93319-15016

5R..RY16

STOPPER

 2
93319-15014

5R..RY16

 8
23123-60022

5R..RY16

COVER

 9
23123 - SCREW, COVER SET, NO.1
23123-40020

5R..RY16

STOPPER

 2
93319-15016

5R..RY16

STOPPER

 2
93319-15014

5R..RY16

 8
23123-60022

5R..RY16

COVER

 9
23152 - SPRING, ROCKER ARM
23152-60020

5R..RY16

 1
23152-44020

5R..RY16

 1
Common parts
91611-40832

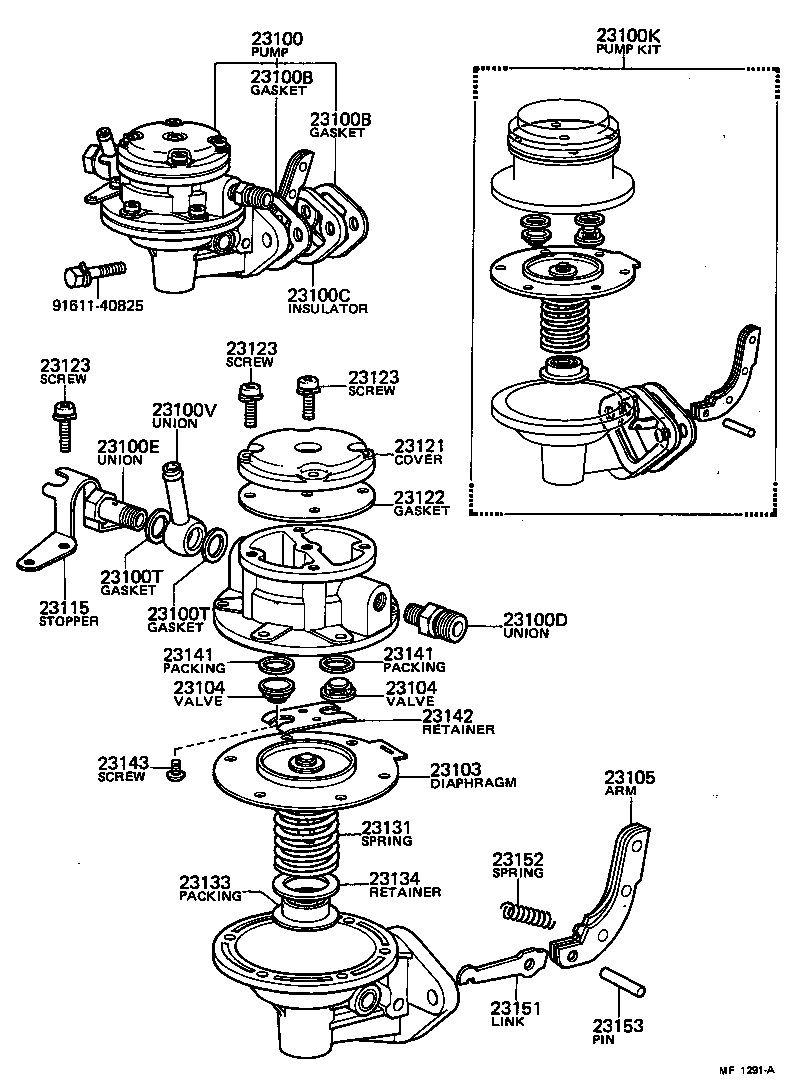

(7207-7308)5R

Click highlighted areas on diagram

diagram 23100 23100B 23100B 23100C 23100D 23100E 23100K 23100T 23100T 23100V 23103 23104 23104 23105 23115 23121 23122 23123 23123 23123 23131 23133 23134 23141 23141 23142 23143 23151 23152 23153 9161140825
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-49125

5R..RY16

 1
23100-49047

5R..RY16

 1
23100-49126

5R..RY16

 1
23100B - GASKET, FUEL PUMP
90923-05005

12R,5R..RY1#

 2
23100B - GASKET, FUEL PUMP
90923-05005

12R,5R..RY1#

 2
23100C - INSULATOR, FUEL PUMP
90923-06001

12R,5R..RY1#

 1
23100D - UNION, NIPPLE(FOR FUEL OUTLET)
90404-13105

5R..RY16

 1
23100E - UNION, NIPPLE(FOR FUEL INLET)
23116-41020

5R..RY16

 1
90401-13013

5R..RY16

 1
23100K - PUMP KIT, FUEL
04231-40011

5R..RY16

 1
23100T - GASKET, NIPPLE UNION(FOR FUEL INLET)
90430-13195

5R..RY16

 2
23100T - GASKET, NIPPLE UNION(FOR FUEL INLET)
90430-13195

5R..RY16

 2
23100V - UNION(FOR FUEL INLET NO.2)
90405-08144

5R..RY16

 1
23103 - DIAPHRAGM SUB-ASSY
23103-40010

5R..RY16

 1
23104 - VALVE SUB-ASSY
23104-40010

5R..RY16

 2
23104 - VALVE SUB-ASSY
23104-40010

5R..RY16

 2
23105 - ARM SUB-ASSY, ROCKER
23105-40010

5R..RY16

 1
23115 - STOPPER, UNION NIPPLE
23115-40020

5R..RY16

 1
23115-44020

5R..RY16

 1
23121 - COVER, FUEL PUMP
23121-40010

5R..RY16

 1
23121-41030

5R..RY16

 1
23122 - GASKET, FUEL PUMP COVER
23122-40011

5R..RY16

 1
23122-41030

5R..RY16

 1
23123 - SCREW, COVER SET, NO.1
23123-40020

5R..RY16

STOPPER

 2
93319-15016

5R..RY16

STOPPER

 2
93319-15014

5R..RY16

 8
23123-60022

5R..RY16

COVER

 9
23123 - SCREW, COVER SET, NO.1
23123-40020

5R..RY16

STOPPER

 2
93319-15016

5R..RY16

STOPPER

 2
93319-15014

5R..RY16

 8
23123-60022

5R..RY16

COVER

 9
23123 - SCREW, COVER SET, NO.1
23123-40020

5R..RY16

STOPPER

 2
93319-15016

5R..RY16

STOPPER

 2
93319-15014

5R..RY16

 8
23123-60022

5R..RY16

COVER

 9
23131 - SPRING, DIAPHRAGM(FOR FUEL PUMP)
23131-40010

5R..RY16

 1
23133 - PACKING, OIL SEAL(FOR FUEL PUMP)
23133-60050

5R..RY16

 1
23134 - RETAINER, OIL SEAL PACKING(FOR FUEL PUMP)
23134-40011

5R..RY16

 1
23141 - PACKING, VALVE
23141-60010

5R..RY16

 2
23141 - PACKING, VALVE
23141-60010

5R..RY16

 2
23142 - RETAINER, VALVE
23142-40010

5R..RY16

 1
23143 - SCREW, VALVE RETAINER SET
23143-60021

5R..RY16

 2
23151 - LINK, ROCKER ARM
23151-40010

5R..RY16

 1
23152 - SPRING, ROCKER ARM
23152-60020

5R..RY16

 1
23152-44020

5R..RY16

 1
23153 - PIN, ROCKER ARM
23153-60011

5R..RY16

 1
Common parts
91611-40825
