RY16-JR (1972)
Toyota Toyoace
(7207-7902)5R

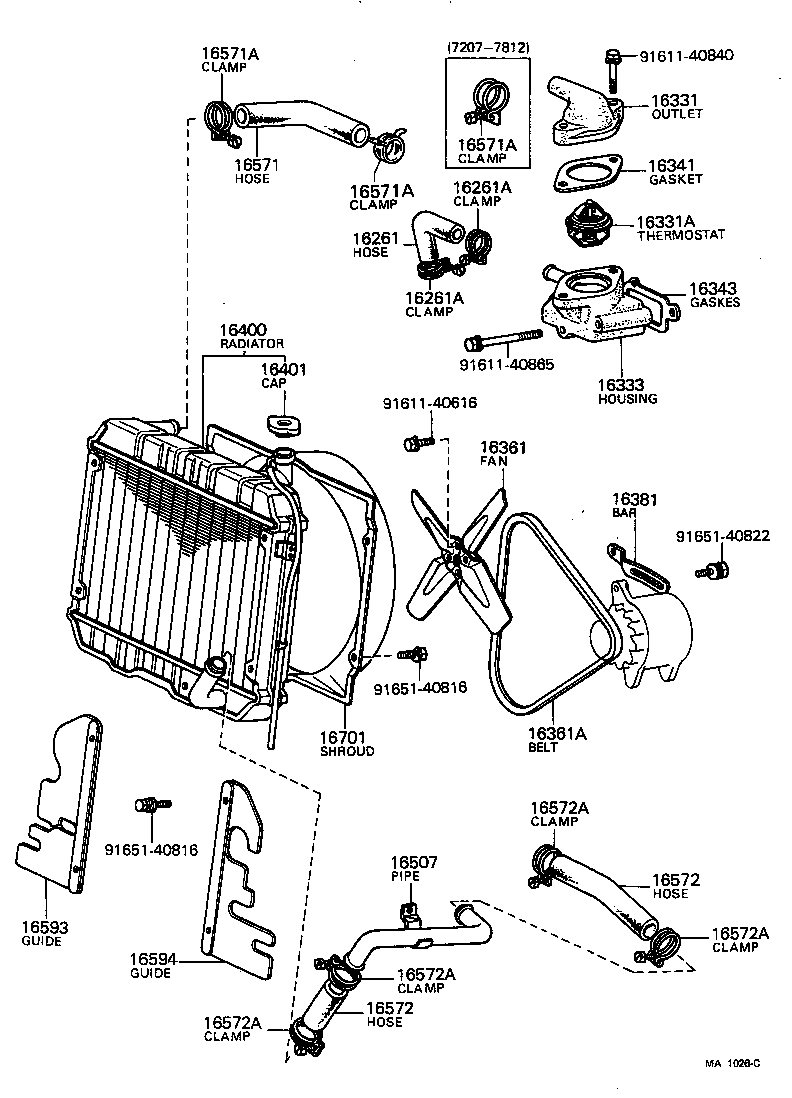

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-44010 |
5R..RY16 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90460-23022 |
12R,5R..RY1# |
2 | ||
| 96112-10240 |
12R,5R..RY1# |
2 | ||
| 96112-10240 |
5R..RY16 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90460-23022 |
12R,5R..RY1# |
2 | ||
| 96112-10240 |
12R,5R..RY1# |
2 | ||
| 96112-10240 |
5R..RY16 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-44020 |
5R..RY16 |
1 | ||
| 16331-44021 |
5R..RY16 |
1 | ||
| 16331-44011 |
5R..RY16 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03024 |
5R..RY16 WAX 75-85 KUZEH |
1 | ||
| 90916-03037 |
5R..RY16 WAX 82-95 KUZEH |
1 | ||
| 90916-03037 |
12R,5R..RY1# WAX 82-95 KUZEH |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-44010 |
5R..RY16 |
1 | ||
| 16333-44012 |
5R..RY16 |
1 | ||
| 16333-44011 |
5R..RY16 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-40010 |
5R..RY16 |
1 | ||
| 16341-38010 |
12R,5R..RY1# |
1 | ||
| 16341-49010 |
12R,5R..RY1# |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-44010 |
5R..RY16 |
1 | ||
| 16361 - FAN | ||||
| 16361-40010 |
5R..RY16 4 BLADES |
1 | ||
| 16361-44020 |
5R..RY16 6 BLADES |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99522-10911 |
5R..RY16 L=911 |
1 | ||
| 99512-10900 |
5R..RY16 L=900 |
1 | ||
| 99522-10901 |
5R..RY16 L=901 |
1 | ||
| 99322-00910 |
5R..RY16 L=910 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-44021 |
5R..RY16 |
1 | ||
| 16381-44022 |
5R..RY16 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-44120 |
5R..RY16 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-23070 |
12R,5R..RY1# |
1 | ||
| 16507 - PIPE SUB-ASSY, RADIATOR | ||||
| 16577-44060 |
5R..RY16 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 90916-01119 |
5R..RY16 |
1 | ||
| 90916-01144 |
5R..RY16 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-43005 |
12R,5R..RY1# |
2 | ||
| 96111-10430 |
12R,5R..RY1# |
2 | ||
| 90467-37001 |
5R..RY16 WATER OUTLET SIDE |
1 | ||
| 96111-10440 |
5R..RY16 RADIATOR SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-43005 |
12R,5R..RY1# |
2 | ||
| 96111-10430 |
12R,5R..RY1# |
2 | ||
| 90467-37001 |
5R..RY16 WATER OUTLET SIDE |
1 | ||
| 96111-10440 |
5R..RY16 RADIATOR SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-43005 |
12R,5R..RY1# |
2 | ||
| 96111-10430 |
12R,5R..RY1# |
2 | ||
| 90467-37001 |
5R..RY16 WATER OUTLET SIDE |
1 | ||
| 96111-10440 |
5R..RY16 RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 90916-01118 |
5R..RY16 RADIATOR SIDE |
1 | ||
| 90916-01048 |
5R..RY16 PUMP SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 90916-01118 |
5R..RY16 RADIATOR SIDE |
1 | ||
| 90916-01048 |
5R..RY16 PUMP SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-48056 |
5R..RY16 ID=48 |
4 | ||
| 96111-10460 |
5R..RY16 ID=46 |
3 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-48056 |
5R..RY16 ID=48 |
4 | ||
| 96111-10460 |
5R..RY16 ID=46 |
3 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-48056 |
5R..RY16 ID=48 |
4 | ||
| 96111-10460 |
5R..RY16 ID=46 |
3 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-48056 |
5R..RY16 ID=48 |
4 | ||
| 96111-10460 |
5R..RY16 ID=46 |
3 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-48010 |
5R..RY16 |
1 | ||
| 16711-48010 |
5R..RY16 |
1 | ||
| Common parts | ||||
| 91611-40616 | ||||
| 91611-40840 | ||||
| 91611-40865 | ||||
| 91651-40816 | ||||
| 91651-40822 | ||||
