RY12L-JRB (1971)
Toyota Toyoace
Production
Sep 1971
-
Feb 1979
Engine
12R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7109-7902)15T

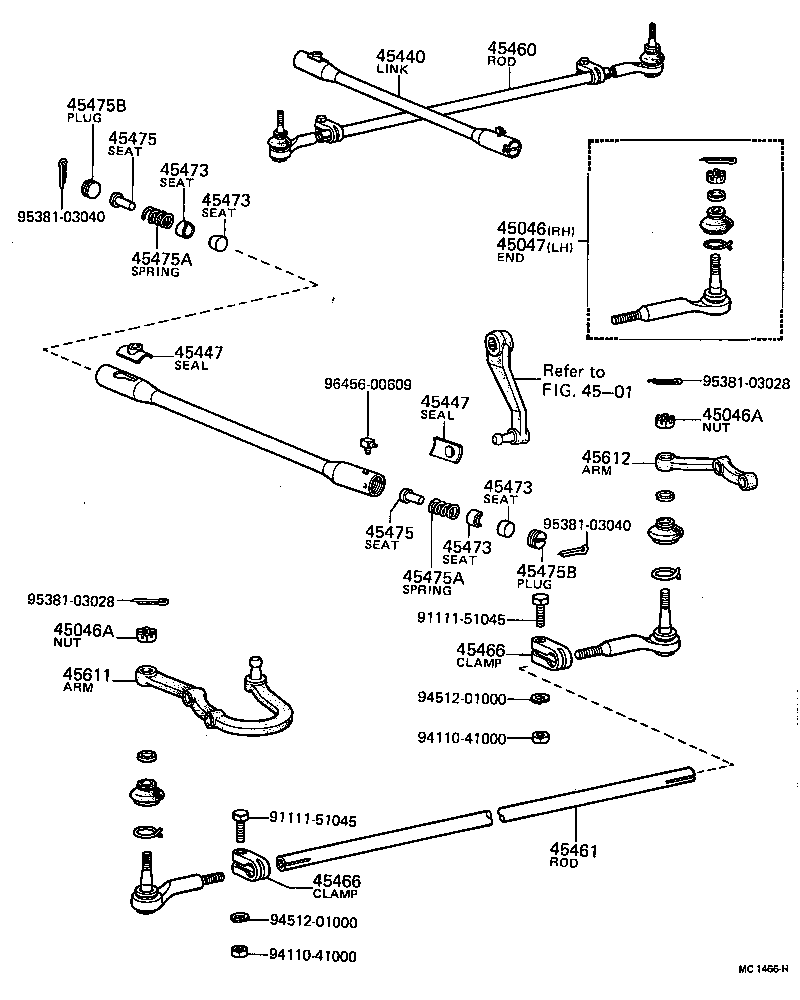

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45044-29035 |
RY10,12 |
1 | ||
| 45046-29065 |
RY10,12 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 94146-41400 |
RY10,12 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 94146-41400 |
RY10,12 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45045-29035 |
RY10,12 |
1 | ||
| 45047-29025 |
RY10,12 |
1 | ||
| 45440 - LINK ASSY, STEERING DRAG | ||||
| 45440-25040 |
RY10,12..LHD |
1 | ||
| 45447 - SEAL, DRAG LINK DUST | ||||
| 45447-60010 |
JY16,RY1# |
2 | ||
| 45447 - SEAL, DRAG LINK DUST | ||||
| 45447-60010 |
JY16,RY1# |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-25901 |
RY10,12 |
1 | ||
| 45460-25902 |
RY10,12 |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45461-25010 |
RY10,12 |
1 | ||
| 45461-25011 |
RY10,12 |
1 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30010 |
RY10,12 |
2 | ||
| 45466-55010 |
RY10,12 |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30010 |
RY10,12 |
2 | ||
| 45466-55010 |
RY10,12 |
2 | ||
| 45473 - SEAT, BALL STUD | ||||
| 45473-35010 |
RY10,12 |
4 | ||
| 45473 - SEAT, BALL STUD | ||||
| 45473-35010 |
RY10,12 |
4 | ||
| 45473 - SEAT, BALL STUD | ||||
| 45473-35010 |
RY10,12 |
4 | ||
| 45473 - SEAT, BALL STUD | ||||
| 45473-35010 |
RY10,12 |
4 | ||
| 45475 - SEAT, STEERING LINK JOINT SPRING | ||||
| 45475-35010 |
RY10,12 |
2 | ||
| 45475 - SEAT, STEERING LINK JOINT SPRING | ||||
| 45475-35010 |
RY10,12 |
2 | ||
| 45475A - SPRING, COMPRESSION(FOR STEERING LINK JOINT) | ||||
| 90501-45114 |
RY10,12 WD=4.5,CW=4.5 |
2 | ||
| 45475A - SPRING, COMPRESSION(FOR STEERING LINK JOINT) | ||||
| 90501-45114 |
RY10,12 WD=4.5,CW=4.5 |
2 | ||
| 45475B - PLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT) | ||||
| 90340-25011 |
RY10,12 |
2 | ||
| 45475B - PLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT) | ||||
| 90340-25011 |
RY10,12 |
2 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45601-25020 |
RY10,12..LHD |
1 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-25020 |
RY10,12..LHD |
1 | ||
| Common parts | ||||
| 91111-51045 | ||||
| 94110-41000 | ||||
| 94512-01000 | ||||
| 95381-03028 | ||||
| 95381-03040 | ||||
| 96456-00609 | ||||
| Linked diagrams | ||||
| 4501 | ||||
