RY12-JRB (1971)

Toyota Toyoace

Production Sep 1971 - Feb 1979
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7109-7902)

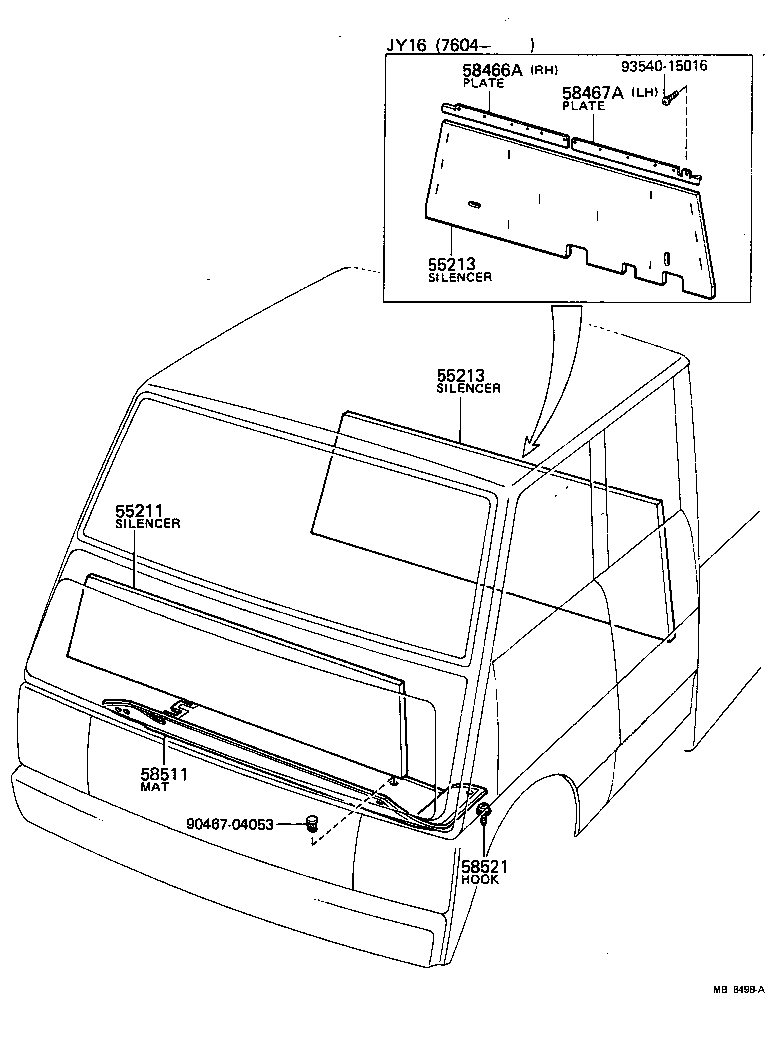

Click highlighted areas on diagram

diagram 55211 55213 55213 58466A 58467A 58511 58521 9046704053 9354015016
Part # Description Qty Price
55211 - SILENCER, FRONT PANEL
55211-95010

RY10,12

FOR ARCTIC COUNTRY

 1
55213 - SILENCER, BACK PANEL
55213-95010

RY10,12

FOR ARCTIC COUNTRY

 1
55213 - SILENCER, BACK PANEL
55213-95010

RY10,12

FOR ARCTIC COUNTRY

 1
58511 - MAT, FLOOR, FRONT
58510-95031

JY16,RY1#..RHD

 1
58510-95026

JY16,RY1#..RHD

 1
58510-95024

RY1#..RHD

 1
58521 - HOOK, MALE, NO.1
90530-04004

JY16,RY1#

 11
90530-04002

JY16,RY1#

 11
Common parts
90467-04053
93540-15016
