RY12-JRB (1971)
Toyota Toyoace

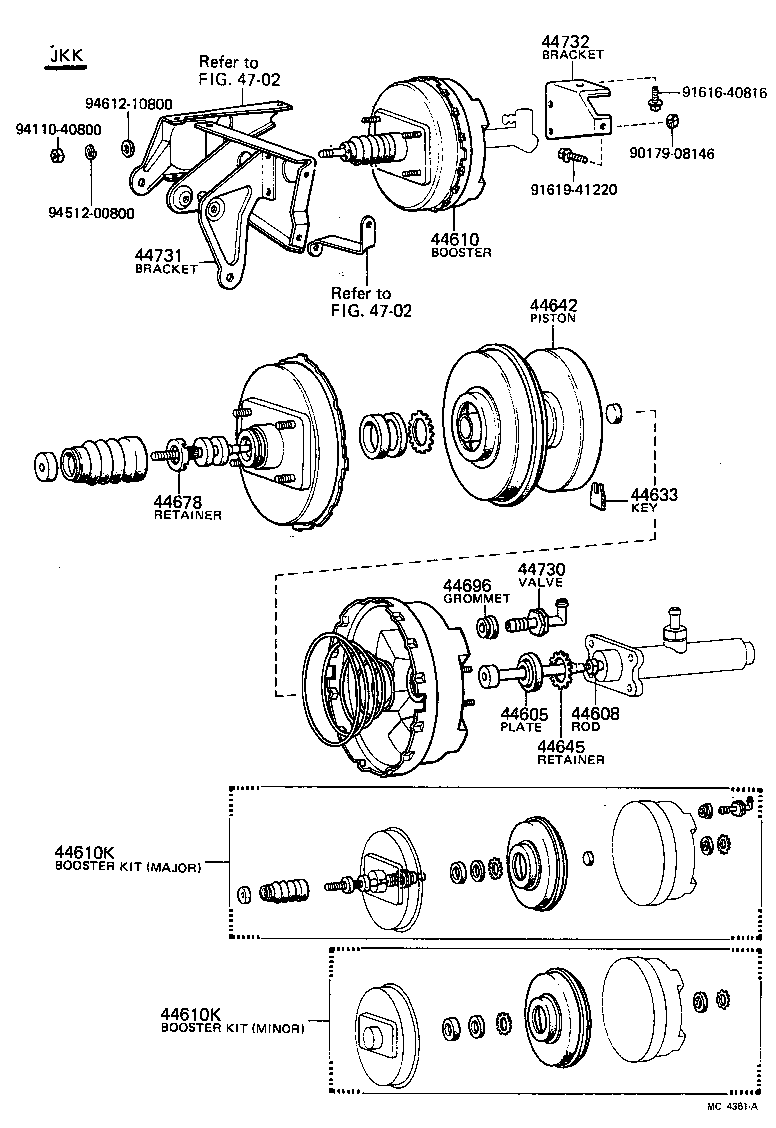

(7109-7902)RY10,12
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-22021 |
RY10,12 JKK |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-30030 |
RY10,12 ASCO |
1 | ||
| 44608-14040 |
RY10,12 JKK |
1 | ||
| 44606-30050 |
RY10,12 ASCO |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-25021 |
RY10,12 JKK |
1 | ||
| 44610-25020 |
RY1# JKK |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-25020 |
RY1# JKK,MAJOR KIT |
1 | ||
| 04443-25021 |
RY10,12 JKK,MAJOR KIT |
1 | ||
| 04441-25010 |
RY10,12 ASCO,MINOR KIT |
1 | ||
| 04441-25020 |
RY10,12 JKK,MINOR KIT |
1 | ||
| 04443-25040 |
RY10,12 ASCO,MAJOR KIT |
1 | ||
| 04443-25010 |
RY10,12 ASCO,MAJOR KIT |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-25020 |
RY1# JKK,MAJOR KIT |
1 | ||
| 04443-25021 |
RY10,12 JKK,MAJOR KIT |
1 | ||
| 04441-25010 |
RY10,12 ASCO,MINOR KIT |
1 | ||
| 04441-25020 |
RY10,12 JKK,MINOR KIT |
1 | ||
| 04443-25040 |
RY10,12 ASCO,MAJOR KIT |
1 | ||
| 04443-25010 |
RY10,12 ASCO,MAJOR KIT |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-22020 |
RY10,12 JKK |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-25010 |
RY10,12 ASCO |
1 | ||
| 44642-25020 |
RY1# JKK |
1 | ||
| 44642-25021 |
RY10,12 JKK |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-22020 |
RY10,12 JKK |
1 | ||
| 44628-60010 |
JY16,RY1# ASCO |
1 | ||
| 44678 - RETAINER, BOOSTER AIR CLEANER | ||||
| 44678-22020 |
RY10,12 |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24517 |
RY10,12 |
1 | ||
| 90480-24438 |
RY10,12 |
1 | ||
| 90480-24439 |
JY16,RY1# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-26010 |
JY16,RY1# ASCO,FOR BOOSTER SIDE |
1 | ||
| 44730-25020 |
RY10,12 JKK |
1 | ||
| 44730-26010 |
RY10,12 ASCO |
1 | ||
| 44690-60010 |
RY1# ASCO |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 55170-95010 |
RY10,12 FOR BOOSTER |
1 | ||
| 55170-95012 |
JY16,RY12,16 |
1 | ||
| 55170-95013 |
RY12 |
1 | ||
| 44732 - BRACKET, BRAKE BOOSTER, REAR | ||||
| 55163-95010 |
RY10,12 FOR BOOSTER |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 91616-40816 | ||||
| 91619-41220 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 4702 | ||||

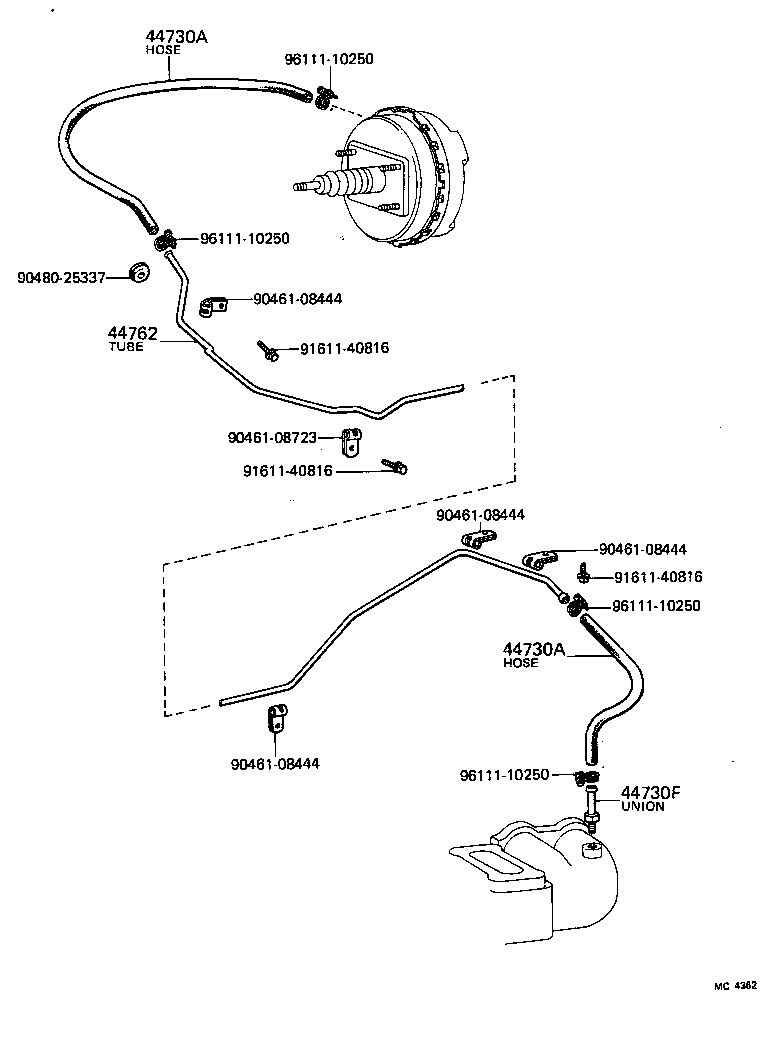

(7109-7902)RY1#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 90445-24716 |
RY10,12 L=230 |
1 | ||
| 90445-24403 |
RY1# L=250 |
1 | ||
| 90445-24605 |
RY1# L=265 |
1 | ||
| 90445-24034 |
JY16,RY1#..RHD L=630 |
1 | ||
| 90445-24385 |
RY10,12 L=215 |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 90445-24716 |
RY10,12 L=230 |
1 | ||
| 90445-24403 |
RY1# L=250 |
1 | ||
| 90445-24605 |
RY1# L=265 |
1 | ||
| 90445-24034 |
JY16,RY1#..RHD L=630 |
1 | ||
| 90445-24385 |
RY10,12 L=215 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51001 |
RY12,16 |
1 | ||
| 90404-51001 |
RY1# |
1 | ||
| 90404-51273 |
RY1# |
1 | ||
| 44762 - TUBE, BOOSTER VACUUM | ||||
| 44761-25011 |
RY1#..RHD |
1 | ||
| 44761-25010 |
RY1#..RHD |
1 | ||
| Common parts | ||||
| 90461-08444 | ||||
| 90461-08723 | ||||
| 90480-25337 | ||||
| 91611-40816 | ||||
| 96111-10250 | ||||
(7109-7902)RY10,12
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44601 - BAND SUB-ASSY, BOOSTER BODY | ||||
| 44605-25010 |
RY10,12 ASCO |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-30030 |
RY10,12 ASCO |
1 | ||
| 44608-14040 |
RY10,12 JKK |
1 | ||
| 44606-30050 |
RY10,12 ASCO |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-25021 |
RY10,12 JKK |
1 | ||
| 44610-25020 |
RY1# JKK |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-25020 |
RY1# JKK,MAJOR KIT |
1 | ||
| 04443-25021 |
RY10,12 JKK,MAJOR KIT |
1 | ||
| 04441-25010 |
RY10,12 ASCO,MINOR KIT |
1 | ||
| 04441-25020 |
RY10,12 JKK,MINOR KIT |
1 | ||
| 04443-25040 |
RY10,12 ASCO,MAJOR KIT |
1 | ||
| 04443-25010 |
RY10,12 ASCO,MAJOR KIT |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-25020 |
RY1# JKK,MAJOR KIT |
1 | ||
| 04443-25021 |
RY10,12 JKK,MAJOR KIT |
1 | ||
| 04441-25010 |
RY10,12 ASCO,MINOR KIT |
1 | ||
| 04441-25020 |
RY10,12 JKK,MINOR KIT |
1 | ||
| 04443-25040 |
RY10,12 ASCO,MAJOR KIT |
1 | ||
| 04443-25010 |
RY10,12 ASCO,MAJOR KIT |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-60010 |
JY16,RY1# ASCO |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-25010 |
RY10,12 ASCO |
1 | ||
| 44642-25020 |
RY1# JKK |
1 | ||
| 44642-25021 |
RY10,12 JKK |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-60010 |
JY16,RY1# ASCO |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-22020 |
RY10,12 JKK |
1 | ||
| 44628-60010 |
JY16,RY1# ASCO |
1 | ||
| 44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 96150-01600 |
JY16,RY1# ASCO |
1 | ||
| 44662 - RETAINER, REACTION, NO.1 | ||||
| 44662-60010 |
RY10,12 ASCO |
1 | ||
| 44662A - RETAINER, REACTION, NO.2 | ||||
| 44663-60010 |
JY16,RY1# |
1 | ||
| 44662B - LEVER, REACTION | ||||
| 44661-60010 |
JY16,RY1# |
3 | ||
| 44662C - PLATE, REACTION, NO.1 | ||||
| 44653-25010 |
RY10,12 |
1 | ||
| 44669 - RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER | ||||
| 44669-60010 |
JY16,RY1# |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24517 |
RY10,12 |
1 | ||
| 90480-24438 |
RY10,12 |
1 | ||
| 90480-24439 |
JY16,RY1# |
1 | ||
| 44697 - SCREW, BOOSTER BAND SET | ||||
| 44681-60011 |
JY16,RY1# ASCO |
1 | ||
| 44681-60010 |
RY1# ASCO |
1 | ||
| 44697A - NUT(FOR BOOSTER BAND SET) | ||||
| 44686-30030 |
JY16,RY1# ASCO |
1 | ||
| 90173-06012 |
RY1# ASCO |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-26010 |
JY16,RY1# ASCO,FOR BOOSTER SIDE |
1 | ||
| 44730-25020 |
RY10,12 JKK |
1 | ||
| 44730-26010 |
RY10,12 ASCO |
1 | ||
| 44690-60010 |
RY1# ASCO |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 55170-95010 |
RY10,12 FOR BOOSTER |
1 | ||
| 55170-95012 |
JY16,RY12,16 |
1 | ||
| 55170-95013 |
RY12 |
1 | ||
| 44732 - BRACKET, BRAKE BOOSTER, REAR | ||||
| 55163-95010 |
RY10,12 FOR BOOSTER |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 91616-40816 | ||||
| 91619-41220 | ||||
| 93319-14010 | ||||
| 94110-40800 | ||||
| 94110-70600 | ||||
| 94512-00800 | ||||
| 94531-00600 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 4702 | ||||
