RY10L-JRB (1971)
Toyota Toyoace
Production
Sep 1971
-
Feb 1979
Engine
12R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7109-7611) ; (7611-7902)LHD

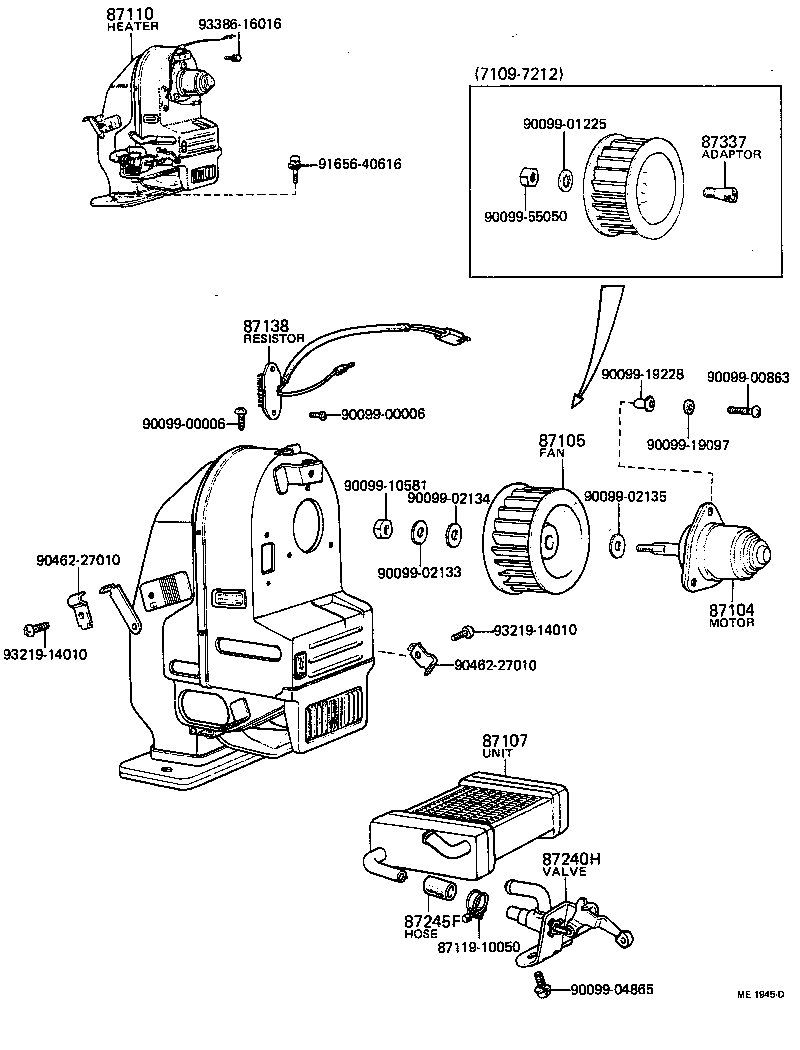

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-10051 |
JY16,RY1#..LHD |
1 | ||
| 87104-10051 |
JY16,RY1# |
1 | ||
| 87104-10050 |
JY16,RY1# |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-10051 |
JY16,RY1#..LHD |
1 | ||
| 87105-10051 |
JY16,RY1# |
1 | ||
| 87105-10050 |
JY16,RY1# |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-27018 |
JY16,RY1#..LHD |
1 | ||
| 87107-27018 |
JY16,RY1# |
1 | ||
| 87110 - HEATER ASSY | ||||
| 87110-25022 |
JY16,RY1#..LHD |
1 | ||
| 87110-25020 |
JY16,RY1# |
1 | ||
| 87110-25021 |
JY16,RY1# |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-27010 |
JY16,RY1#..LHD |
1 | ||
| 87138-27010 |
JY16,RY1# |
1 | ||
| 87240H - VALVE ASSY, WATER UNIT | ||||
| 87240-27010 |
JY16,RY1# |
1 | ||
| 87240-27010 |
JY16,RY1#..LHD |
1 | ||
| 87245F - HOSE, HEATER WATER, INLET F | ||||
| 99552-20040 |
JY16,RY1# *H,L=40 |
1 | ||
| 99552-20040 |
JY16,RY1#..LHD *H,L=40 |
1 | ||
| 99551-20040 |
JY16,RY1# L=40 |
1 | ||
| 87337 - ADAPTER, HEATER BLOWER MOTOR | ||||
| 87337-10010 |
RY10,12 |
1 | ||
| Common parts | ||||
| 87119-10050 | ||||
| 90099-00006 | ||||
| 90099-00863 | ||||
| 90099-01225 | ||||
| 90099-02133 | ||||
| 90099-02134 | ||||
| 90099-02135 | ||||
| 90099-04865 | ||||
| 90099-10581 | ||||
| 90099-19097 | ||||
| 90099-19228 | ||||
| 90099-55050 | ||||
| 90462-27010 | ||||
| 91656-40616 | ||||
| 93219-14010 | ||||
| 93386-16016 | ||||
