RY10L-JRB (1971)
Toyota Toyoace

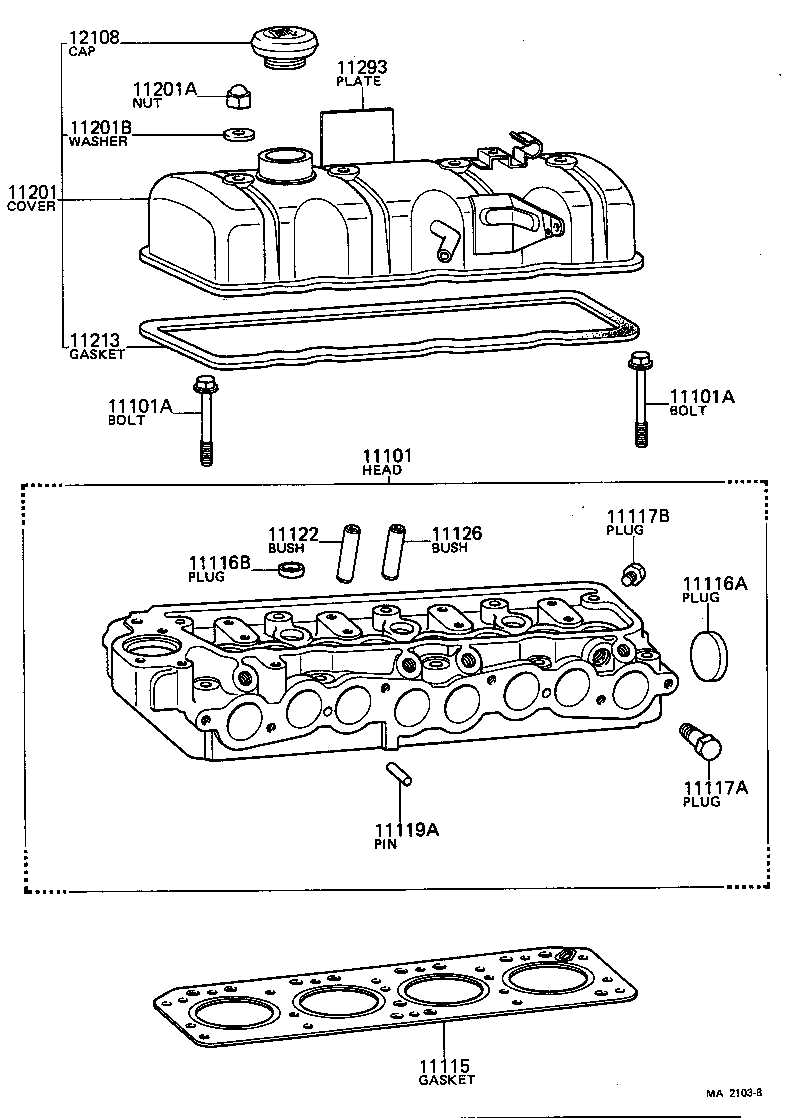

(7109-7208)12R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-39107 |
12R..RY10,12 |
1 | ||
| 11101-39176 |
12R..RY10,12 |
1 | ||
| 11101-39105 |
12R..RY1# |
1 | ||
| 11101-39106 |
12R..RY10,12 |
1 | ||
| 11101-39175 |
12R..RY10,12 |
1 | ||
| 11101-39177 |
12R..RY10,12 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02052 |
12R..RY10,12 12-1.25PX86.5-24 |
5 | ||
| 90910-02034 |
12R..RY10,12 12-1.25PX100-24 |
5 | ||
| 90910-02065 |
12R..RY10,12 12-1.25PX84.5-24 |
5 | ||
| 90910-02051 |
12R..RY10,12 12-1.25PX98-24 |
5 | ||
| 90910-02043 |
12R..RY10,12 12-1.25PX86.5-24 |
5 | ||
| 90910-02066 |
12R..RY10,12 12-1.25X98-24 |
5 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02052 |
12R..RY10,12 12-1.25PX86.5-24 |
5 | ||
| 90910-02034 |
12R..RY10,12 12-1.25PX100-24 |
5 | ||
| 90910-02065 |
12R..RY10,12 12-1.25PX84.5-24 |
5 | ||
| 90910-02051 |
12R..RY10,12 12-1.25PX98-24 |
5 | ||
| 90910-02043 |
12R..RY10,12 12-1.25PX86.5-24 |
5 | ||
| 90910-02066 |
12R..RY10,12 12-1.25X98-24 |
5 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-12118 |
12R..RY10,12 |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-12118 |
12R..RY10,12 |
10 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-31020 |
12R..RY10,12 |
1 | ||
| 11115-31023 |
12R..RY10,12 |
1 | ||
| 11115-31022 |
12R..RY10,12 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-45000 |
12R..RY10,12 OD=50 |
1 | ||
| 90331-50015 |
12R..RY10,12 OD=50 |
1 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 90331-22022 |
12R..RY10,12 OD=22 |
3 | ||
| 96411-42200 |
12R..RY10,12 OD=22 |
3 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-53028 |
12R..RY10,12 |
1 | ||
| 11117B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90345-51025 |
12R..RY10,12 |
1 | ||
| 11119A - PIN, STRAIGHT, NO.1 | ||||
| 90250-08054 |
12R,5R..RY1# L=23,OD=8,L=23,OD=8 |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-23010 |
12R..RY10,12 O/S 0.05 |
4 | ||
| 11122-31020 |
12R..RY10,12 STD |
4 | ||
| 11122-23010 |
12R..RY10,12 STD |
4 | ||
| 11123-31020 |
12R..RY10,12 O/S 0.05 |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-31020 |
12R..RY10,12 STD |
4 | ||
| 11123-23010 |
12R..RY10,12 O/S 0.05 |
4 | ||
| 11123-31020 |
12R..RY10,12 O/S 0.05 |
4 | ||
| 11122-23010 |
12R..RY10,12 STD |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-39125 |
12R..RY10,12 L/PCV |
1 | ||
| 11201-39117 |
12R..RY10,12 W/PCV |
1 | ||
| 11201-39115 |
12R..RY10,12 W/PCV |
1 | ||
| 11201-39126 |
12R..RY10,12 L/PCV |
1 | ||
| 11201-39116 |
12R..RY10,12 W/PCV |
1 | ||
| 11201-39127 |
12R..RY10,12 L/PCV |
1 | ||
| 11201-39087 |
12R..RY10,12 W/PCV |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90176-08004 |
12R..RY10,12 |
4 | ||
| 90176-06014 |
12R..RY10,12 |
4 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-10022 |
12R..RY10,12 |
4 | ||
| 90210-08007 |
12R..RY10,12 |
4 | ||
| 90210-10003 |
12R..RY10,12 |
4 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-31011 |
12R..RY10,12 |
1 | ||
| 11213-31010 |
12R..RY10,12 |
1 | ||
| 11293 - PLATE, ENGINE CAUTION & ENGINE NAME | ||||
| 11293-31050 |
12R..RY10,12 |
1 | ||
| 11293-31041 |
12R..RY10,12 |
1 | ||
| 11293-31040 |
12R..RY10,12 |
1 | ||
| 11293-31070 |
12R..RY10,12 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12108-31013 |
12R..RY10,12 |
1 | ||
| 12181-31020 |
12R..RY10,12 |
1 | ||
| 12181-31020 |
12R,5R..RY1# |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-35095 |
12R,5R..RY1# |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-35095 |
12R,5R..RY1# |
1 | ||
| Linked diagrams | ||||
| 1302 | ||||
| 1603 | ||||

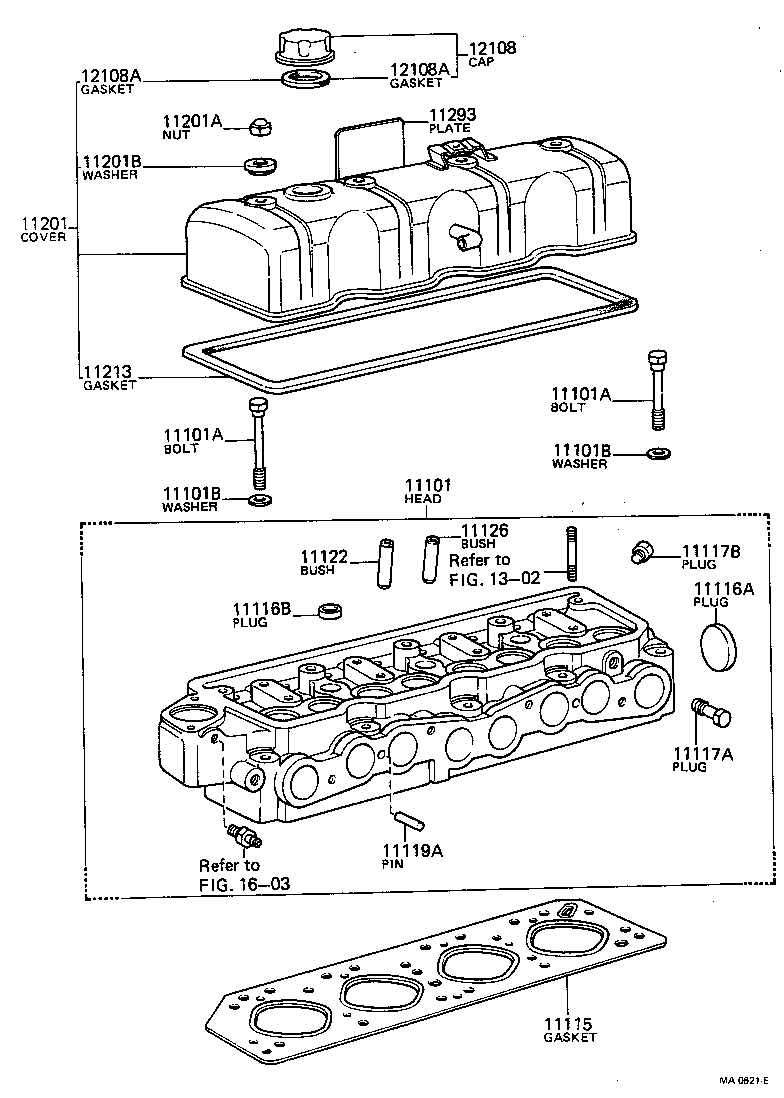

(7511-7902)12R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-39107 |
12R..RY10,12 |
1 | ||
| 11101-39176 |
12R..RY10,12 |
1 | ||
| 11101-39105 |
12R..RY1# |
1 | ||
| 11101-39106 |
12R..RY10,12 |
1 | ||
| 11101-39175 |
12R..RY10,12 |
1 | ||
| 11101-39177 |
12R..RY10,12 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02052 |
12R..RY10,12 12-1.25PX86.5-24 |
5 | ||
| 90910-02034 |
12R..RY10,12 12-1.25PX100-24 |
5 | ||
| 90910-02065 |
12R..RY10,12 12-1.25PX84.5-24 |
5 | ||
| 90910-02051 |
12R..RY10,12 12-1.25PX98-24 |
5 | ||
| 90910-02043 |
12R..RY10,12 12-1.25PX86.5-24 |
5 | ||
| 90910-02066 |
12R..RY10,12 12-1.25X98-24 |
5 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02052 |
12R..RY10,12 12-1.25PX86.5-24 |
5 | ||
| 90910-02034 |
12R..RY10,12 12-1.25PX100-24 |
5 | ||
| 90910-02065 |
12R..RY10,12 12-1.25PX84.5-24 |
5 | ||
| 90910-02051 |
12R..RY10,12 12-1.25PX98-24 |
5 | ||
| 90910-02043 |
12R..RY10,12 12-1.25PX86.5-24 |
5 | ||
| 90910-02066 |
12R..RY10,12 12-1.25X98-24 |
5 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-31020 |
12R..RY10,12 |
1 | ||
| 11115-31023 |
12R..RY10,12 |
1 | ||
| 11115-31022 |
12R..RY10,12 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-45000 |
12R..RY10,12 OD=50 |
1 | ||
| 90331-50015 |
12R..RY10,12 OD=50 |
1 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 90331-22022 |
12R..RY10,12 OD=22 |
3 | ||
| 96411-42200 |
12R..RY10,12 OD=22 |
3 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-53028 |
12R..RY10,12 |
1 | ||
| 11117B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90345-51025 |
12R..RY10,12 |
1 | ||
| 11119A - PIN, STRAIGHT, NO.1 | ||||
| 90250-08054 |
12R,5R..RY1# L=23,OD=8,L=23,OD=8 |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-23010 |
12R..RY10,12 O/S 0.05 |
4 | ||
| 11122-31020 |
12R..RY10,12 STD |
4 | ||
| 11122-23010 |
12R..RY10,12 STD |
4 | ||
| 11123-31020 |
12R..RY10,12 O/S 0.05 |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-31020 |
12R..RY10,12 STD |
4 | ||
| 11123-23010 |
12R..RY10,12 O/S 0.05 |
4 | ||
| 11123-31020 |
12R..RY10,12 O/S 0.05 |
4 | ||
| 11122-23010 |
12R..RY10,12 STD |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-39125 |
12R..RY10,12 L/PCV |
1 | ||
| 11201-39117 |
12R..RY10,12 W/PCV |
1 | ||
| 11201-39115 |
12R..RY10,12 W/PCV |
1 | ||
| 11201-39126 |
12R..RY10,12 L/PCV |
1 | ||
| 11201-39116 |
12R..RY10,12 W/PCV |
1 | ||
| 11201-39127 |
12R..RY10,12 L/PCV |
1 | ||
| 11201-39087 |
12R..RY10,12 W/PCV |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90176-08004 |
12R..RY10,12 |
4 | ||
| 90176-06014 |
12R..RY10,12 |
4 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-10022 |
12R..RY10,12 |
4 | ||
| 90210-08007 |
12R..RY10,12 |
4 | ||
| 90210-10003 |
12R..RY10,12 |
4 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-31011 |
12R..RY10,12 |
1 | ||
| 11213-31010 |
12R..RY10,12 |
1 | ||
| 11293 - PLATE, ENGINE CAUTION & ENGINE NAME | ||||
| 11293-31050 |
12R..RY10,12 |
1 | ||
| 11293-31041 |
12R..RY10,12 |
1 | ||
| 11293-31040 |
12R..RY10,12 |
1 | ||
| 11293-31070 |
12R..RY10,12 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12108-31013 |
12R..RY10,12 |
1 | ||
| 12181-31020 |
12R..RY10,12 |
1 | ||
| 12181-31020 |
12R,5R..RY1# |
1 | ||

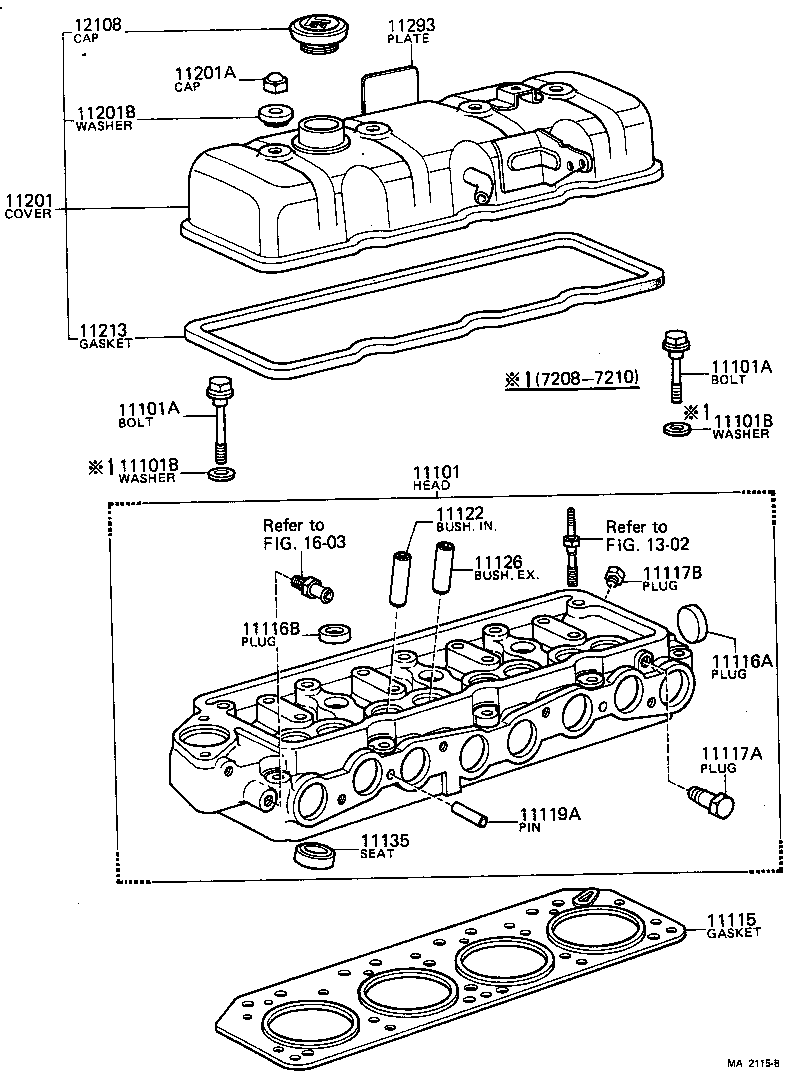

(7208-7511)12R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-39107 |
12R..RY10,12 |
1 | ||
| 11101-39176 |
12R..RY10,12 |
1 | ||
| 11101-39105 |
12R..RY1# |
1 | ||
| 11101-39106 |
12R..RY10,12 |
1 | ||
| 11101-39175 |
12R..RY10,12 |
1 | ||
| 11101-39177 |
12R..RY10,12 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02052 |
12R..RY10,12 12-1.25PX86.5-24 |
5 | ||
| 90910-02034 |
12R..RY10,12 12-1.25PX100-24 |
5 | ||
| 90910-02065 |
12R..RY10,12 12-1.25PX84.5-24 |
5 | ||
| 90910-02051 |
12R..RY10,12 12-1.25PX98-24 |
5 | ||
| 90910-02043 |
12R..RY10,12 12-1.25PX86.5-24 |
5 | ||
| 90910-02066 |
12R..RY10,12 12-1.25X98-24 |
5 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02052 |
12R..RY10,12 12-1.25PX86.5-24 |
5 | ||
| 90910-02034 |
12R..RY10,12 12-1.25PX100-24 |
5 | ||
| 90910-02065 |
12R..RY10,12 12-1.25PX84.5-24 |
5 | ||
| 90910-02051 |
12R..RY10,12 12-1.25PX98-24 |
5 | ||
| 90910-02043 |
12R..RY10,12 12-1.25PX86.5-24 |
5 | ||
| 90910-02066 |
12R..RY10,12 12-1.25X98-24 |
5 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-12118 |
12R..RY10,12 |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-12118 |
12R..RY10,12 |
10 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-31020 |
12R..RY10,12 |
1 | ||
| 11115-31023 |
12R..RY10,12 |
1 | ||
| 11115-31022 |
12R..RY10,12 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-45000 |
12R..RY10,12 OD=50 |
1 | ||
| 90331-50015 |
12R..RY10,12 OD=50 |
1 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 90331-22022 |
12R..RY10,12 OD=22 |
3 | ||
| 96411-42200 |
12R..RY10,12 OD=22 |
3 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-53028 |
12R..RY10,12 |
1 | ||
| 11117B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90345-51025 |
12R..RY10,12 |
1 | ||
| 11119A - PIN, STRAIGHT, NO.1 | ||||
| 90250-08054 |
12R,5R..RY1# L=23,OD=8,L=23,OD=8 |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-23010 |
12R..RY10,12 O/S 0.05 |
4 | ||
| 11122-31020 |
12R..RY10,12 STD |
4 | ||
| 11122-23010 |
12R..RY10,12 STD |
4 | ||
| 11123-31020 |
12R..RY10,12 O/S 0.05 |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-31020 |
12R..RY10,12 STD |
4 | ||
| 11123-23010 |
12R..RY10,12 O/S 0.05 |
4 | ||
| 11123-31020 |
12R..RY10,12 O/S 0.05 |
4 | ||
| 11122-23010 |
12R..RY10,12 STD |
4 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-31022 |
12R..RY10,12 STD |
4 | ||
| 11136-31020 |
12R..RY10,12 O/S 0.03 |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-39125 |
12R..RY10,12 L/PCV |
1 | ||
| 11201-39117 |
12R..RY10,12 W/PCV |
1 | ||
| 11201-39115 |
12R..RY10,12 W/PCV |
1 | ||
| 11201-39126 |
12R..RY10,12 L/PCV |
1 | ||
| 11201-39116 |
12R..RY10,12 W/PCV |
1 | ||
| 11201-39127 |
12R..RY10,12 L/PCV |
1 | ||
| 11201-39087 |
12R..RY10,12 W/PCV |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90176-08004 |
12R..RY10,12 |
4 | ||
| 90176-06014 |
12R..RY10,12 |
4 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-10022 |
12R..RY10,12 |
4 | ||
| 90210-08007 |
12R..RY10,12 |
4 | ||
| 90210-10003 |
12R..RY10,12 |
4 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-31011 |
12R..RY10,12 |
1 | ||
| 11213-31010 |
12R..RY10,12 |
1 | ||
| 11293 - PLATE, ENGINE CAUTION & ENGINE NAME | ||||
| 11293-31050 |
12R..RY10,12 |
1 | ||
| 11293-31041 |
12R..RY10,12 |
1 | ||
| 11293-31040 |
12R..RY10,12 |
1 | ||
| 11293-31070 |
12R..RY10,12 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12108-31013 |
12R..RY10,12 |
1 | ||
| 12181-31020 |
12R..RY10,12 |
1 | ||
| 12181-31020 |
12R,5R..RY1# |
1 | ||
| Linked diagrams | ||||
| 1302 | ||||
| 1603 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
