RY10L-JR (1971)

Toyota Toyoace

Production Sep 1971 - Feb 1979
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7109-7902)

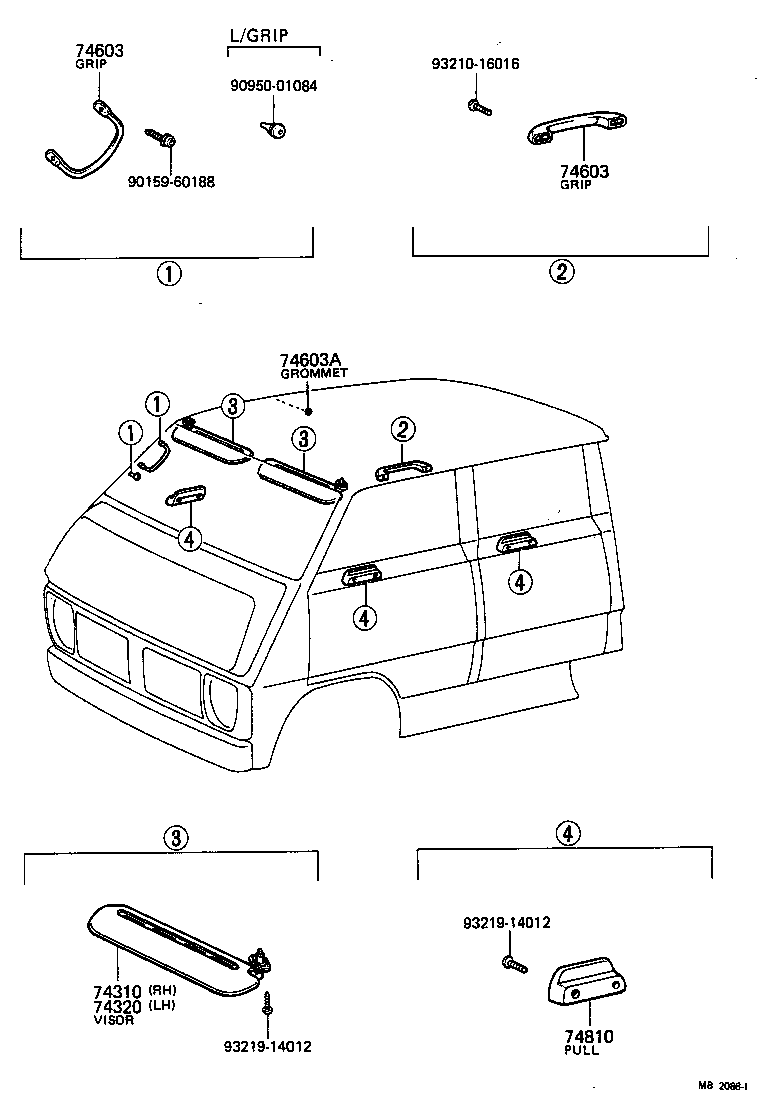

Click highlighted areas on diagram

diagram 74310 74320 74603 74603 74603A 74810 9015960188 9095001084 9321016016 9321914012 9321914012
Part # Description Qty Price
74320 - VISOR ASSY, LH
74320-95010

JY16,RY1#..LHD

 1
74310-95016

JY16,RY1#..LHD

 1
74320-95012

JY16,RY1#..LHD

 1
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74610-95260

JY16,RY1#

FOR DRIVE SIDE

 1
74611-95702

JY16,RY1#

FOR ASSISTANT SIDE

 1
74610-95700

JY16,RY1#

FOR ASSISTANT SIDE

 1
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74610-95260

JY16,RY1#

FOR DRIVE SIDE

 1
74611-95702

JY16,RY1#

FOR ASSISTANT SIDE

 1
74610-95700

JY16,RY1#

FOR ASSISTANT SIDE

 1
74603A - GROMMET (FOR FRONT ASSIST GRIP)
90950-01084

JY16,RY1#..LHD

OD=7

 2
90034-80031

JY16,RY1#

OD=5.5

 2
74810 - PULL ASSY, DOOR, INSIDE
69151-95111

JY16,RY1#

 4
Common parts
90159-60188
90950-01084
93210-16016
93219-14012
