RY10-JRB (1971)

Toyota Toyoace

Production Sep 1971 - Feb 1979
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7109-7902)RY1#

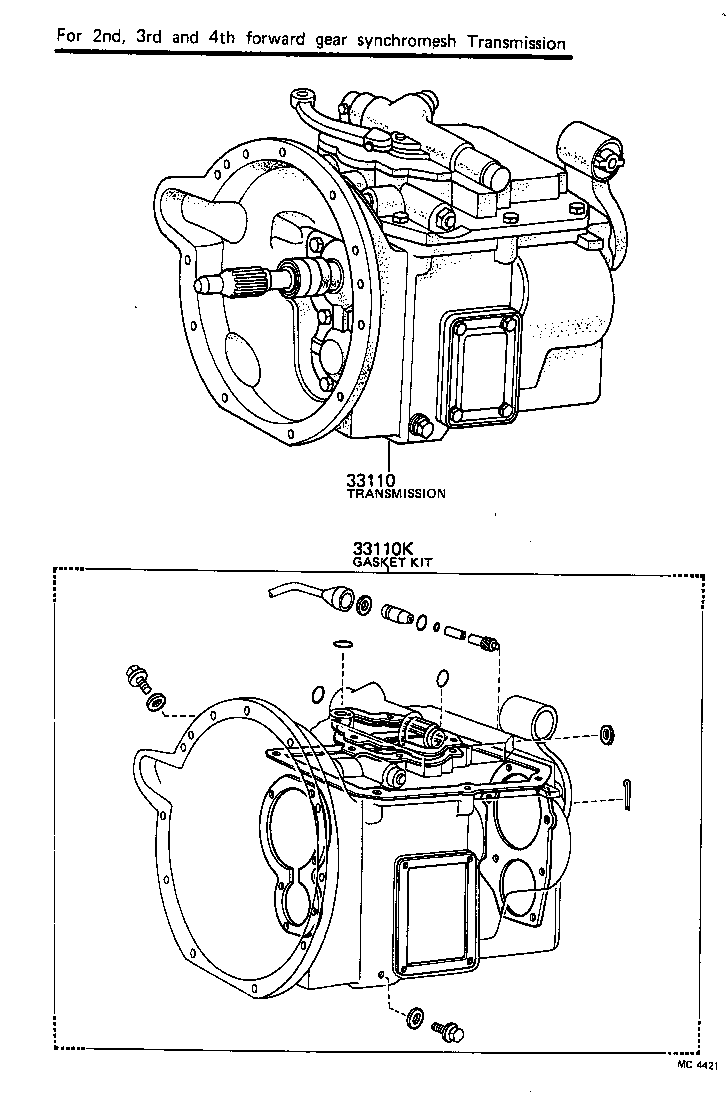

Click highlighted areas on diagram

diagram 33110 33110K
Part # Description Qty Price
33110 - TRANSMISSION ASSY, MANUAL
33110-25140

RY10..RHD

SMG.R=19:4

 1
33110-25330

RY10..RHD

SMG.R=19:4

 1
33110K - GASKET KIT, MANUAL TRANSMISSION OVERHAUL
04331-36010

RY1#

 1
04331-36011

RY1#

 1
