LY30R-QDB (1979)
Toyota Toyoace
Production
Mar 1979
-
Aug 1983
Engine
L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903- )

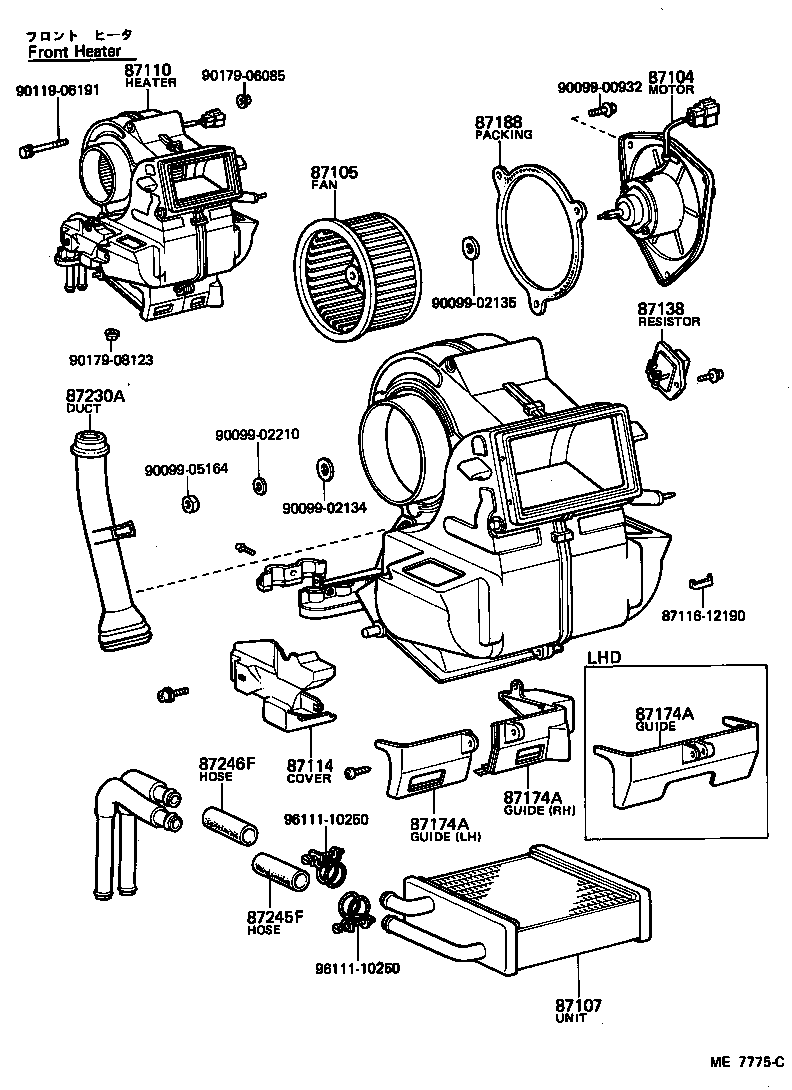

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-95401 |
JY30,LY20,3#,RY20,3#..GEN |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-12030 |
JY30,LY20,3#,RY20,3#..RHD |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-95400 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 87110 - HEATER ASSY | ||||
| 87110-95010 |
JY30,LY20,3#,RY20,3#..RHD..GEN |
1 | ||
| 87114 - COVER, HEATER | ||||
| 87173-12030 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-87003 |
JY30,LY20,3#,RY20,3#..GEN |
1 | ||
| 87174A - GUIDE, AIR HEATER | ||||
| 87174-95010 |
JY30,LY20,3#,RY20,3#..RHD RH |
1 | ||
| 87175-95010 |
JY30,LY20,3#,RY20,3#..RHD LH |
1 | ||
| 87174A - GUIDE, AIR HEATER | ||||
| 87174-95010 |
JY30,LY20,3#,RY20,3#..RHD RH |
1 | ||
| 87175-95010 |
JY30,LY20,3#,RY20,3#..RHD LH |
1 | ||
| 87174A - GUIDE, AIR HEATER | ||||
| 87174-95010 |
JY30,LY20,3#,RY20,3#..RHD RH |
1 | ||
| 87175-95010 |
JY30,LY20,3#,RY20,3#..RHD LH |
1 | ||
| 87188 - PACKING, HEATER BLOWER MOTOR | ||||
| 87128-22010 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 87245F - HOSE, HEATER WATER, INLET F | ||||
| 99552-30100 |
JY30,LY20,3#,RY20,3# *H,L=45 |
1 | ||
| 87246F - HOSE, HEATER WATER, OUTLET F | ||||
| 99552-30100 |
JY30,LY20,3#,RY20,3# *H,L=45 |
1 | ||
| Common parts | ||||
| 87116-12190 | ||||
| 90099-00932 | ||||
| 90099-02134 | ||||
| 90099-02135 | ||||
| 90099-02210 | ||||
| 90099-05164 | ||||
| 90119-06191 | ||||
| 90179-06085 | ||||
| 90179-08123 | ||||
| 96111-10250 | ||||
