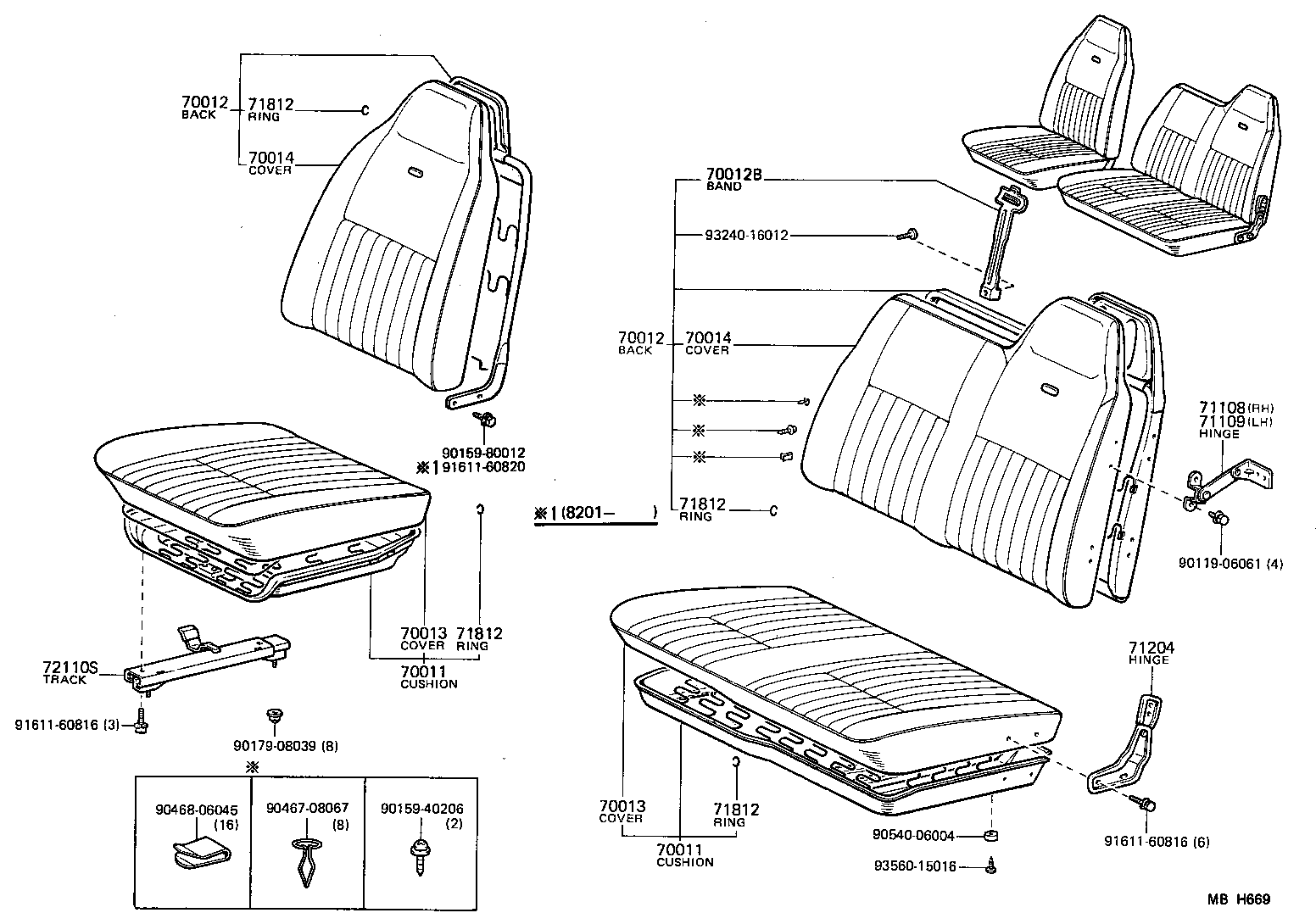

LY30R-QDB (1979)
Toyota Toyoace
(7903- )RHD..15T,20T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 70011 - CUSHION ASSY, NO.1 SEAT | ||||
| 71110-95012 |
JY30,LY20,30,RY20,3#..RHD..GEN VL,RH |
1 | ||
| 71210-95010 |
JY30,LY20,30,RY20,3#..RHD VL,LH |
1 | ||
| 70011 - CUSHION ASSY, NO.1 SEAT | ||||
| 71110-95012 |
JY30,LY20,30,RY20,3#..RHD..GEN VL,RH |
1 | ||
| 71210-95010 |
JY30,LY20,30,RY20,3#..RHD VL,LH |
1 | ||
| 70012 - BACK ASSY, NO.1 SEAT | ||||
| 71150-95010 |
JY30,LY20,30,RY20,3#..RHD..(15T,20T) VL,RH HIGH BACK SEAT |
1 | ||
| 71250-95012 |
JY30,LY20,30,RY20,3#..RHD..(15T,20T)..GEN VL,LH LOW BACK SEAT |
1 | ||
| 71150-95012 |
JY30,LY20,30,RY20,3#..RHD..(15T,20T)..GEN VL,RH LOW BACK SEAT |
1 | ||
| 71250-95010 |
JY30,LY20,30,RY20,3#..RHD..(15T,20T) VL,LH HIGH BACK SEAT |
1 | ||
| 70012 - BACK ASSY, NO.1 SEAT | ||||
| 71150-95010 |
JY30,LY20,30,RY20,3#..RHD..(15T,20T) VL,RH HIGH BACK SEAT |
1 | ||
| 71250-95012 |
JY30,LY20,30,RY20,3#..RHD..(15T,20T)..GEN VL,LH LOW BACK SEAT |
1 | ||
| 71150-95012 |
JY30,LY20,30,RY20,3#..RHD..(15T,20T)..GEN VL,RH LOW BACK SEAT |
1 | ||
| 71250-95010 |
JY30,LY20,30,RY20,3#..RHD..(15T,20T) VL,LH HIGH BACK SEAT |
1 | ||
| 70012B - BAND, ENGINE SERVICE HOLE COVER SUPPORT | ||||
| 58930-95011 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 70013 - COVER ASSY, NO.1 SEAT CUSHION | ||||
| 71071-95028 |
JY30,LY20,30,RY20,3#..RHD VL,RH |
1 | ||
| 71072-95028 |
JY30,LY20,30,RY20,3#..RHD VL,LH |
1 | ||
| 70013 - COVER ASSY, NO.1 SEAT CUSHION | ||||
| 71071-95028 |
JY30,LY20,30,RY20,3#..RHD VL,RH |
1 | ||
| 71072-95028 |
JY30,LY20,30,RY20,3#..RHD VL,LH |
1 | ||
| 70014 - COVER ASSY, NO.1 SEAT BACK | ||||
| 71074-95014 |
JY30,LY20,30,RY20,3#..RHD..(15T,20T) VL,LH HIGH BACK SEAT |
1 | ||
| 71073-95017 |
JY30,LY20,30,RY20,3#..RHD..(15T,20T) VL,RH HIGH BACK SEAT |
1 | ||
| 71073-95019 |
JY30,LY20,30,RY20,3#..RHD..(15T,20T)..GEN VL,RH LOW BACK SEAT |
1 | ||
| 71074-95016 |
JY30,LY20,30,RY20,3#..RHD..(15T,20T)..GEN VL,LH LOW BACK SEAT |
1 | ||
| 70014 - COVER ASSY, NO.1 SEAT BACK | ||||
| 71074-95014 |
JY30,LY20,30,RY20,3#..RHD..(15T,20T) VL,LH HIGH BACK SEAT |
1 | ||
| 71073-95017 |
JY30,LY20,30,RY20,3#..RHD..(15T,20T) VL,RH HIGH BACK SEAT |
1 | ||
| 71073-95019 |
JY30,LY20,30,RY20,3#..RHD..(15T,20T)..GEN VL,RH LOW BACK SEAT |
1 | ||
| 71074-95016 |
JY30,LY20,30,RY20,3#..RHD..(15T,20T)..GEN VL,LH LOW BACK SEAT |
1 | ||
| 71108 - HINGE SUB-ASSY, FRONT SEAT BACK, UPPER RH | ||||
| 71207-95011 |
JY30,LY20,3#,RY20,3#..15T,20T |
1 | ||
| 71109 - HINGE SUB-ASSY, FRONT SEAT BACK, UPPER LH | ||||
| 71207-95011 |
JY30,LY20,3#,RY20,3#..15T,20T |
1 | ||
| 71204 - HINGE SUB-ASSY, PASSENGER SEAT, LH | ||||
| 71204-95012 |
JY30,LY20,3#,RY20,3#..RHD |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
JY30,LY20,30,RY20,3# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
JY30,LY20,30,RY20,3# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
JY30,LY20,30,RY20,3# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
JY30,LY20,30,RY20,3# |
1 | ||
| 72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72110-95012 |
JY30,LY20,3#,RY20,3#..RHD |
1 | ||
| Common parts | ||||
| 90119-06061 | ||||
| 90159-40206 | ||||
| 90159-80012 | ||||
| 90179-08039 | ||||
| 90467-08067 | ||||
| 90468-06045 | ||||
| 90540-06004 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 93240-16012 | ||||
| 93560-15016 | ||||
