LY30R-QDB (1979)

Toyota Toyoace

Production Mar 1979 - Aug 1983
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

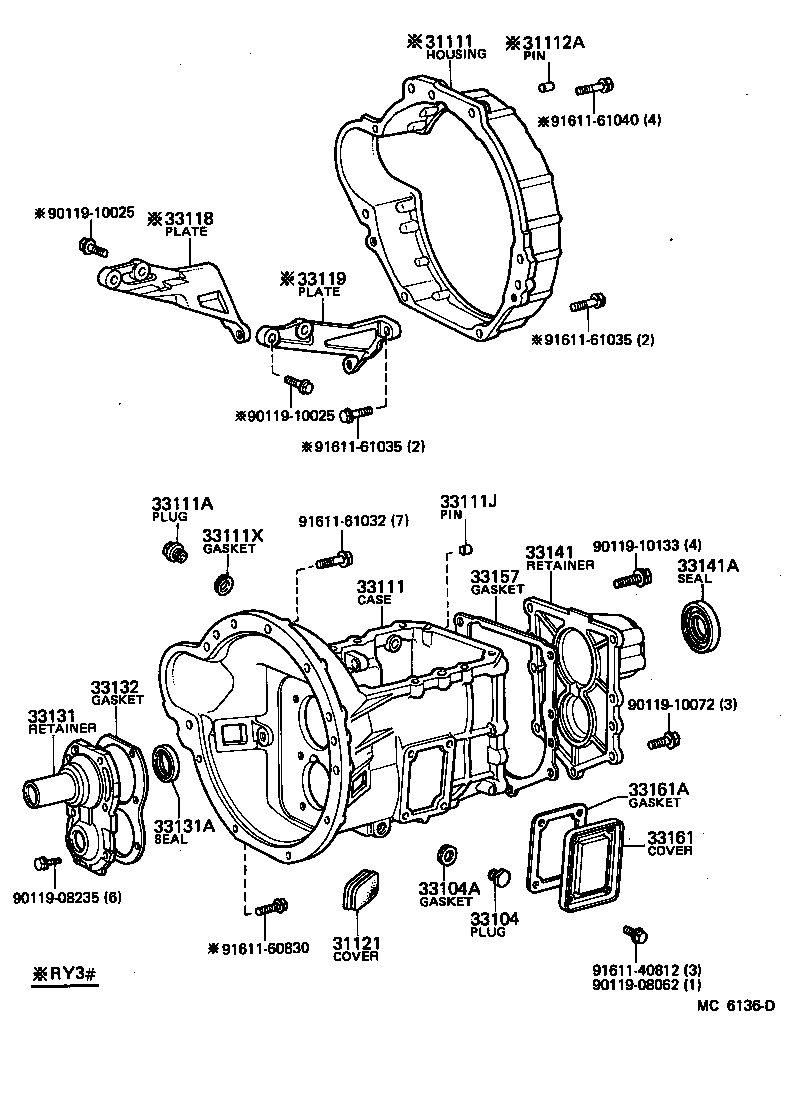

(7903- )RY20,3#

Click highlighted areas on diagram

diagram 31111 31112A 31121 33104 33104A 33111 33111A 33111J 33111X 33118 33119 33131 33131A 33132 33141 33141A 33157 33161 33161A 9011908062 9011908235 9011910025 9011910025 9011910072 9011910133 9161140812 9161160830 9161161032 9161161035 9161161035 9161161040
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31112-25010

LY20,3#

 1
31112A - PIN, DOWEL CLUTCH HOUSING
90250-10052

LY20,3#,RY31

 2
31121 - COVER, CLUTCH HOUSING, NO.1
31121-25021

LY20,3#,RY20,3#

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18081

LY20,3#,RY20,3#

 1
33104A - GASKET, DRAIN PLUG(MTM)
12157-10010

JY30,LY20,30,RY20,3#

 1
33111 - CASE, MANUAL TRANSMISSION
33111-25050

RY20,3#

 1
33111-25060

LY20,3#

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18002

JY30,LY20,30,RY20,3#

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-10214

LY20,3#,RY20,3#

L=14,OD=10,L=14,D=10

 2
33111X - GASKET, TRANSMISSION CASE PLUG
12157-10010

JY30,LY20,30,RY20,3#

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-25020

LY20,3#

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-25020

LY20,3#

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-35011

LY20,3#,RY20,3#

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-28004

LY20,3#,RY20,3#

 1
33132 - GASKET, FRONT BEARING RETAINER(MTM)
33132-25010

LY20,3#,RY20,3#

 1
33141 - RETAINER, TRANSMISSION BEARING, REAR
33141-25020

RY20,3#

 1
33141-25030

LY20,30

 1
33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER)
90311-38093

LY20,3#,RY20,3#

 1
33157 - GASKET, TRANSMISSION CASE, NO.2
33142-25010

LY20,3#,RY20,3#

 1
33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF
33161-25010

LY20,3#,RY20,3#

 1
33161A - GASKET, TRANSMISSION POWER TAKE-OFF COVER(MTM)
33162-25010

LY20,3#,RY20,3#

 1
Common parts
90119-08062
90119-08235
90119-10025
90119-10072
90119-10133
91611-40812
91611-60830
91611-61032
91611-61035
91611-61040

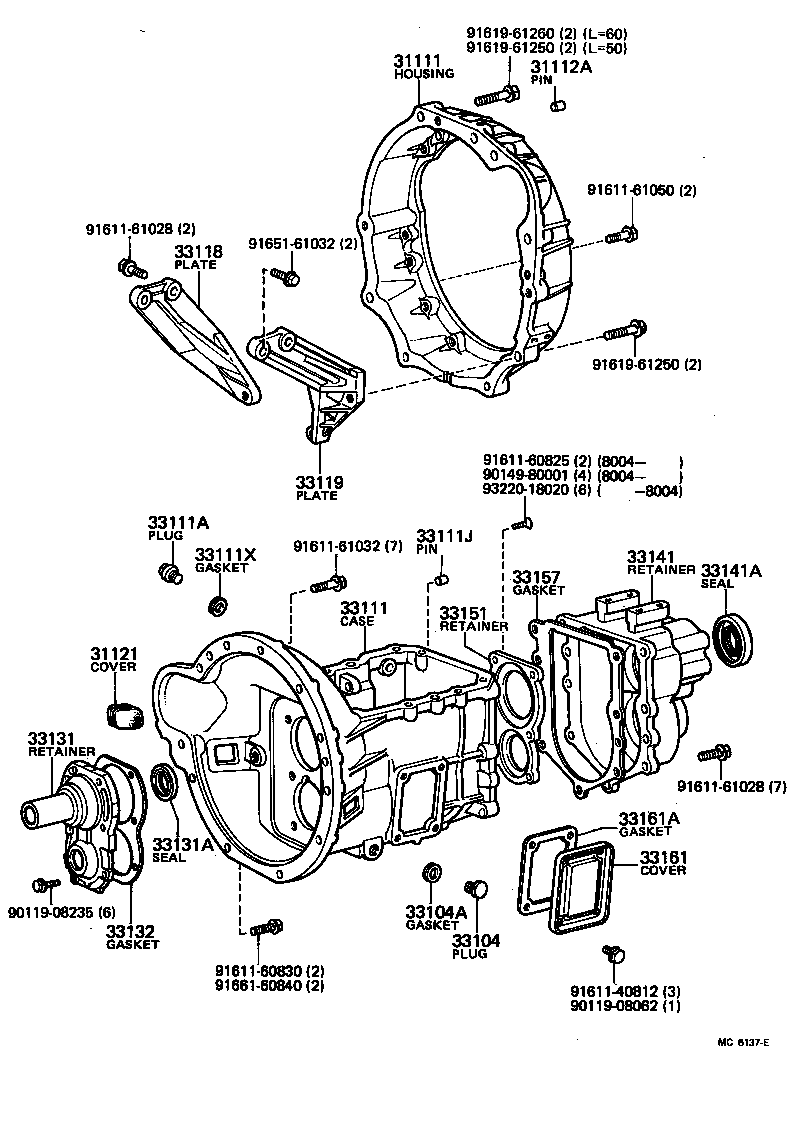

(7903- )LY20,3#

Click highlighted areas on diagram

diagram 31111 31112A 31121 33104 33104A 33111 33111A 33111J 33111X 33118 33119 33131 33131A 33132 33141 33141A 33151 33157 33161 33161A 9011908062 9011908235 9014980001 9161140812 9161160825 9161160830 9161161028 9161161028 9161161032 9161161050 9161961250 9161961250 9161961260 9165161032 9166160840 9322018020
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31112-25010

LY20,3#

 1
31112A - PIN, DOWEL CLUTCH HOUSING
90250-10052

LY20,3#,RY31

 2
31121 - COVER, CLUTCH HOUSING, NO.1
31121-25021

LY20,3#,RY20,3#

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18081

LY20,3#,RY20,3#

 1
33104A - GASKET, DRAIN PLUG(MTM)
12157-10010

JY30,LY20,30,RY20,3#

 1
33111 - CASE, MANUAL TRANSMISSION
33111-25050

RY20,3#

 1
33111-25060

LY20,3#

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18002

JY30,LY20,30,RY20,3#

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-10214

LY20,3#,RY20,3#

L=14,OD=10,L=14,D=10

 2
33111X - GASKET, TRANSMISSION CASE PLUG
12157-10010

JY30,LY20,30,RY20,3#

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-25020

LY20,3#

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-25020

LY20,3#

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-35011

LY20,3#,RY20,3#

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-28004

LY20,3#,RY20,3#

 1
33132 - GASKET, FRONT BEARING RETAINER(MTM)
33132-25010

LY20,3#,RY20,3#

 1
33141 - RETAINER, TRANSMISSION BEARING, REAR
33141-25020

RY20,3#

 1
33141-25030

LY20,30

 1
33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER)
90311-38093

LY20,3#,RY20,3#

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-25011

LY20,30

 1
33151-25010

LY20,30

 1
33157 - GASKET, TRANSMISSION CASE, NO.2
33142-25010

LY20,3#,RY20,3#

 1
33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF
33161-25010

LY20,3#,RY20,3#

 1
33161A - GASKET, TRANSMISSION POWER TAKE-OFF COVER(MTM)
33162-25010

LY20,3#,RY20,3#

 1
Common parts
90119-08062
90119-08235
90149-80001
91611-40812
91611-60825
91611-60830
91611-61028
91611-61032
91611-61050
91619-61250
91619-61260
91651-61032
91661-60840
93220-18020
