LY30R-QDB (1979)

Toyota Toyoace

Production Mar 1979 - Aug 1983
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

Click highlighted areas on diagram

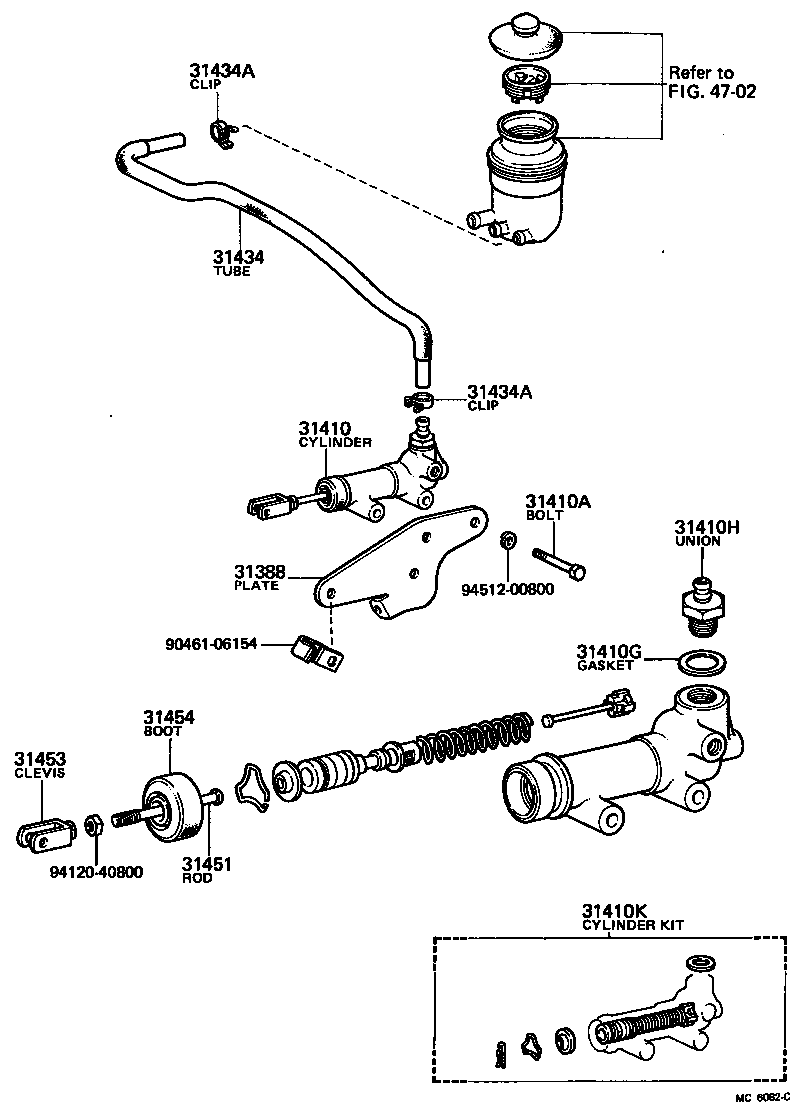

diagram 31388 31410 31410A 31410G 31410H 31410K 31434 31434A 31434A 31451 31453 31454 4702 9046106154 9412040800 9451200800
Part # Description Qty Price
31388 - SUPPORT, CLUTCH MASTER CYLINDER
55107-95015

JY30,LY20,3#,RY20,3#

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-36030

JY30,LY20,3#,RY20,3#

 1
31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING)
91121-40870

JY30,LY20,3#,RY20,3#

 2
31410G - GASKET(FOR CLUTCH MASTER CYLINDER UNION)
90430-16242

JY30,LY20,3#,RY20,3#

 1
31410H - UNION(FOR CLUTCH MASTER CYLINDER)
90404-16307

JY30,LY20,3#,RY20,3#

 1
31410K - CYLINDER KIT, CLUTCH MASTER
04311-14010

JY30,LY20,3#,RY20,3#

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-25030

JY30,LY20,3#,RY20,3#..RHD

 1
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96132-30800

JY30,LY20,3#,RY20,3#

 2
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96132-30800

JY30,LY20,3#,RY20,3#

 2
31451 - ROD, CLUTCH MASTER CYLINDER PUSH
31451-14010

JY30,LY20,3#,RY20,3#

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31453-22010

JY30,LY20,3#,RY20,3#

 1
31454 - BOOT, CLUTCH MASTER CYLINDER
31454-14010

JY30,LY20,3#,RY20,3#

 1
Common parts
90461-06154
94120-40800
94512-00800
Linked diagrams
4702
