LY20R-QDB (1979)
Toyota Toyoace
Production
Mar 1979
-
Jan 1982
Engine
L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903- )

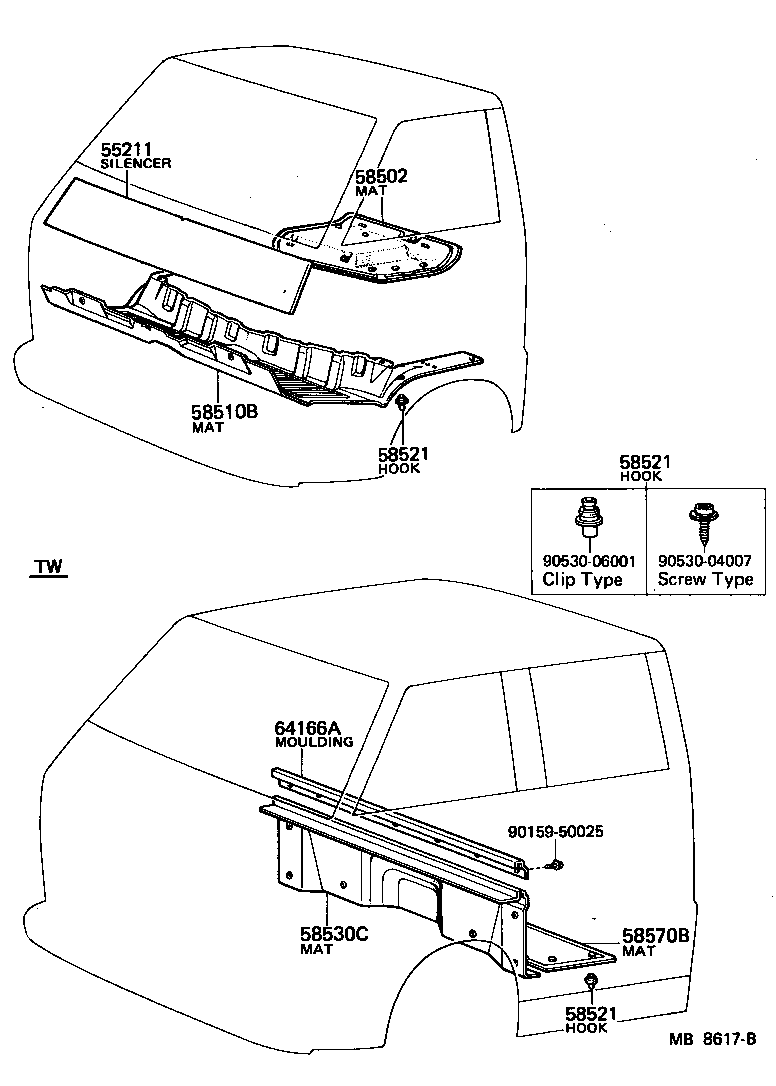

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55211 - SILENCER, FRONT PANEL | ||||
| 55211-95013 |
JY30,LY20,30 |
1 | ||
| 55211-95014 |
JY30,LY20,30 |
1 | ||
| 58502 - MAT ASSY, ENGINE SERVICE HOLE COVER | ||||
| 58504-95011 |
JY30,LY20,30,RY20,3#..RHD |
1 | ||
| 58510B - MAT, FRONT FLOOR, FRONT | ||||
| 58501-95018 |
JY30,LY20,30,RY20,3#..RHD |
1 | ||
| 58501-95012 |
JY30,LY20,30,RY20,3#..RHD |
1 | ||
| 58521 - HOOK, MALE, NO.1 | ||||
| 90530-06001 |
JY30,LY20,3#,RY20,3# CLIP TYPE |
1 | ||
| 58521 - HOOK, MALE, NO.1 | ||||
| 90530-06001 |
JY30,LY20,3#,RY20,3# CLIP TYPE |
1 | ||
| 58521 - HOOK, MALE, NO.1 | ||||
| 90530-06001 |
JY30,LY20,3#,RY20,3# CLIP TYPE |
1 | ||
| Common parts | ||||
| 90159-50025 | ||||
| 90530-04007 | ||||
| 90530-06001 | ||||
