JY30R-QDH (1979)

Toyota Toyoace

Production Mar 1979 - Aug 1983
Engine 2J
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8308)2J

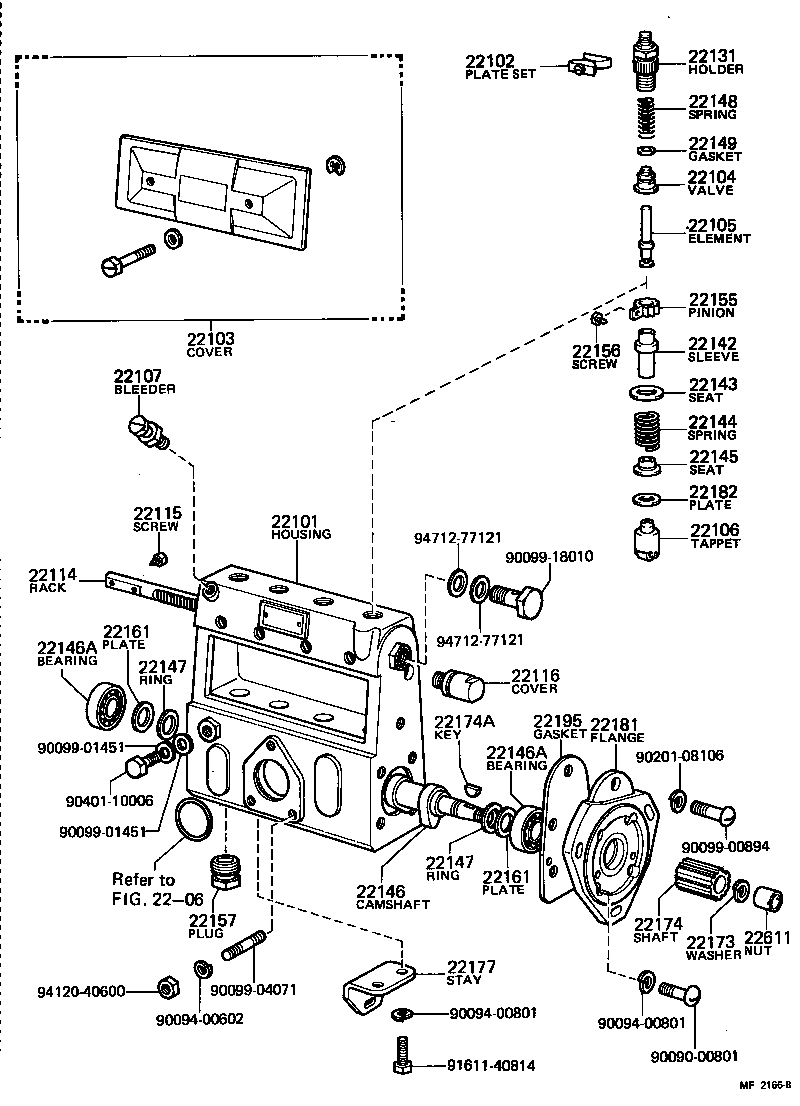

Click highlighted areas on diagram

diagram 2206 22101 22102 22103 22104 22105 22106 22107 22114 22115 22116 22131 22142 22143 22144 22145 22146 22146A 22146A 22147 22147 22148 22149 22155 22156 22157 22161 22161 22173 22174 22174A 22177 22181 22182 22195 22611 9009000801 9009400602 9009400801 9009400801 9009900894 9009901451 9009901451 9009904071 9009918010 9020108106 9040110006 9161140814 9412040600 9471277121 9471277121
Part # Description Qty Price
22101 - HOUSING SUB-ASSY, INJECTION PUMP
22190-48032

2J..JY30

 1
22102 - PLATE SET, VALVE HOLDER LOCK
22102-77021

2J..JY30

 3
22103 - COVER SUB-ASSY, INJECTION PUMP
22103-48030

2J..JY30

 1
22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22104-77020

2J..JY30

 4
22105 - ELEMENT SUB-ASSY, INJECTION PUMP
22105-48110

2J..JY30

 4
22106 - TAPPET SUB-ASSY, INJECTION PUMP
22106-46010

2J..JY30

 4
22107 - BLEEDER SUB-ASSY, AIR
22150-67010

2J..JY30

 1
22114 - RACK, CONTROL
22114-48030

2J..JY30

 1
22115 - SCREW, RACK GUIDE
22115-77020

2J..JY30

 1
22116 - COVER, CONTROL RACK
22116-46010

2J..JY30

 1
22131 - HOLDER, DELIVERY VALVE
22131-77020

2J..JY30

 4
22142 - SLEEVE, PLUNGER CONTROL
22142-77020

2J..JY30

 4
22143 - SEAT, SPRING UPPER
22143-77020

2J..JY30

 4
22144 - SPRING, PUMP PLUNGER
22144-46010

2J..JY30

 4
22145 - SEAT, SPRING, LOWER
22145-46010

2J..JY30

 4
22146 - CAMSHAFT, INJECTION PUMP
22146-56010

2J..JY30

 1
22146A - BEARING(FOR INJECTION CAMSHAFT)
90099-10087

2J..JY30

 2
22146A - BEARING(FOR INJECTION CAMSHAFT)
90099-10087

2J..JY30

 2
22147 - RING, CAMSHAFT ADJUST
22147-77020

2J..JY30

 2
22147 - RING, CAMSHAFT ADJUST
22147-77020

2J..JY30

 2
22148 - SPRING, DELIVERY VALVE
22148-46010

2J..JY30

 4
22149 - GASKET, DELIVERY VALVE
22149-76010

2J..JY30

 4
22155 - PINION, PLUNGER CONTROL
22155-76010

2J..JY30

 4
22156 - SCREW, PLUNGER CONTROL PINION CLAMP
22156-76010

2J..JY30

 4
22157 - PLUG, INJECTION PUMP FELT PLATE
22157-48023

2J..JY30

 4
22161 - PLATE, CAMSHAFT SHIM
22161-76010

2J..JY30

T=0.10,T=0.10

 1
22164-76010

2J..JY30

T=0.16,T=0.16

 1
22162-76010

2J..JY30

T=0.12,T=0.12

 1
22166-76010

2J..JY30

T=0.50,T=0.50

 1
22165-76010

2J..JY30

T=0.18,T=0.18

 1
22163-76010

2J..JY30

T=0.14,T=0.14

 1
22161 - PLATE, CAMSHAFT SHIM
22161-76010

2J..JY30

T=0.10,T=0.10

 1
22164-76010

2J..JY30

T=0.16,T=0.16

 1
22162-76010

2J..JY30

T=0.12,T=0.12

 1
22166-76010

2J..JY30

T=0.50,T=0.50

 1
22165-76010

2J..JY30

T=0.18,T=0.18

 1
22163-76010

2J..JY30

T=0.14,T=0.14

 1
22173 - WASHER, SPRING
22173-46010

2J..JY30

 1
22174 - SHAFT, SPLINE
22174-47010

2J..JY30

 1
22174A - KEY(FOR SPLINE SHAFT)
90099-13002

2J..JY30

 1
22177 - STAY, INJECTION PUMP BODY
22177-48030

2J..JY30

 1
22181 - FLANGE, INJECTION PUMP
22181-48031

2J..JY30

 1
22182 - PLATE, TAPPET ADJUSTING SHIM
22182-46010

2J..JY30

T=0.10,T=0.10

 1
22185-46010

2J..JY30

T=0.40,T=0.40

 1
22186-48010

2J..JY30

T=0.15,T=0.15

 1
22183-46010

2J..JY30

T=0.20,T=0.20

 1
22189-48031

2J..JY30

T=0.90,T=0.90

 1
22188-46010

2J..JY30

T=0.70,T=0.70

 1
22187-46010

2J..JY30

T=0.60,T=0.60

 1
22186-46010

2J..JY30

T=0.50,T=0.50

 1
22184-46010

2J..JY30

T=0.30,T=0.30

 1
22189-48035

2J..JY30

T=1.30,T=1.30

 1
22189-48032

2J..JY30

T=1.00,T=1.00

 1
22189-46010

2J..JY30

T=0.80,T=0.80

 1
22189-48034

2J..JY30

T=1.20,T=1.20

 1
22189-48036

2J..JY30

T=1.40,T=1.40

 1
22189-48033

2J..JY30

T=1.10,T=1.10

 1
22195 - GASKET, BEARING COVER
22195-48030

2J..JY30

 1
22611 - NUT, TIMER ROUND
22611-46010

2J..JY30

 1
Common parts
90090-00801
90094-00602
90094-00801
90099-00894
90099-01451
90099-04071
90099-18010
90201-08106
90401-10006
91611-40814
94120-40600
94712-77121
