JY30R-QDH (1979)
Toyota Toyoace
Production
Mar 1979
-
Aug 1983
Engine
2J
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903-8308)2J

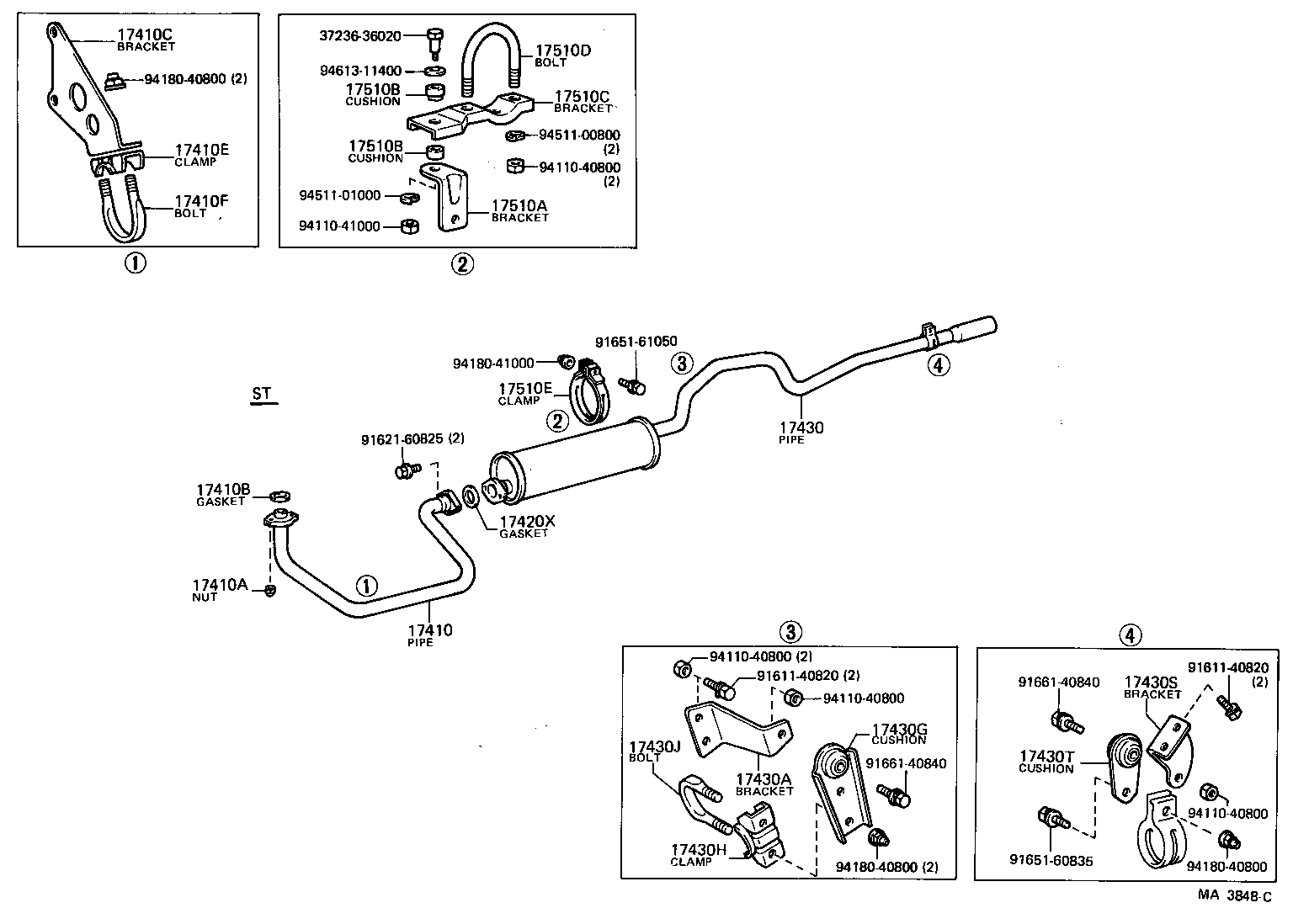

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-48060 |
2J..JY30 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10118 |
12R,2J..JY30,RY20,30 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
L,12R,2J,2L..JY30,LY20,3#,RY20,30 |
1 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-48020 |
2J..JY30 |
1 | ||
| 17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 90917-04021 |
L,12R,2J,2L..JY30,LY20,3#,RY20,30 |
1 | ||
| 17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 90117-08205 |
L,12R,2J,2L..JY30,LY20,3#,RY20,30 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06008 |
2J..JY30 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-48020 |
2J..JY30 |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17573-48060 |
2J..JY30 |
1 | ||
| 17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 90917-08012 |
2J..JY30 |
1 | ||
| 17430H - CLAMP NO.1, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 90917-04021 |
2J..JY30 |
1 | ||
| 17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 90117-08205 |
2J..JY30 |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17574-56040 |
2J..JY30 |
1 | ||
| 17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90917-08004 |
L,12R,2J,5R..JY30,LY20,30,RY20,3# |
1 | ||
| 17510A - BRACKET, MUFFLER, FRONT | ||||
| 17576-56030 |
2J..JY30 |
1 | ||
| 17510B - CUSHION, MUFFLER, FRONT | ||||
| 90540-15003 |
2J..JY30 UPR |
1 | ||
| 90540-14001 |
2J..JY30 LWR |
1 | ||
| 17510B - CUSHION, MUFFLER, FRONT | ||||
| 90540-15003 |
2J..JY30 UPR |
1 | ||
| 90540-14001 |
2J..JY30 LWR |
1 | ||
| 17510C - CLAMP NO.1, MUFFLER, FRONT | ||||
| 17572-56100 |
2J..JY30 |
1 | ||
| 17510D - BOLT OR RING, MUFFLER, FRONT | ||||
| 90117-08005 |
2J..JY30 |
1 | ||
| 17510E - CLAMP NO.2, MUFFLER, FRONT | ||||
| 17578-56030 |
2J..JY30 |
1 | ||
| Common parts | ||||
| 37236-36020 | ||||
| 91611-40820 | ||||
| 91621-60825 | ||||
| 91651-60835 | ||||
| 91651-61050 | ||||
| 91661-40840 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94180-40800 | ||||
| 94180-41000 | ||||
| 94511-00800 | ||||
| 94511-01000 | ||||
| 94613-11400 | ||||
