JY30R-QDBH3 (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 2J
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

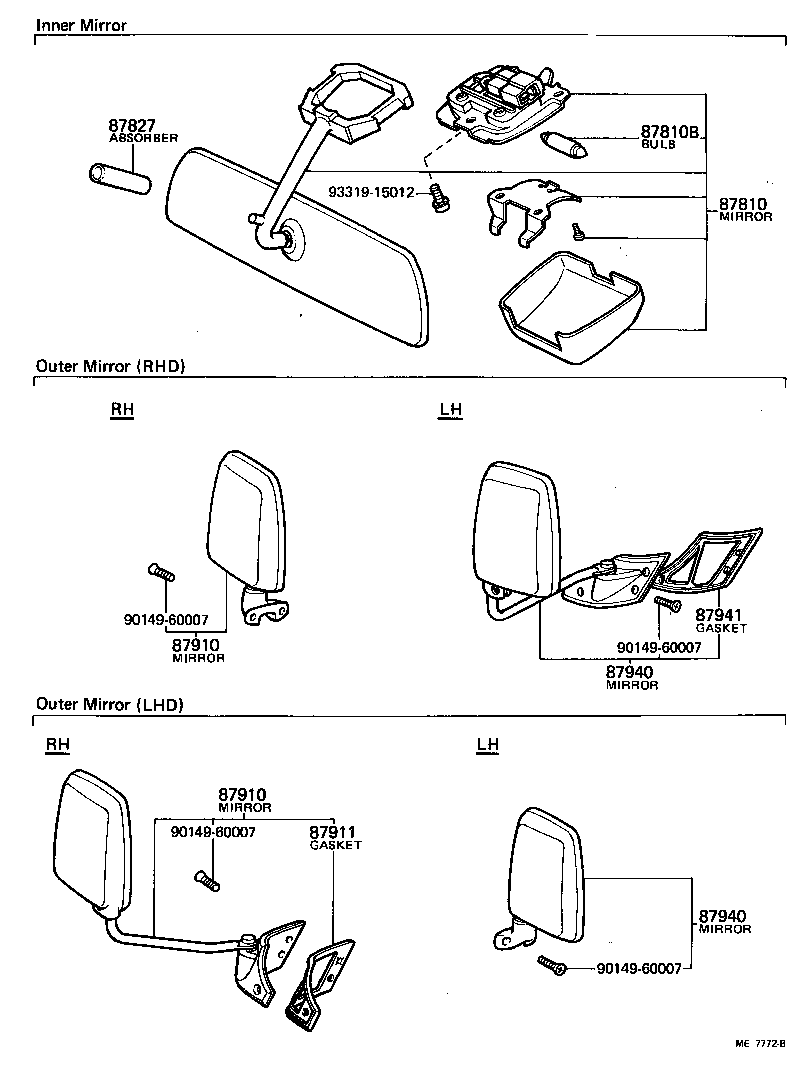

Click highlighted areas on diagram

diagram 87810 87810B 87827 87910 87910 87911 87940 87940 87941 9014960007 9014960007 9014960007 9014960007 9331915012
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-95016

JY30,LY20,30,RY20,3#

 1
87810B - BULB, INNER REAR VIEW MIRROR LAMP
90981-11027

JY30,LY20,3#,RY20,3#

12V 10W,12V 10W

 1
87827 - ABSORBER, INNER REAR VIEW MIRROR
87828-30010

JY30,LY20,3#,RY20,3#

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-29345

JY30,LY20,3#,RY20,3#..RHD..GEN

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-29345

JY30,LY20,3#,RY20,3#..RHD..GEN

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-29355

JY30,LY20,3#,RY20,3#..RHD..GEN

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-29355

JY30,LY20,3#,RY20,3#..RHD..GEN

 1
87941 - GASKET, OUTER REAR VIEW MIRROR, LH
87926-95013

JY30,LY20,30,RY20,3#..RHD

 1
Common parts
90149-60007
93319-15012
