JY30R-QDBH3 (1979)
Toyota Toyoace
Production
Mar 1979
-
Jan 1982
Engine
2J
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903- )20T

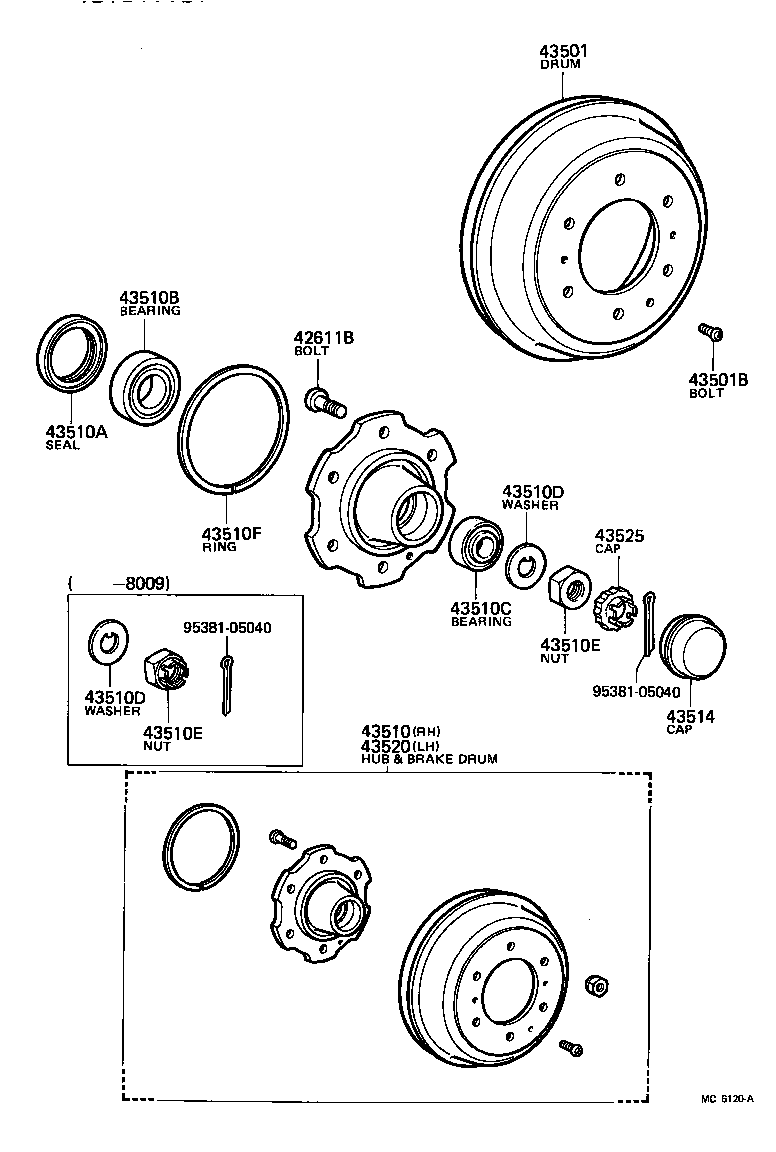

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42611B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02025 |
JY30,RY31..20T LH |
6 | ||
| 90942-02024 |
JY30,RY31..20T RH |
6 | ||
| 43501 - DRUM SUB-ASSY, FRONT BRAKE | ||||
| 43512-36020 |
JY30,RY31..20T |
2 | ||
| 43501B - BOLT, SET (FOR FRONT BRAKE DRUM SETTING) | ||||
| 90113-10015 |
JY30,RY31..20T |
2 | ||
| 43510 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH | ||||
| 43510-36050 |
JY30,RY31..20T |
1 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90311-68001 |
JY30,RY31..20T |
2 | ||
| 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) | ||||
| 90368-42045 |
JY30,RY31..20T |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-28001 |
JY30,RY31..20T |
2 | ||
| 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-27001 |
JY30,RY31..20T |
2 | ||
| 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-27001 |
JY30,RY31..20T |
2 | ||
| 43510E - NUT (FOR STEERING KNUCKLE) | ||||
| 90171-26001 |
JY30,RY31..20T |
2 | ||
| 43510E - NUT (FOR STEERING KNUCKLE) | ||||
| 90171-26001 |
JY30,RY31..20T |
2 | ||
| 43510F - RING, SHAFT SNAP (FOR FRONT AXLE HUB) | ||||
| 90520-99065 |
JY30,RY31..20T T=1.60 |
2 | ||
| 43514 - CAP, FRONT HUB GREASE | ||||
| 43514-36030 |
JY30,RY31..20T |
2 | ||
| 43520 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH | ||||
| 43520-36050 |
JY30,RY31..20T |
1 | ||
| Common parts | ||||
| 95381-05040 | ||||
