JY30R-QDBH3 (1979)
Toyota Toyoace
Production
Mar 1979
-
Jan 1982
Engine
2J
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903-8308)2J

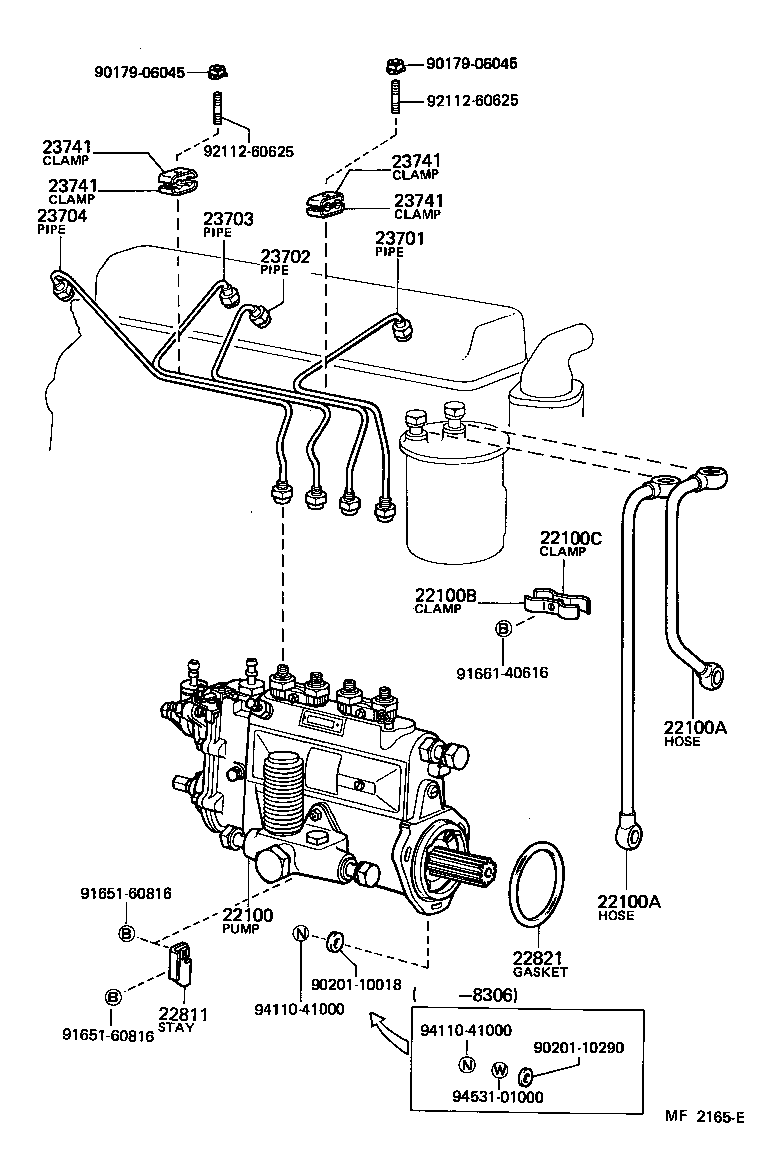

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-48072 |
2J..JY30 |
1 | ||
| 22100-48101 |
2J..JY30 HAC |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 23802-48010 |
2J..JY30 INJECTION PUMP |
1 | ||
| 23801-48010 |
2J..JY30 FEED PUMP |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 23802-48010 |
2J..JY30 INJECTION PUMP |
1 | ||
| 23801-48010 |
2J..JY30 FEED PUMP |
1 | ||
| 22100B - CLAMP, FUEL HOSE, NO.1 | ||||
| 23841-56010 |
2J..JY30 |
1 | ||
| 22100C - CLAMP, FUEL HOSE, NO.2 | ||||
| 23842-56010 |
2J..JY30 |
1 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-48020 |
2J..JY30 |
1 | ||
| 22821 - GASKET, INJECTION PUMP | ||||
| 90301-77001 |
2J..JY30 |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-48011 |
2J..JY30 |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-48011 |
2J..JY30 |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-48011 |
2J..JY30 |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-48011 |
2J..JY30 |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
2J..JY30 |
4 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
2J..JY30 |
4 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
2J..JY30 |
4 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
2J..JY30 |
4 | ||
| Common parts | ||||
| 90179-06045 | ||||
| 90201-10018 | ||||
| 90201-10290 | ||||
| 91651-60816 | ||||
| 91661-40616 | ||||
| 92112-60625 | ||||
| 94110-41000 | ||||
| 94531-01000 | ||||
