JY30R-QDBH3 (1979)
Toyota Toyoace

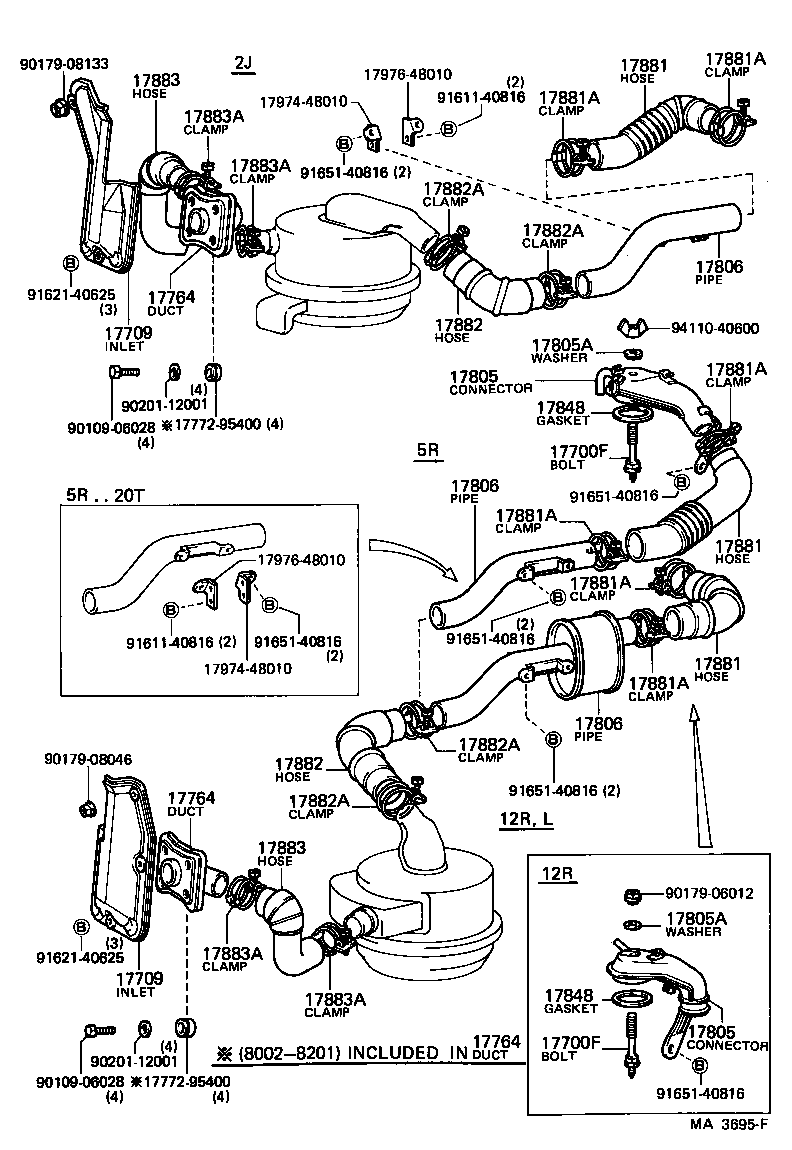

(7903-8201)2J
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17709 - INLET SUB-ASSY, AIR CLEANER | ||||
| 17709-95011 |
2J..JY30 |
1 | ||
| 17709-95011 |
2J..JY30 |
1 | ||
| 17709-95011 |
2J..JY30 |
1 | ||
| 17709 - INLET SUB-ASSY, AIR CLEANER | ||||
| 17709-95011 |
2J..JY30 |
1 | ||
| 17709-95011 |
2J..JY30 |
1 | ||
| 17709-95011 |
2J..JY30 |
1 | ||
| 17764 - DUCT, AIR CLEANER | ||||
| 17701-95012 |
2J..JY30 |
1 | ||
| 17701-95012 |
2J..JY30 |
1 | ||
| 17701-95012 |
2J..JY30 |
1 | ||
| 17764 - DUCT, AIR CLEANER | ||||
| 17701-95012 |
2J..JY30 |
1 | ||
| 17701-95012 |
2J..JY30 |
1 | ||
| 17701-95012 |
2J..JY30 |
1 | ||
| 17764 - DUCT, AIR CLEANER | ||||
| 17701-95012 |
2J..JY30 |
1 | ||
| 17701-95012 |
2J..JY30 |
1 | ||
| 17701-95012 |
2J..JY30 |
1 | ||
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17805-48020 |
2J..JY30 |
1 | ||
| 17805-48020 |
2J..JY30 |
1 | ||
| 17805-48020 |
2J..JY30 |
1 | ||
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17805-48020 |
2J..JY30 |
1 | ||
| 17805-48020 |
2J..JY30 |
1 | ||
| 17805-48020 |
2J..JY30 |
1 | ||
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17805-48020 |
2J..JY30 |
1 | ||
| 17805-48020 |
2J..JY30 |
1 | ||
| 17805-48020 |
2J..JY30 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-48050 |
2J..JY30 |
1 | ||
| 17881-48050 |
2J..JY30 |
1 | ||
| 17881-48050 |
2J..JY30 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-48050 |
2J..JY30 |
1 | ||
| 17881-48050 |
2J..JY30 |
1 | ||
| 17881-48050 |
2J..JY30 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-48050 |
2J..JY30 |
1 | ||
| 17881-48050 |
2J..JY30 |
1 | ||
| 17881-48050 |
2J..JY30 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
2J..JY30 AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
2J..JY30 AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
2J..JY30 AIR CLEANER SIDE |
1 | ||
| 96111-10690 |
2J..JY30 ENGINE SIDE |
1 | ||
| 96111-10690 |
2J..JY30 ENGINE SIDE |
1 | ||
| 96111-10690 |
2J..JY30 ENGINE SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
2J..JY30 AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
2J..JY30 AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
2J..JY30 AIR CLEANER SIDE |
1 | ||
| 96111-10690 |
2J..JY30 ENGINE SIDE |
1 | ||
| 96111-10690 |
2J..JY30 ENGINE SIDE |
1 | ||
| 96111-10690 |
2J..JY30 ENGINE SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
2J..JY30 AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
2J..JY30 AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
2J..JY30 AIR CLEANER SIDE |
1 | ||
| 96111-10690 |
2J..JY30 ENGINE SIDE |
1 | ||
| 96111-10690 |
2J..JY30 ENGINE SIDE |
1 | ||
| 96111-10690 |
2J..JY30 ENGINE SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
2J..JY30 AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
2J..JY30 AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
2J..JY30 AIR CLEANER SIDE |
1 | ||
| 96111-10690 |
2J..JY30 ENGINE SIDE |
1 | ||
| 96111-10690 |
2J..JY30 ENGINE SIDE |
1 | ||
| 96111-10690 |
2J..JY30 ENGINE SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
2J..JY30 AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
2J..JY30 AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
2J..JY30 AIR CLEANER SIDE |
1 | ||
| 96111-10690 |
2J..JY30 ENGINE SIDE |
1 | ||
| 96111-10690 |
2J..JY30 ENGINE SIDE |
1 | ||
| 96111-10690 |
2J..JY30 ENGINE SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
2J..JY30 AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
2J..JY30 AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
2J..JY30 AIR CLEANER SIDE |
1 | ||
| 96111-10690 |
2J..JY30 ENGINE SIDE |
1 | ||
| 96111-10690 |
2J..JY30 ENGINE SIDE |
1 | ||
| 96111-10690 |
2J..JY30 ENGINE SIDE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-48050 |
2J..JY30 |
1 | ||
| 17882-48050 |
2J..JY30 |
1 | ||
| 17882-48050 |
2J..JY30 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-48050 |
2J..JY30 |
1 | ||
| 17882-48050 |
2J..JY30 |
1 | ||
| 17882-48050 |
2J..JY30 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
2J..JY30 |
2 | ||
| 96111-10750 |
2J..JY30 |
2 | ||
| 96111-10750 |
2J..JY30 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
2J..JY30 |
2 | ||
| 96111-10750 |
2J..JY30 |
2 | ||
| 96111-10750 |
2J..JY30 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
2J..JY30 |
2 | ||
| 96111-10750 |
2J..JY30 |
2 | ||
| 96111-10750 |
2J..JY30 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
2J..JY30 |
2 | ||
| 96111-10750 |
2J..JY30 |
2 | ||
| 96111-10750 |
2J..JY30 |
2 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-95011 |
2J..JY30 CYCLONE TYPE |
1 | ||
| 17883-95011 |
2J..JY30 CYCLONE TYPE |
1 | ||
| 17883-95011 |
2J..JY30 CYCLONE TYPE |
1 | ||
| 17883-95013 |
2J..JY30 OIL BATH TYPE |
1 | ||
| 17883-95013 |
2J..JY30 OIL BATH TYPE |
1 | ||
| 17883-95013 |
2J..JY30 OIL BATH TYPE |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-95011 |
2J..JY30 CYCLONE TYPE |
1 | ||
| 17883-95011 |
2J..JY30 CYCLONE TYPE |
1 | ||
| 17883-95011 |
2J..JY30 CYCLONE TYPE |
1 | ||
| 17883-95013 |
2J..JY30 OIL BATH TYPE |
1 | ||
| 17883-95013 |
2J..JY30 OIL BATH TYPE |
1 | ||
| 17883-95013 |
2J..JY30 OIL BATH TYPE |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
2J..JY30 |
2 | ||
| 96111-10750 |
2J..JY30 |
2 | ||
| 96111-10750 |
2J..JY30 |
2 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
2J..JY30 |
2 | ||
| 96111-10750 |
2J..JY30 |
2 | ||
| 96111-10750 |
2J..JY30 |
2 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
2J..JY30 |
2 | ||
| 96111-10750 |
2J..JY30 |
2 | ||
| 96111-10750 |
2J..JY30 |
2 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
2J..JY30 |
2 | ||
| 96111-10750 |
2J..JY30 |
2 | ||
| 96111-10750 |
2J..JY30 |
2 | ||
| Common parts | ||||
| 17772-95400 | ||||
| 17974-48010 | ||||
| 17976-48010 | ||||
| 90109-06028 | ||||
| 90179-06012 | ||||
| 90179-08046 | ||||
| 90179-08133 | ||||
| 90201-12001 | ||||
| 91611-40816 | ||||
| 91621-40625 | ||||
| 91651-40816 | ||||
| 94110-40600 | ||||

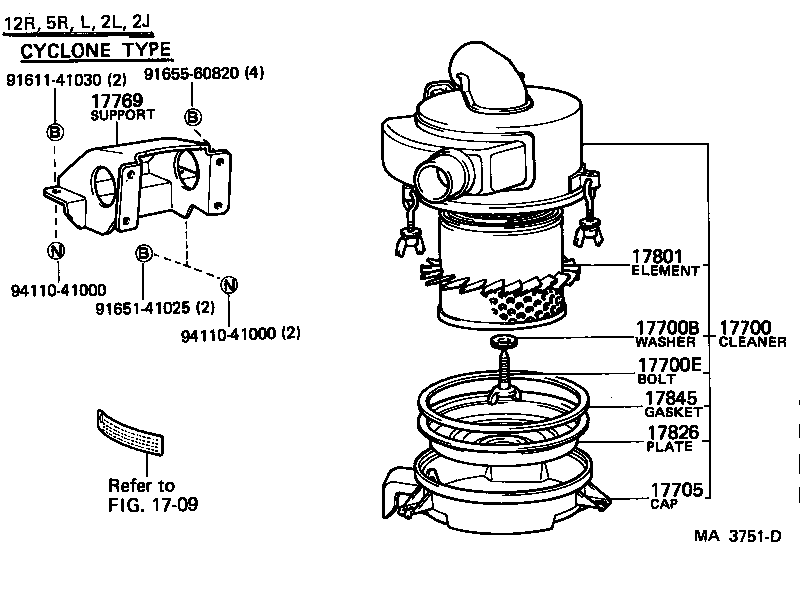

(7903- )2J
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-48110 |
2J..JY30 CYCLONE TYPE |
1 | ||
| 17700-48110 |
2J..JY30 CYCLONE TYPE |
1 | ||
| 17700-48110 |
2J..JY30 CYCLONE TYPE |
1 | ||
| 17700-48120 |
2J..JY30 OIL BATH TYPE |
1 | ||
| 17700-48120 |
2J..JY30 OIL BATH TYPE |
1 | ||
| 17700-48120 |
2J..JY30 OIL BATH TYPE |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-09006 |
2J..JY30 CYCLONE TYPE |
1 | ||
| 90210-09006 |
2J..JY30 CYCLONE TYPE |
1 | ||
| 90210-09006 |
2J..JY30 CYCLONE TYPE |
1 | ||
| 17700E - BOLT, WING(FOR AIR CLEANER) | ||||
| 90122-10002 |
2J..JY30 CYCLONE TYPE |
1 | ||
| 90122-10002 |
2J..JY30 CYCLONE TYPE |
1 | ||
| 90122-10002 |
2J..JY30 CYCLONE TYPE |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17703-48010 |
2J..JY30 CYCLONE TYPE |
1 | ||
| 17703-48010 |
2J..JY30 CYCLONE TYPE |
1 | ||
| 17703-48010 |
2J..JY30 CYCLONE TYPE |
1 | ||
| 17769 - SUPPORT, AIR CLEANER | ||||
| 17769-54010 |
2J..JY30 |
1 | ||
| 17769-54010 |
2J..JY30 |
1 | ||
| 17769-54010 |
2J..JY30 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-54020 |
2J..JY30 CYCLONE TYPE |
1 | ||
| 17801-54020 |
2J..JY30 CYCLONE TYPE |
1 | ||
| 17801-54020 |
2J..JY30 CYCLONE TYPE |
1 | ||
| 17801-48030 |
2J..JY30 OIL BATH TYPE |
1 | ||
| 17801-48030 |
2J..JY30 OIL BATH TYPE |
1 | ||
| 17801-48030 |
2J..JY30 OIL BATH TYPE |
1 | ||
| 17826 - PLATE, FILTER ELEMENT BAFFLE | ||||
| 17826-54010 |
2J..JY30 CYCLONE TYPE |
1 | ||
| 17826-54010 |
2J..JY30 CYCLONE TYPE |
1 | ||
| 17826-54010 |
2J..JY30 CYCLONE TYPE |
1 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17846-87301 |
2J..JY30 CYCLONE TYPE |
1 | ||
| 17846-87301 |
2J..JY30 CYCLONE TYPE |
1 | ||
| 17846-87301 |
2J..JY30 CYCLONE TYPE |
1 | ||
| Common parts | ||||
| 91611-41030 | ||||
| 91651-41025 | ||||
| 91655-60820 | ||||
| 94110-41000 | ||||
| Linked diagrams | ||||
| 1709 | ||||
(7903- )2J
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-48110 |
2J..JY30 CYCLONE TYPE |
1 | ||
| 17700-48110 |
2J..JY30 CYCLONE TYPE |
1 | ||
| 17700-48110 |
2J..JY30 CYCLONE TYPE |
1 | ||
| 17700-48120 |
2J..JY30 OIL BATH TYPE |
1 | ||
| 17700-48120 |
2J..JY30 OIL BATH TYPE |
1 | ||
| 17700-48120 |
2J..JY30 OIL BATH TYPE |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08013 |
2J..JY30 OIL BATH TYPE |
1 | ||
| 90175-08013 |
2J..JY30 OIL BATH TYPE |
1 | ||
| 90175-08013 |
2J..JY30 OIL BATH TYPE |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17702-48020 |
2J..JY30 OIL BATH TYPE |
1 | ||
| 17702-48020 |
2J..JY30 OIL BATH TYPE |
1 | ||
| 17702-48020 |
2J..JY30 OIL BATH TYPE |
1 | ||
| 17769 - SUPPORT, AIR CLEANER | ||||
| 17769-54010 |
2J..JY30 |
1 | ||
| 17769-54010 |
2J..JY30 |
1 | ||
| 17769-54010 |
2J..JY30 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-54020 |
2J..JY30 CYCLONE TYPE |
1 | ||
| 17801-54020 |
2J..JY30 CYCLONE TYPE |
1 | ||
| 17801-54020 |
2J..JY30 CYCLONE TYPE |
1 | ||
| 17801-48030 |
2J..JY30 OIL BATH TYPE |
1 | ||
| 17801-48030 |
2J..JY30 OIL BATH TYPE |
1 | ||
| 17801-48030 |
2J..JY30 OIL BATH TYPE |
1 | ||
| Common parts | ||||
| 90201-09004 | ||||
| 90204-08002 | ||||
| 91611-41028 | ||||
| 91651-41025 | ||||
| 91655-60820 | ||||
| 94110-41000 | ||||
| Linked diagrams | ||||
| 1709 | ||||
