JY30R-QDBH (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 2J
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

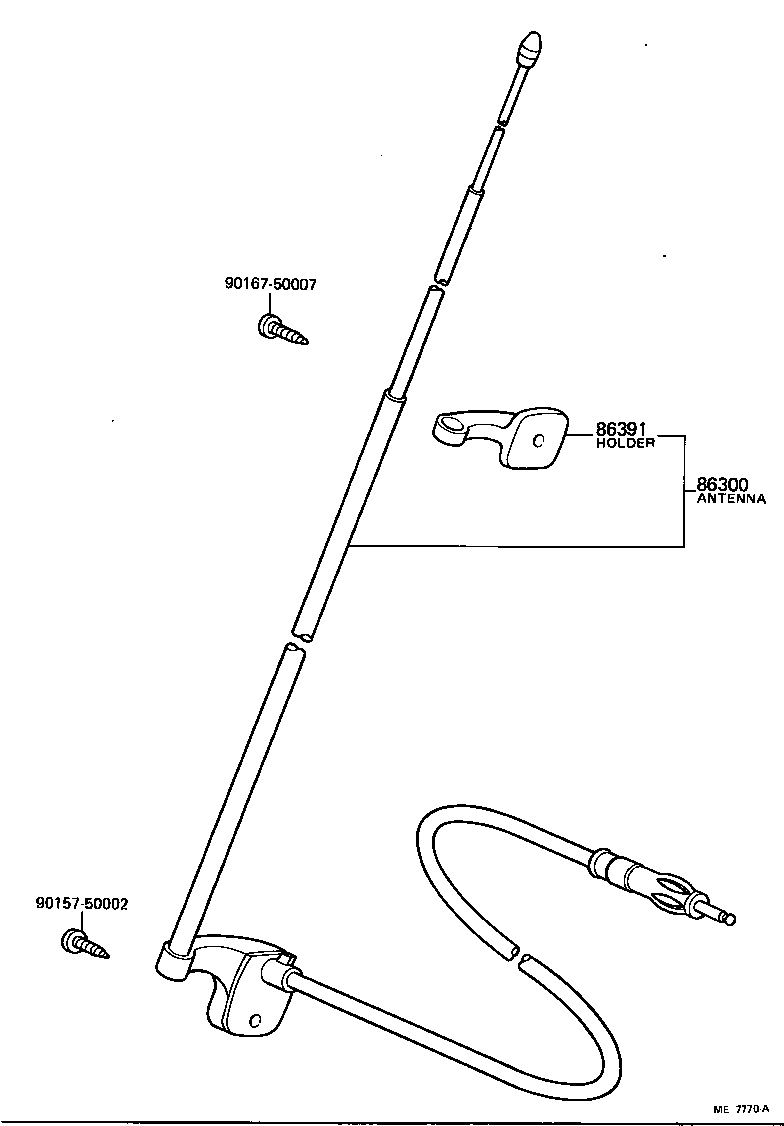

Click highlighted areas on diagram

diagram 86300 86391 9015750002 9016750007
Part # Description Qty Price
86300 - ANTENNA ASSY, W/HOLDER
86300-95400

JY30,LY20,3#,RY20,3#..RHD

 1
86391 - HOLDER, ANTENNA
86391-95400

JY30,LY20,3#,RY20,3#

 1
Common parts
90157-50002
90167-50007
