JY30R-QDBH (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 2J
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

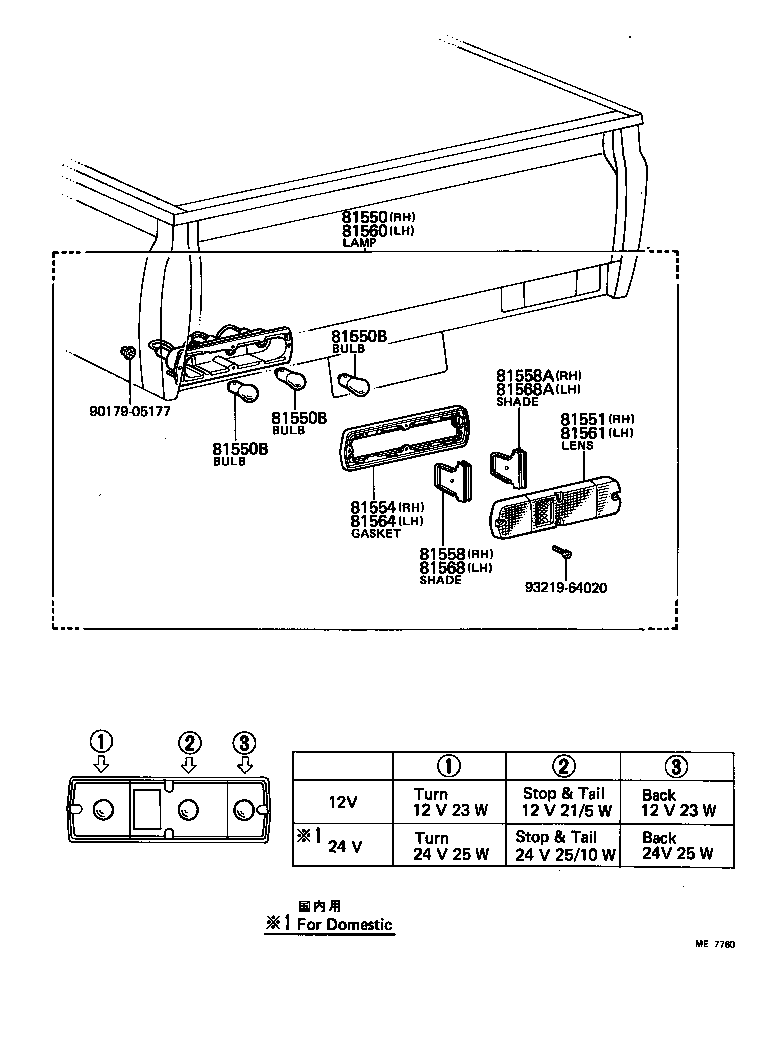

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81551 81554 81558 81558A 81560 81561 81564 81568 81568A 9017905177 9321964020
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-29925

JY30,LY20,3#,RY20,3#

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

JY30,LY20,3#,RY20,3#

12V 21/5W,12V 21/5W

 2
99132-11230

JY30,LY20,3#,RY20,3#

12V 23W,12V 23W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

JY30,LY20,3#,RY20,3#

12V 21/5W,12V 21/5W

 2
99132-11230

JY30,LY20,3#,RY20,3#

12V 23W,12V 23W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

JY30,LY20,3#,RY20,3#

12V 21/5W,12V 21/5W

 2
99132-11230

JY30,LY20,3#,RY20,3#

12V 23W,12V 23W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-25060

JY30,LY20,3#,RY20,3#

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81552-25060

JY30,LY20,3#,RY20,3#

 1
81558 - SHADE, REAR COMBINATION LAMP, NO.1 RH
81557-25060

JY30,LY20,3#,RY20,3#

 1
81558A - SHADE, REAR COMBINATION LAMP, NO.2 RH
81557-25060

JY30,LY20,3#,RY20,3#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-80019

JY30,LY20,3#,RY20,3#

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-25040

JY30,LY20,3#,RY20,3#

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81562-25040

JY30,LY20,3#,RY20,3#

 1
81568 - SHADE, REAR COMBINATION LAMP, NO.1 LH
81557-25060

JY30,LY20,3#,RY20,3#

 1
81568A - SHADE, REAR COMBINATION LAMP, NO.2 LH
81557-25060

JY30,LY20,3#,RY20,3#

 1
Common parts
90179-05177
93219-64020
